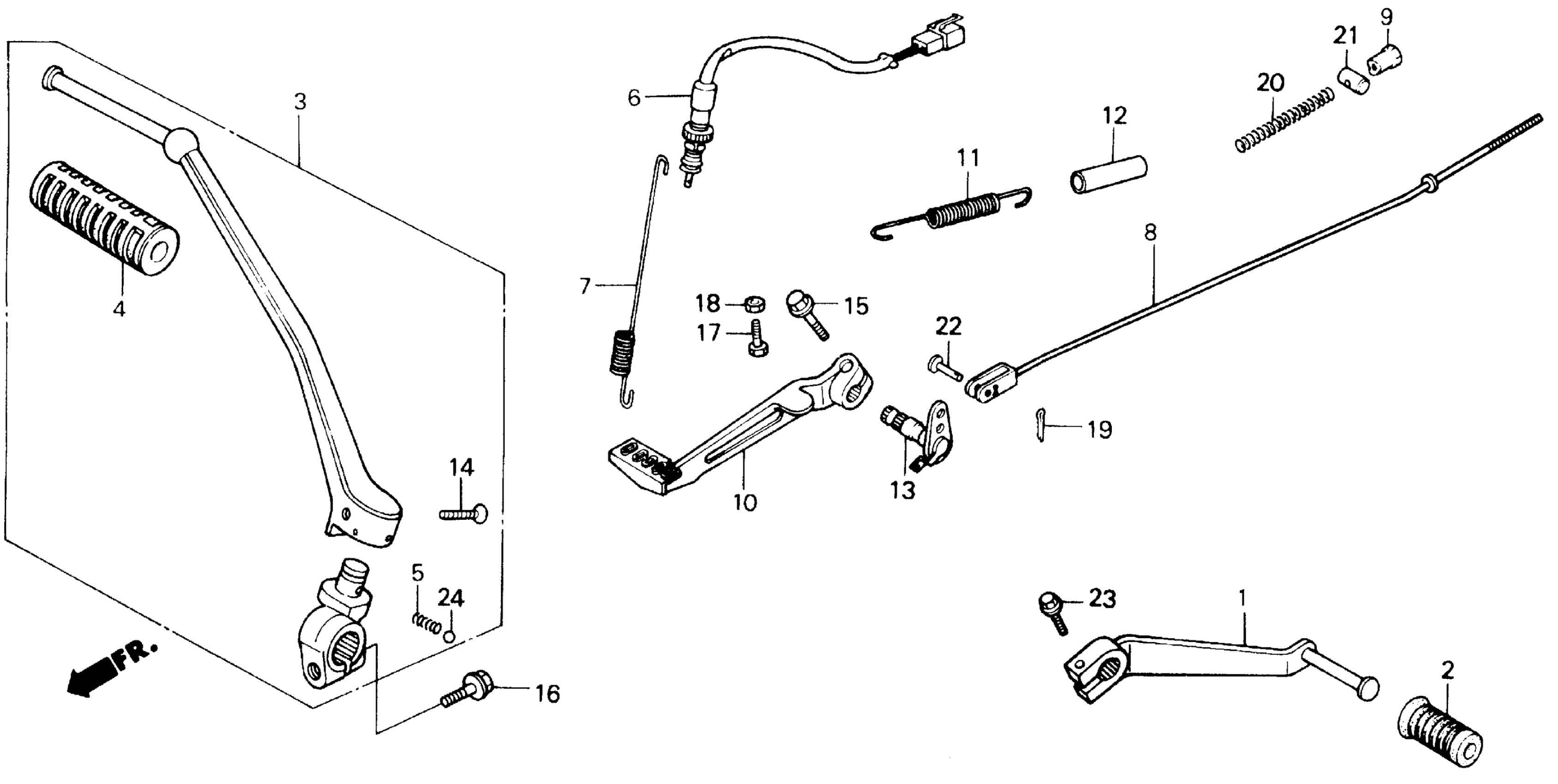

Honda GB500A (90) TOURIST TROPHY, JPN, VIN# JH2PC160-LK100001 PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24701-KN8-000

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.39

3

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-KN8-000

Unavailable

4

RUBBER, KICK STARTER

28311-342-000

$6.71

5

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

6

SWITCH ASSY., RR. STOP This part replaces 35350-KM7-912.

35350-MK3-405

$18.15

6

SWITCH ASSY., RR. STOP

35350-MK3-405

$18.15

7

SPRING, STOP SWITCH This part replaces 35357-MK4-000.

35357-413-000

Unavailable

8

ROD, RR. BRAKE (NOT AVAILABLE)

43451-MK4-000

Unavailable

9

NUT, BRAKE ADJUSTING This part replaces 43459-KA3-710.

43459-434-000

$15.27

9

NUT, BRAKE ADJUSTING

43459-434-000

$15.27

10

PEDAL, RR. BRAKE (NOT AVAILABLE)

46500-KN8-730

Unavailable

11

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-KM3-000

Unavailable

12

TUBE, BRAKE PEDAL SPRING (NOT AVAILABLE)

46514-MK4-000

Unavailable

13

ARM, MIDDLE (NOT AVAILABLE)

46515-MK4-000

Unavailable

14

BOLT, KICK ARM

90101-329-000

$3.67

15

BOLT, COMBINATION SWITCH SETTING (NOT AVAILABLE) This part replaces 90106-KR0-000.

90105-MC7-000

Unavailable

16

BOLT, FLANGE (8X28) This part replaces 90215-KF0-000.

96400-08028-00

$1.85

16

BOLT, FLANGE (8X28)

96400-08028-00

$1.85

17

BOLT, HEX. (6X18)

92101-06018-0A

$1.49

18

NUT, HEX. (6MM)

94002-06000-0S

$1.49

19

PIN, SPLIT (1.6X12)

94201-16120

$1.49

20

SPRING A, BRAKE ROD

95014-73100

$1.49

20

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

21

JOINT B, BRAKE ARM

95015-32001

$1.49

22

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

23

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

23

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

24

BALL, STEEL (#9) (9/32)

96211-09000

$1.49
