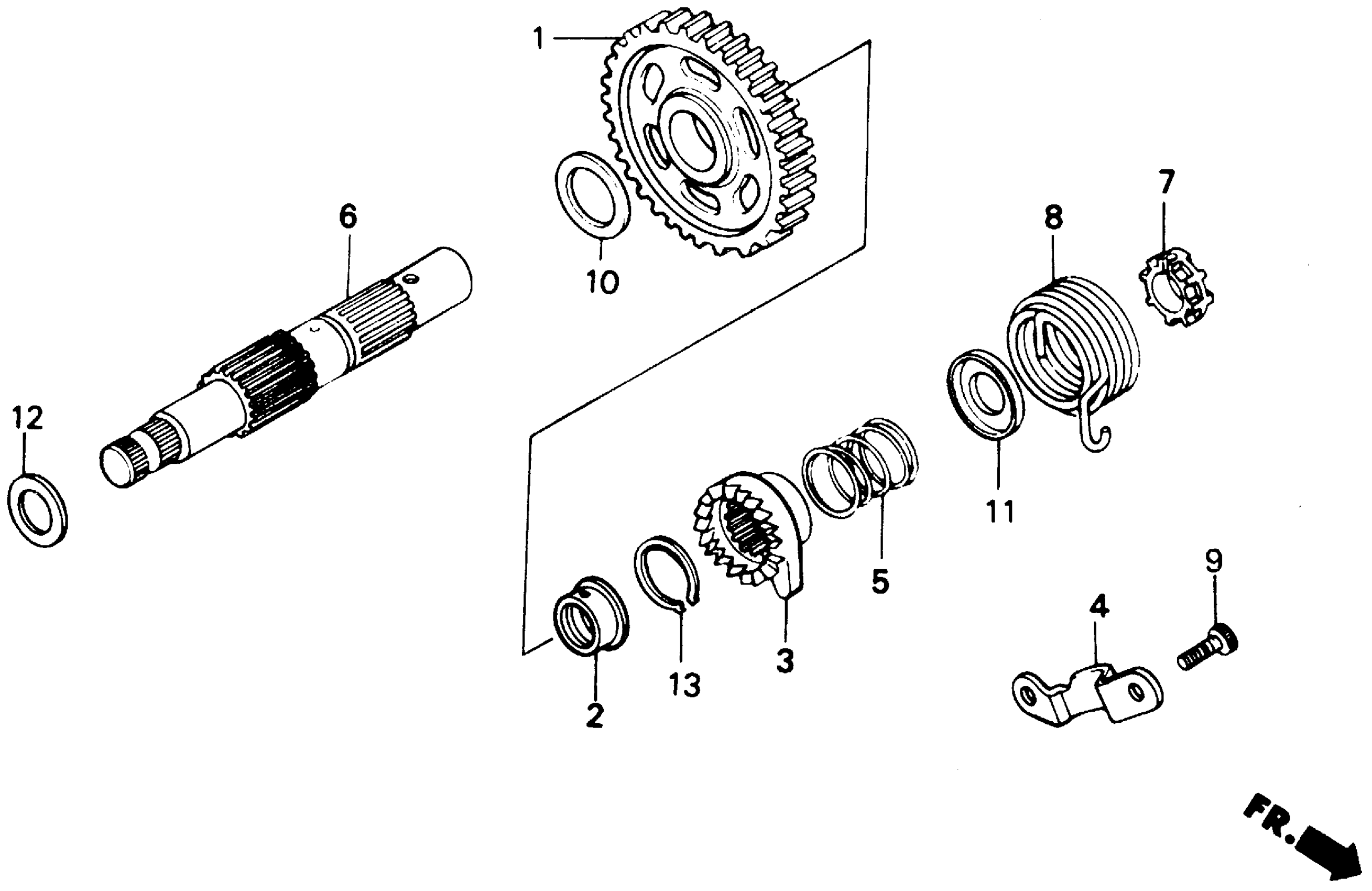

Honda GB500A (90) TOURIST TROPHY, JPN, VIN# JH2PC160-LK100001 KICK STARTER SPINDLE Diagram

PINION, ONLY KICK (36T) (NOT AVAILABLE)

28211-ML6-770

Unavailable

COLLAR, KICK START (NOT AVAILABLE)

28212-MK2-680

Unavailable

RATCHET, KICK STARTER (NOT AVAILABLE)

28213-KF0-010

Unavailable

PLATE, KICK STOPPER

28215-MK2-000

Unavailable

SPRING, KICK STARTER RATCHET (NOT AVAILABLE)

28223-KF0-004

Unavailable

SPINDLE, KICK STARTER (NOT AVAILABLE)

28250-MG3-000

Unavailable

COLLAR, KICK STARTER

28255-MG3-010

Unavailable

SPRING, KICK STARTER

28261-MK2-000

$13.29

BOLT, SOCKET (8X20)

90131-MA7-000

Unavailable

WASHER, THRUST (22X40X1) (NOT AVAILABLE)

90452-VM0-000

Unavailable

WASHER, KICK RATCHET SPRING

90501-KF0-000

$6.74

WASHER, THRUST (20MM)

90454-428-000

$2.53

WASHER, THRUST (20X1.00) This part replaces 90554-700-000.

90454-428-000

$2.53

CIRCLIP (22MM)

90601-329-000

$2.67
