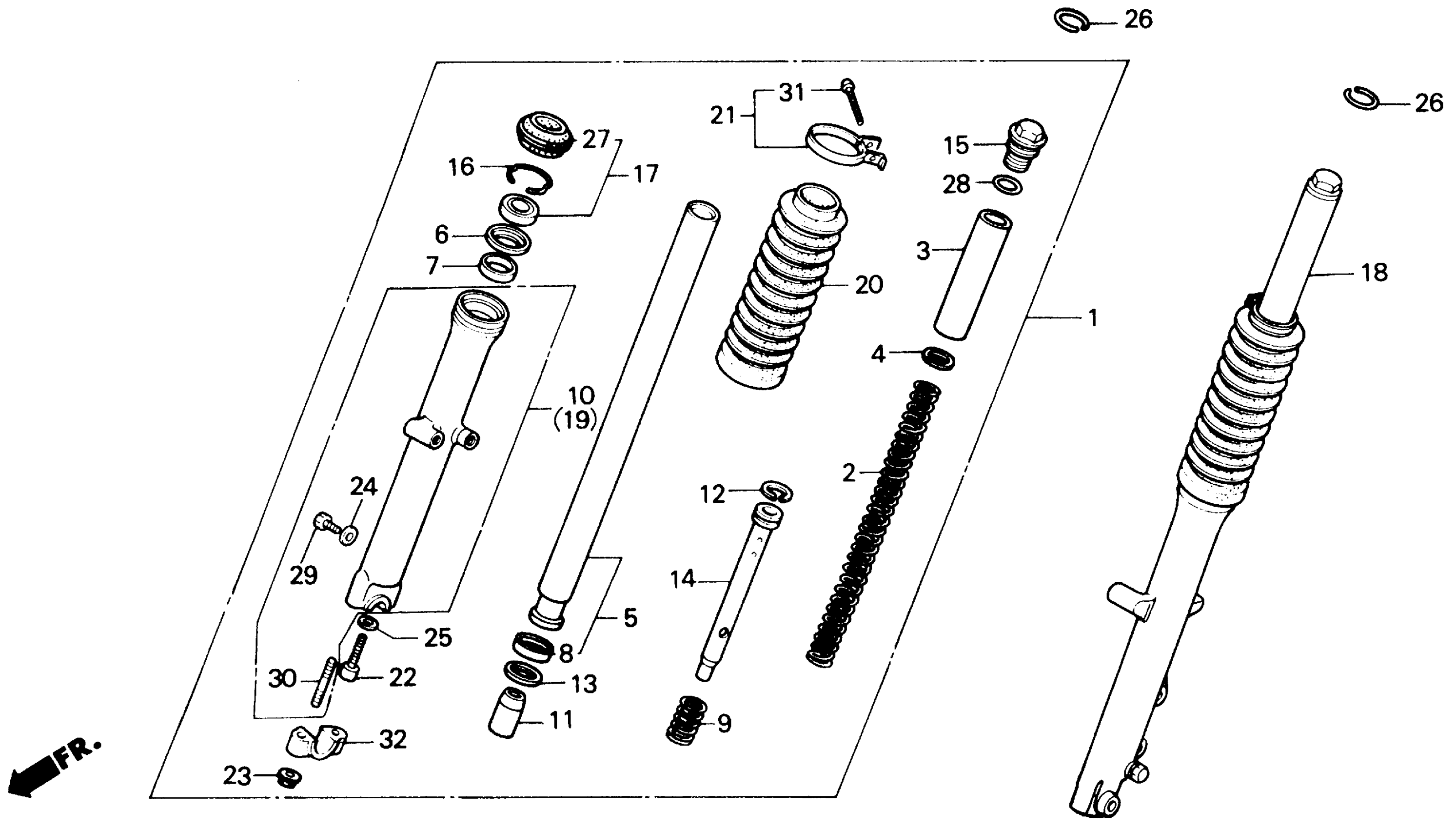

Honda GB500A (90) TOURIST TROPHY, JPN, VIN# JH2PC160-LK100001 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-MK6-671

Unavailable

2

SPRING, FR. FORK (NOT AVAILABLE)

51401-MK6-671

Unavailable

3

COLLAR, SPRING (SOURCE: VINTAGE PARTS INC.)

51402-MK6-671

Unavailable

4

PLATE, SPRING JOINT (NOT AVAILABLE)

51403-430-000

Unavailable

5

PIPE, FR. FORK (NOT AVAILABLE)

51410-MK6-671

Unavailable

6

RING, BACK-UP

51412-422-003

$7.49

7

BUSH, GUIDE This part replaces 51414-469-003.

51414-MBV-711

$19.63

8

BUSH, SLIDER This part replaces 51415-KL4-951.

51415-MBV-711

$17.77

9

SPRING, REBOUND

51416-461-003

$5.80

10

CASE, R. (LOWER) (NOT AVAILABLE)

51420-KN8-013

Unavailable

11

PIECE, OIL LOCK (NOT AVAILABLE)

51432-MK6-671

Unavailable

12

RING, PISTON

51437-461-003

$9.59

13

RING, PISTON STOPPER (NOT AVAILABLE)

51439-340-300

Unavailable

14

PIPE, SEAT (NOT AVAILABLE)

51440-MK6-671

Unavailable

15

BOLT, FR. FORK (NOT AVAILABLE)

51454-MK4-003

Unavailable

16

RING, OIL SEAL STOPPER This part replaces 51466-375-000.

51447-KL4-951

$4.03

17

SEAL SET, FR. FORK

51490-KBH-305

$27.17

17

SEAL SET, FR. FORK This part replaces 51490-MA6-315.

51490-KBH-305

$27.17

18

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-MK6-671

Unavailable

19

CASE, L. (LOWER) (NOT AVAILABLE)

51520-KN8-013

Unavailable

20

BOOT, FR.FORK

51611-KN8-003

$55.26

21

BAND, FR. FORK BOOT

51612-428-900

$10.91

21

BAND, FR. FORK BOOT This part replaces 51612-473-000.

51612-428-900

$10.91

22

BOLT, SOCKET (8X27) (SHOWA)

90116-383-721

$5.13

23

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

23

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

24

GASKET, FR. FORK DRAIN PETCOCK

90543-273-000

$2.46

25

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

26

RING, SNAP (NOT AVAILABLE)

90601-KM3-000

Unavailable

27

DUST SEAL (35MM) (SHOWA)

91254-434-003

$13.96

28

O-RING (26.9X2.4) (NOK)

91302-PF0-003

$2.92

28

O-RING (26.9X2.4) (NOK) This part replaces 91356-MK4-003.

91302-PF0-003

$2.92

29

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

29

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

30

BOLT 2, STUD (8X32) (NOT AVAILABLE)

92900-08032-3E

Unavailable

31

SCREW, PAN (3X20)

93500-03020-0G

$1.49

32

HOLDER 1C, FR. FORK AXLE

95014-41000

$13.38
