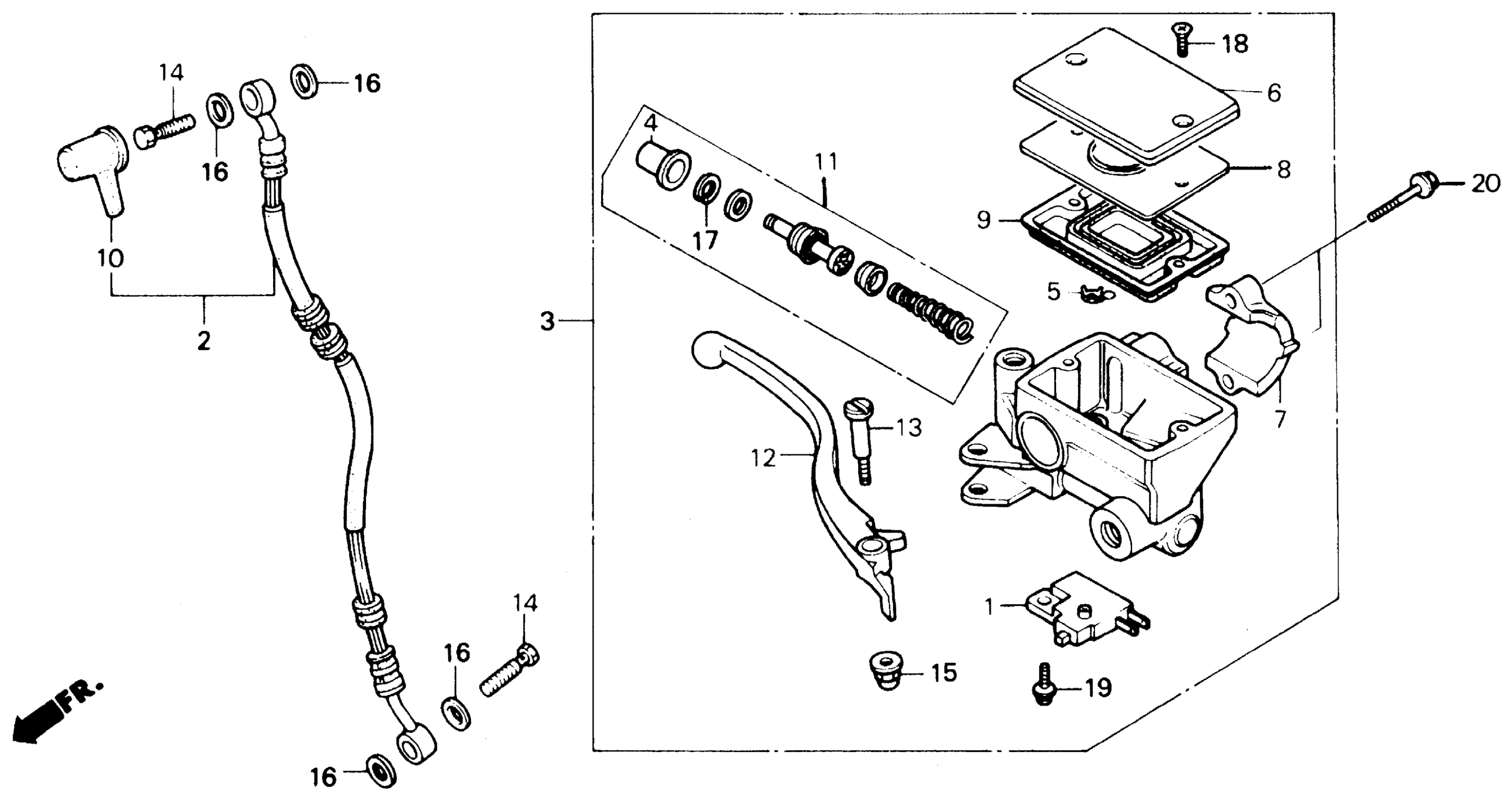

Honda GB500A (90) TOURIST TROPHY, JPN, VIN# JH2PC160-LK100001 FRONT BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP

35340-MA5-671

$21.98

HOSE ASSY., FR. BRAKE (NOT AVAILABLE)

45126-MK6-671

Unavailable

MASTER CYLINDER ASSY., FR. BRAKE (NA USE ALT:45510-KL8-305)

45500-KL8-711

Unavailable

BOOT

45504-410-003

$10.93

PROTECTOR

45512-MA6-006

$3.99

CAP, MASTER CYLINDER (NOT AVAILABLE)

45513-MN0-006

Unavailable

HOLDER, MASTER CYLINDER

45516-KR3-900

$26.30

PLATE, DIAPHRAGM

45518-MB4-671

$10.89

DIAPHRAGM

45520-MA5-672

$16.27

BOOT, MASTER CYLINDER

45522-422-000

$7.79

MASTER CYLINDER SET

45530-471-831

Unavailable

LEVER, R. HANDLE

53175-KM9-006

$19.94

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$8.46

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$9.89

BOLT, OIL (10X22) (SAGA)

90145-KM3-751

$9.89

NUT, CAP (6MM)

90201-415-000

$1.96

WASHER, OIL BOLT

90545-300-000

$3.72

CIRCLIP

90651-MA5-671

$2.38

SCREW, FLAT (4X12)

93600-04012-1A

$0.57

SCREW-WASHER (4X12)

93893-04012-07

$1.22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

BOLT, FLANGE (6X25)

96001-06025-02

$1.26
