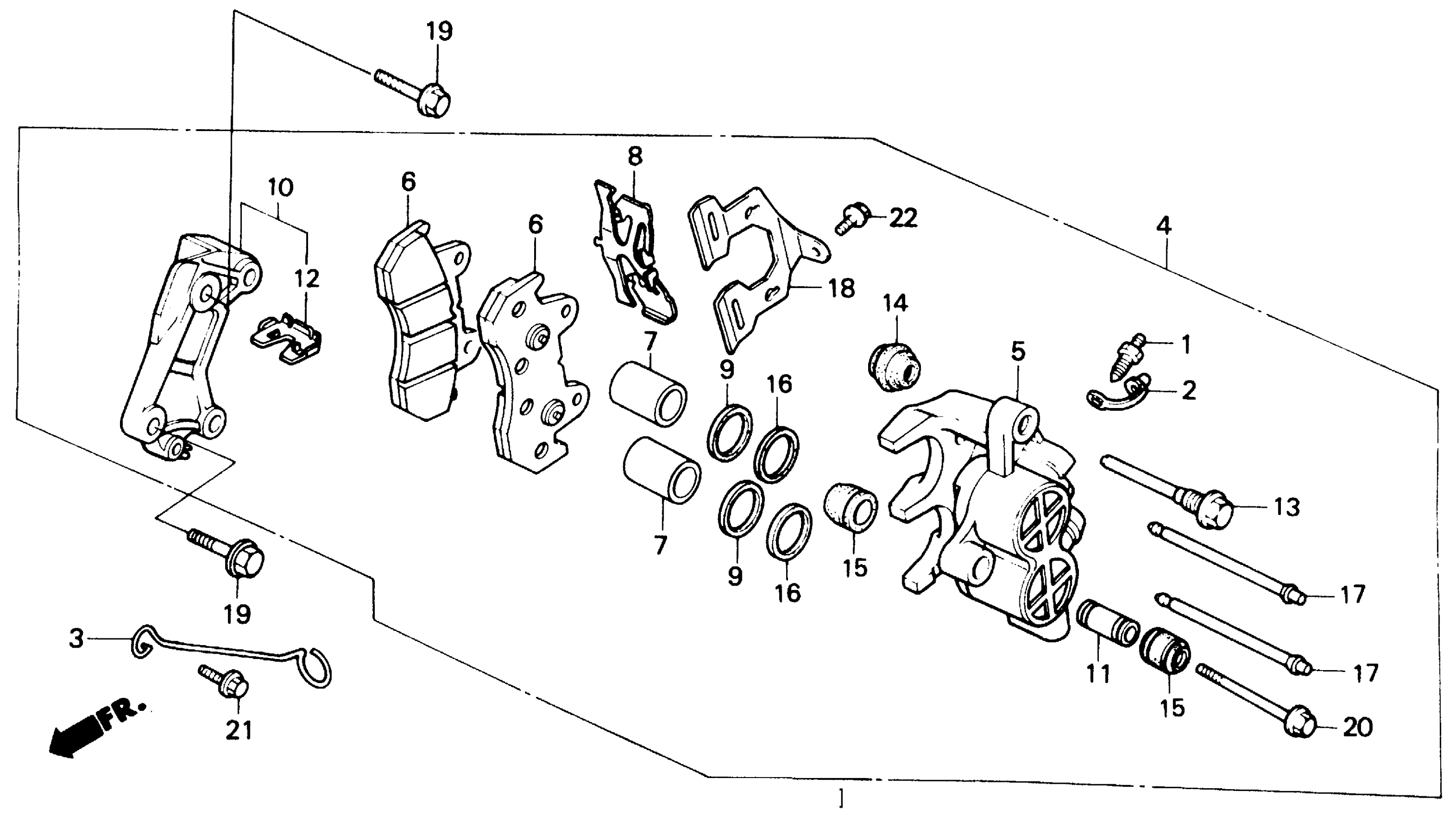

Honda GB500A (90) TOURIST TROPHY, JPN, VIN# JH2PC160-LK100001 FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

BRAKE PAD KIT (NOT AVAILABLE)

451A0-MK6-670

Unavailable

1

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

2

CAP, BLEEDER

43353-461-771

$5.05

3

CLAMP, SPEEDOMETER CABLE

44832-ME2-000

$9.67

4

CALIPER ASSY., L. FR. (NOT AVAILABLE)

45100-MK6-671

Unavailable

5

CALIPER, L. FR. (NOT AVAILABLE)

45101-KL8-711

Unavailable

6

PAD, FR. (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45105-MK6-671

Unavailable

7

PISTON

45107-MA3-006

$50.26

8

SPRING, PAD

45108-MA3-006

$6.28

9

DUST SEAL

45109-166-006

$6.41

10

BRACKET, L. (NOT AVAILABLE)

45110-KN8-731

Unavailable

11

SLEEVE

45111-MA3-006

$13.38

12

RETAINER, BRACKET

45112-445-631

$8.98

13

BOLT, PIN

45131-MA3-006

$17.59

14

BOOT B

45133-MA3-006

$5.46

15

BOOT, PIN

45133-166-016

$3.85

16

SEAL, PISTON

45209-166-006

$8.64

17

PIN, HANGER

45215-MA3-006

$12.77

18

PLATE

45217-MA3-006

$4.45

19

BOLT, FLANGE (10X32) (NOT AVAILABLE)

90110-MK4-000

Unavailable

20

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

20

BOLT, FLANGE (8X49)

90180-MN8-006

$6.07

21

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

21

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

22

BOLT, FLANGE (6X10)

96001-06010-07

$1.62
