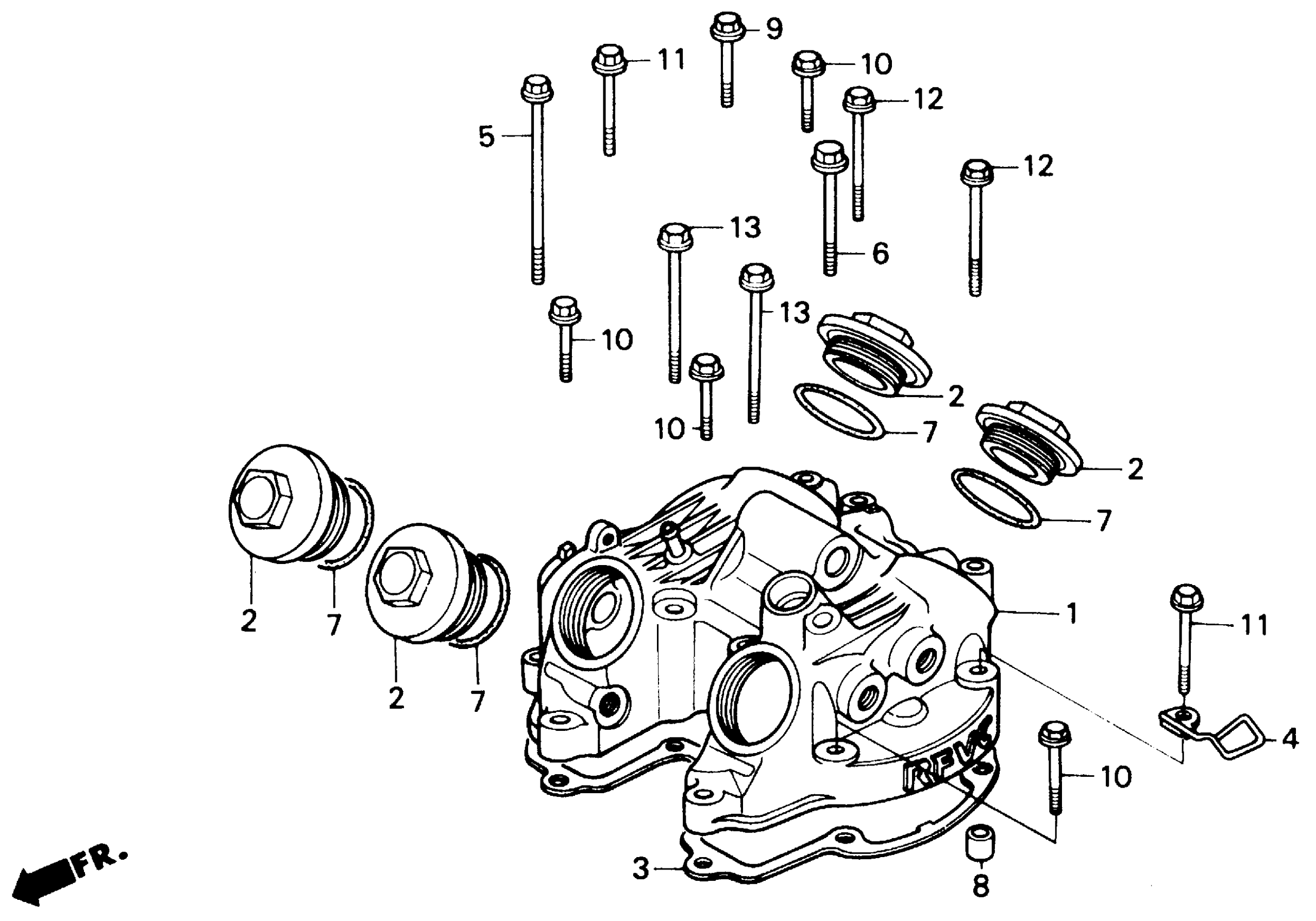

Honda GB500A (90) TOURIST TROPHY, JPN, VIN# JH2PC160-LK100001 CYLINDER HEAD COVER Diagram

#

Description

Price

1

COVER, CYLINDER HEAD (NOT AVAILABLE)

12311-MK6-670

Unavailable

2

CAP, TAPPET ADJUSTING HOLE

12361-KF0-010

$21.68

3

GASKET, HEAD COVER

12391-MG2-790

$50.21

4

CLAMP, CLUTCH CABLE (NOT AVAILABLE)

22875-KN8-730

Unavailable

5

BOLT, FLANGE (6X115)

90025-MK4-600

$7.88

6

BOLT, FLANGE (8X70)

90044-MK4-600

$5.43

7

O-RING (39.5X2.6) This part replaces 91352-MG2-790.

91352-MG2-792

$8.66

7

O-RING (39.5X2.6) This part replaces 91352-MG2-791.

91352-MG2-792

$8.66

7

O-RING (39.5X2.6)

91352-MG2-792

$8.66

8

PIN, DOWEL (8X20)

94301-08200

$2.25

9

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

10

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

11

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

12

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

13

BOLT, FLANGE (6X65)

96001-06065-00

$2.34
