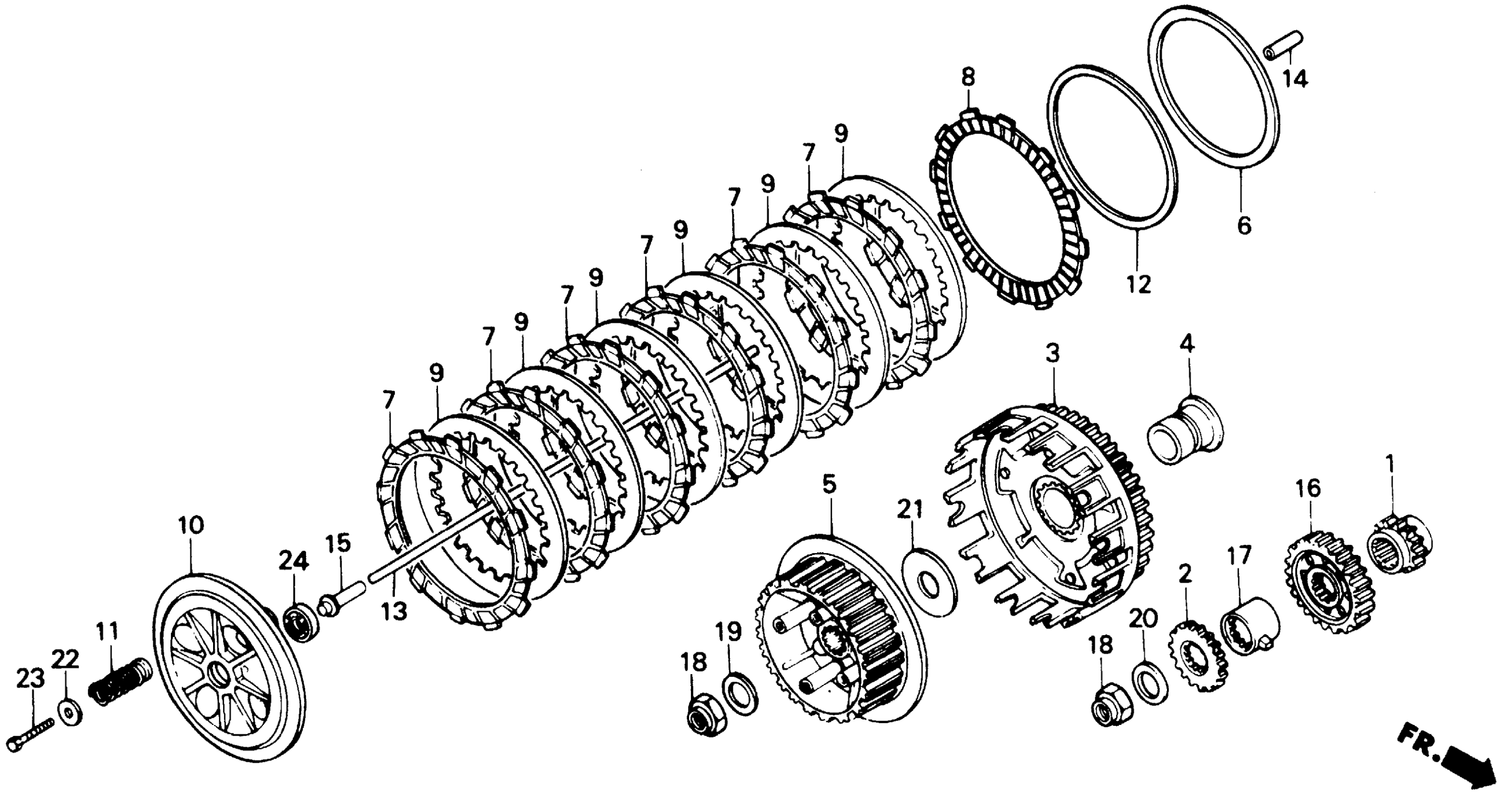

Honda GB500A (90) TOURIST TROPHY, JPN, VIN# JH2PC160-LK100001 CLUTCH Diagram

#

Description
Price

1

SPROCKET, TIMING (19T)

14312-MN1-670

$47.83

2

GEAR, OIL PUMP DRIVE (27T) (NOT AVAILABLE)

15130-MG3-000

Unavailable

3

CLUTCH (OUTER) (NOT AVAILABLE)

22100-KN8-000

Unavailable

4

GUIDE, CLUTCH (OUTER)

22116-MN1-670

$21.56

5

CENTER, CLUTCH (28T)

22120-KN8-000

$136.18

6

SEAT, JUDDER SPRING (NOT AVAILABLE)

22125-MK4-600

Unavailable

7

DISK, CLUTCH FRICTION

22201-MK2-000

$25.24

8

DISK, CLUTCH FRICTION (SOURCE: VINTAGE PARTS INC.)

22201-MK4-600

Unavailable

9

PLATE, CLUTCH

22321-MG3-000

$19.41

10

PLATE, CLUTCH PRESSURE

22350-MG3-000

$95.03

11

SPRING, CLUTCH

22401-MK2-003

$3.81

11

SPRING, CLUTCH This part replaces 22401-MK4-600.

22401-MK2-003

$3.81

12

SPRING, JUDDER (NOT AVAILABLE)

22402-MK4-601

Unavailable

13

ROD, CLUTCH LIFTER

22850-MG3-000

$40.11

14

PIECE, CLUTCH LIFTER ROD

22852-MK5-000

$7.41

15

LIFTER, CLUTCH

22853-KN8-000

$16.84

16

GEAR, PRIMARY DRIVE (29T) (NOT AVAILABLE)

23121-MK4-600

Unavailable

17

BOSS, PULSER (NOT AVAILABLE)

30220-MK4-600

Unavailable

18

NUT, LOCK (18MM)

90236-HA0-000

$10.45

19

WASHER (18MM)

90432-KE5-000

$4.85

20

WASHER, SPECIAL (18MM) This part replaces 90432-MK4-600.

90432-MR1-000

$4.85

20

WASHER, SPECIAL (18MM)

90432-MR1-000

$4.85

21

WASHER, THRUST (22MM)

90452-471-000

$4.76

22

WASHER (6X19) (NOT AVAILABLE)

90481-259-000

Unavailable

23

BOLT, HEX. (6X25)

92025-06025-0A

$1.49

24

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13
