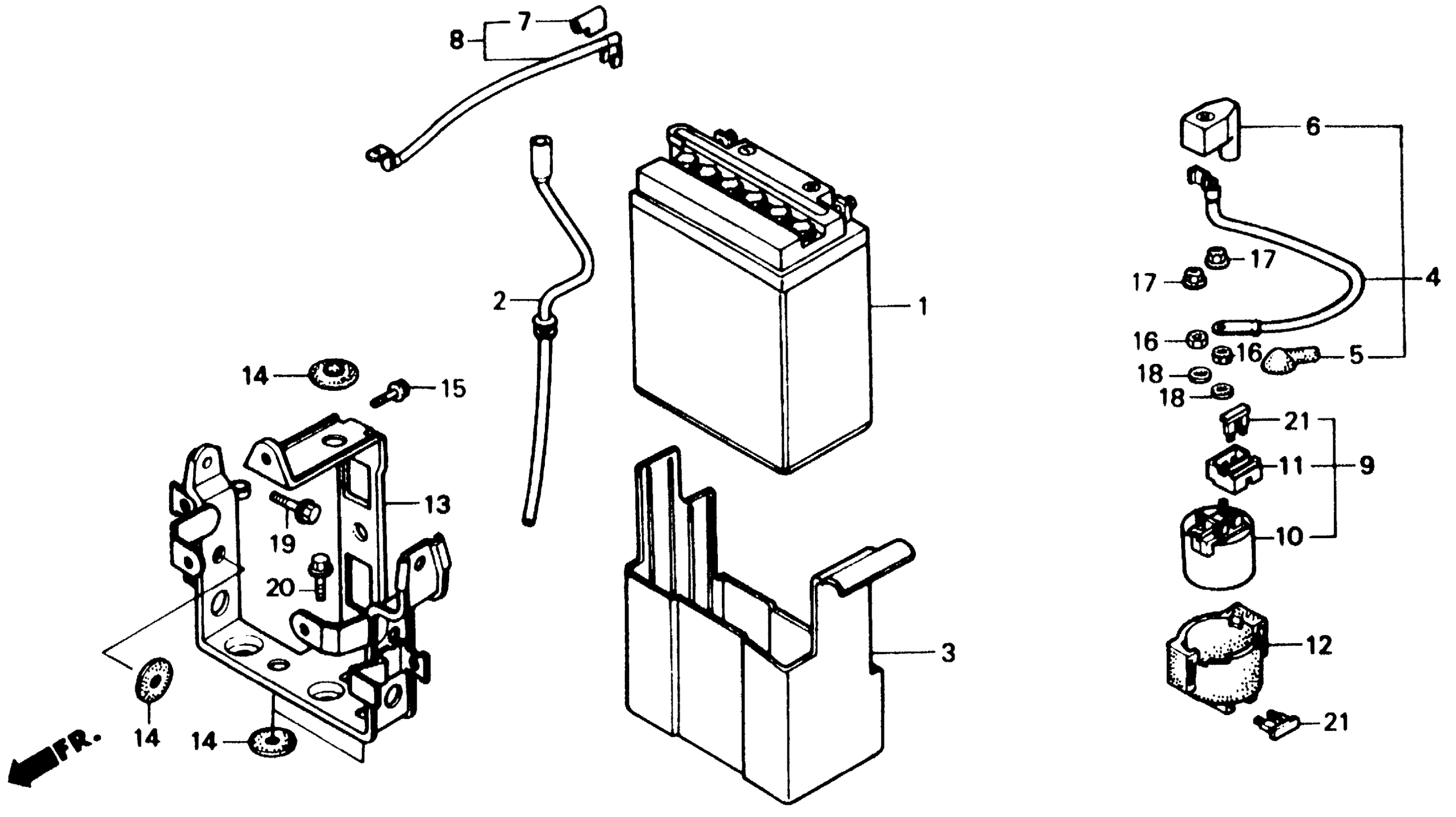

Honda GB500A (90) TOURIST TROPHY, JPN, VIN# JH2PC160-LK100001 BATTERY Diagram

#

Description
Price

1

BATTERY (YB12A-B) (YUASA) This part replaces 31500-ML7-672.

31500-ML7-672AH

Unavailable

1

BATTERY (YB12A-B) (YUASA)

31500-ML7-672AH

Unavailable

2

TUBE, BATTERY BREATHER (NOT AVAILABLE)

31502-KN8-010

Unavailable

3

RUBBER, BATTERY (NOT AVAILABLE)

31521-MK4-000

Unavailable

4

CABLE, STARTER BATTERY (NOT AVAILABLE)

32401-MK4-610

Unavailable

5

COVER A, STARTER MAGNETIC (NOT AVAILABLE)

32404-MK4-000

Unavailable

6

COVER, BATTERY TERMINAL (NOT AVAILABLE)

32411-MB2-000

Unavailable

7

COVER A, BATTERY TERMINAL (NOT AVAILABLE)

32412-MK4-600

Unavailable

8

CABLE, BATTERY GROUND (NOT AVAILABLE)

32601-MK4-600

Unavailable

9

SWITCH ASSY., STARTER MAGNETIC

35850-MF5-751

$140.48

10

SWITCH, STARTER MAGNETIC

35851-MF5-751

$106.43

11

HOLDER ASSY., FUSE

35855-MF5-751

$35.11

12

RUBBER, SHOCK

35856-MF5-751

$10.03

13

TRAY, BATTERY (NOT AVAILABLE)

50320-MK6-670

Unavailable

14

RUBBER, BATTERY BOX

83618-323-000

$2.47

15

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

15

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

16

NUT-WASHER (6MM)

94070-06080

$1.49

17

NUT, FLANGE (6MM)

94050-06080

$1.49

19

BOLT, FLANGE (8X12) This part replaces 95700-08012-07.

95701-08012-07

$1.72

19

BOLT, FLANGE (8X12)

95701-08012-07

$1.72

20

BOLT, FLANGE (8X18) This part replaces 95700-08018-07.

95701-08018-07

$1.49

20

BOLT, FLANGE (8X18)

95701-08018-07

$1.49

21

FUSE, BLADE (30A)

98200-33000

$1.49
