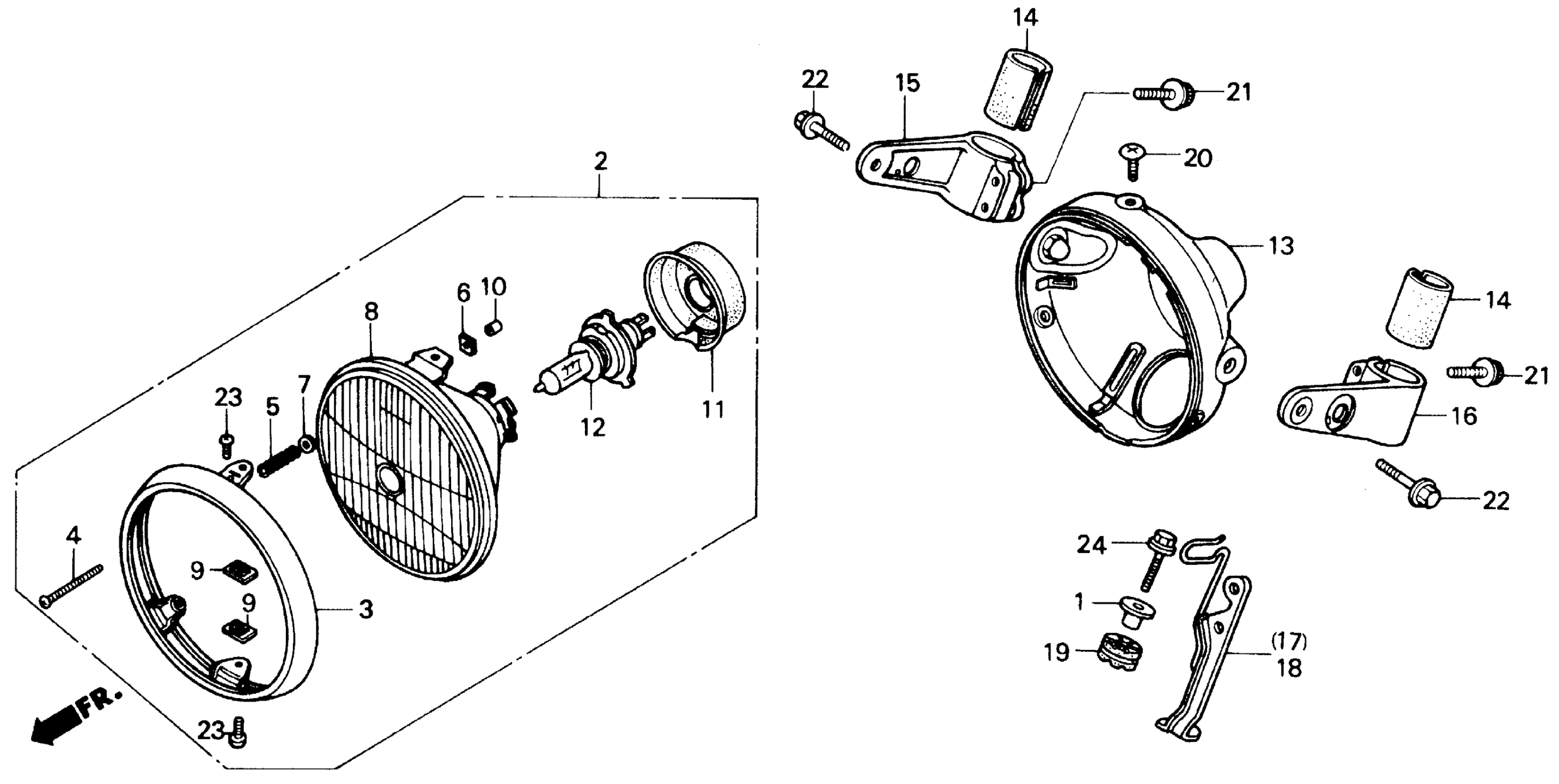

Honda GB500A (89) TOURIST TROPHY, JPN, VIN# JH2PC160-KK000010 TO JH2PC160-KK002492 HEADLIGHT Diagram

COLLAR, FR. COVER SETTING (NOT AVAILABLE)

17535-KB4-000

Unavailable

HEADLIGHT ASSY. (NOT AVAILABLE) This part replaces 33100-KN8-003.

33100-KN8-013

Unavailable

RIM, HEADLIGHT (NOT AVAILABLE)

33101-MG9-661

Unavailable

SCREW, BEAM ADJUSTING

33103-MW3-610

$7.90

SCREW, BEAM ADJUSTING This part replaces 33103-346-670.

33103-MW3-610

$7.90

SPRING, HEADLIGHT BEAM ADJUSTING

33107-300-003

$3.01

NUT, HEADLIGHT BEAM ADJUSTING

33117-001-023

$2.39

WASHER, BEAM ADJUSTING

33119-371-003

$2.84

HEADLIGHT UNIT (NOT AVAILABLE)

33120-KN8-003

Unavailable

NUT, UNIT HOLDER

33128-292-670

$2.94

COVER, SCREW

33136-426-830

$1.89

COVER, RUBBER This part replaces 33180-MC5-003.

33112-MM9-013

$10.09

COVER, RUBBER

33112-MM9-013

$10.09

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601.

34901-MC7-602

$37.18

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601AH.

34901-MC7-602

$37.18

CASE, HEADLIGHT

61301-KN8-000

Unavailable

RUBBER, HEADLIGHT STAY (SOURCE: VINTAGE PARTS INC.)

61311-MK4-000

$13.80

STAY, R. HEADLIGHT (NOT AVAILABLE)

61312-MK6-670

Unavailable

STAY, L. HEADLIGHT (NOT AVAILABLE)

61313-MK6-670

Unavailable

STOPPER, R. HEADLIGHT BRACKET (NOT AVAILABLE)

61314-KN8-000

Unavailable

STOPPER, L. HEADLIGHT BRACKET (NOT AVAILABLE)

61315-KN8-010

Unavailable

RUBBER, TAILLIGHT MOUNTING

84703-425-000

$4.72

SCREW, SPECIAL (5X12)

90001-MG9-670

$4.94

BOLT, SPECIAL FLANGE SOCKET (6X20)

90102-MK4-000

$3.18

BOLT, SPECIAL FLANGE (10X16)

90109-KN8-730

$4.65

SCREW, PAN (5X8)

93500-05008-0H

$1.49

BOLT, FLANGE (6X22) This part replaces 95700-06022-07.

95701-06022-07

$1.49

BOLT, FLANGE (6X22)

95701-06022-07

$1.49
