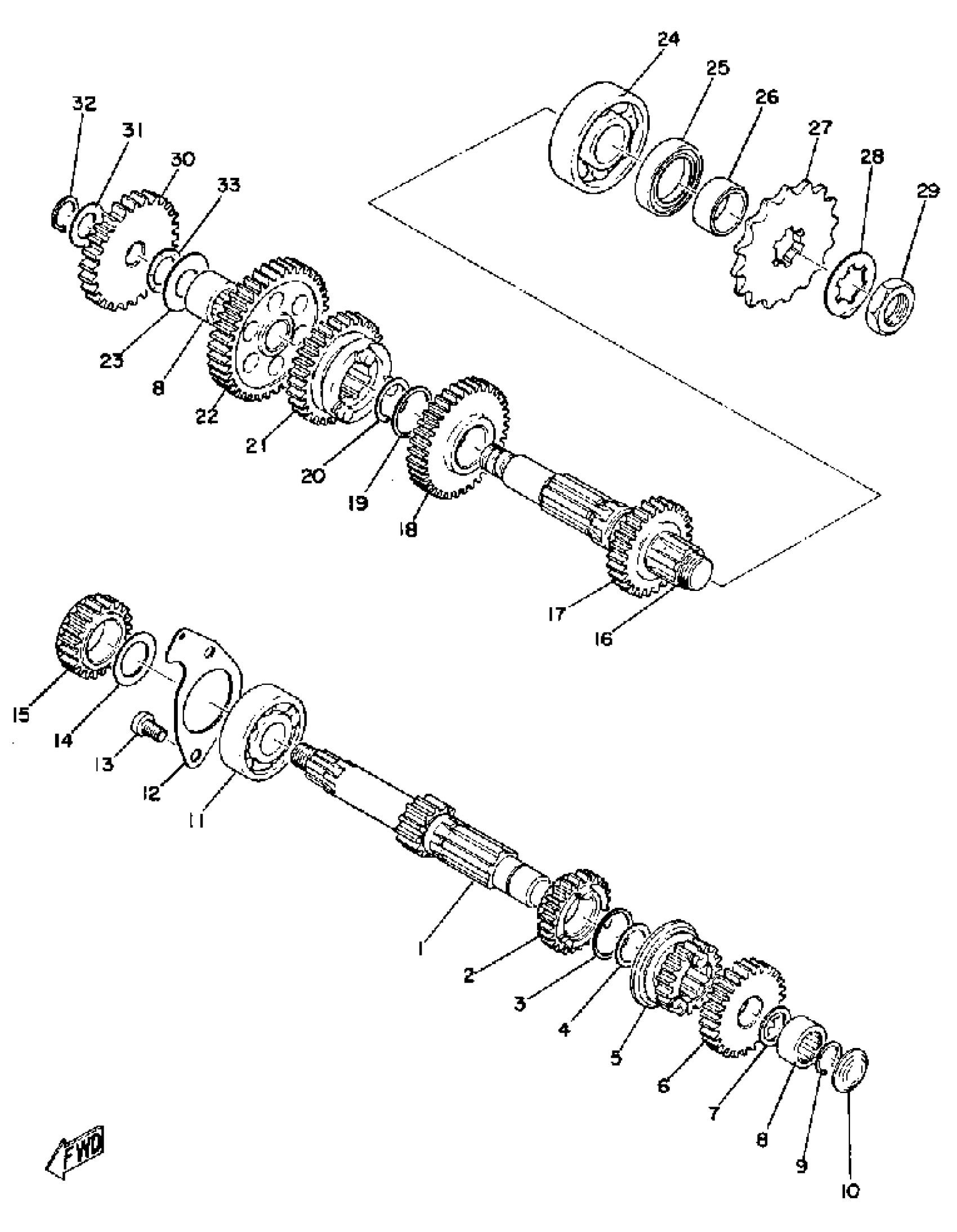

Yamaha G6S (G6S) 1970 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

(164-17411-03-00)

Unavailable

2

GEAR, 3RD PINION

(164-17131-01-00)

Unavailable

3

WASHER PLATE 132172160000

90201-20266-00

$9.49

4

CIRCLIP (525)

93410-20038-00

$3.76

5

GEAR, 2ND PINION

(164-17121-00-00)

Unavailable

6

GEAR, 4TH PINION

(254-17141-00-00)

Unavailable

7

SHIM, MAIN AXLE (1.0)

164-17417-00-10

$7.99

8

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

$36.99

9

CIRCLIP

93440-15012-00

$8.49

10

PLUG, EXPANSION

(90330-24005-00)

Unavailable

11

BRG,R-B 6303 47MM 115G NK

93306-30302-00

$45.99

12

PLATE, COVER

(257-17471-01-00)

Unavailable

13

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

14

PLATE, THRUST

122-16164-00-00

$7.99

15

GEAR, KICK PINION

(254-15631-00-00)

Unavailable

16

DRIVE AXLE ASSEMBLY

(164-17420-02-00)

Unavailable

17

GEAR, 4TH WHEEL

(164-17241-00-00)

Unavailable

18

GEAR, 2ND WHEEL

(164-17221-00-00)

Unavailable

19

WASHER PLATE 132172160000

90201-20266-00

$9.49

20

CIRCLIP (525)

93410-20038-00

$3.76

21

GEAR, 3RD WHEEL

(164-17231-00-00)

Unavailable

22

GEAR, 1ST WHEEL

(164-17211-01-00)

Unavailable

23

SHIM, DRIVE AXLE

164-17427-00-06

Unavailable

24

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

25

OIL SEAL (26X38X5-181)

93102-26042-00

Unavailable

26

COLLAR (525)

90387-20491-00

Unavailable

27

SPROCKET,DRIVE 13T(5171746131)

93812-13022-00

Unavailable

27

SPROCKET,DRIVE 14T(5171746142)

93812-14035-00

Unavailable

27

SPROCKET,DRIVE 15T(5171746152)

93812-15063-00

Unavailable

28

WASHER, LOCK (1L8)

90215-16127-00

Unavailable

29

NUT,SPEC'L SHAPE

90179-16018-00

Unavailable

30

GEAR, KICK IDLE

(180-15651-01-00)

Unavailable

31

WASHER

(132-15653-00-10)

Unavailable

32

CIRCLIP(13M)

99009-13400-00

Unavailable
