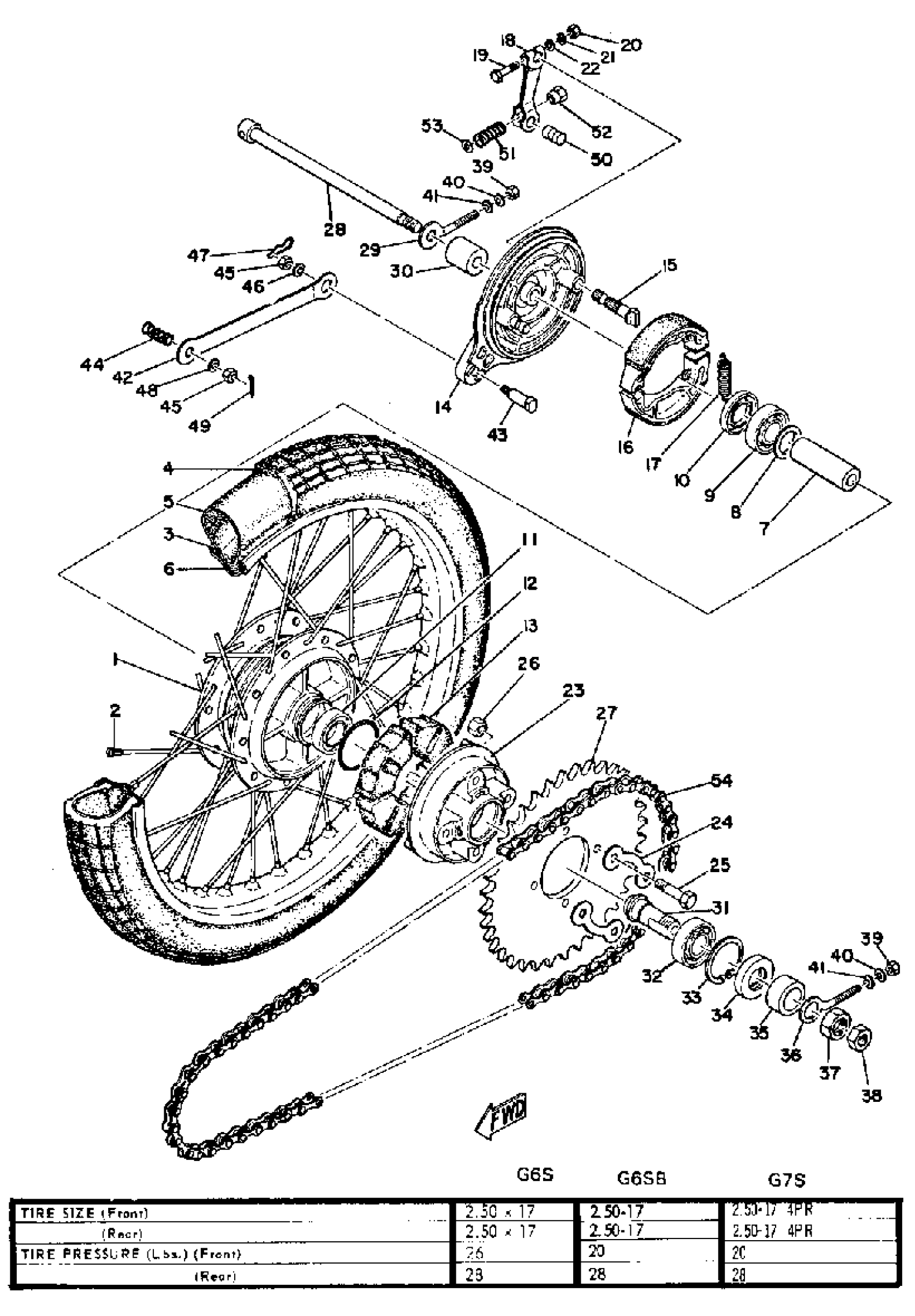

Yamaha G6S (G6S) 1970 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

(132-25311-00-38)

Unavailable

1

JOINT, CHAIN (29A)

94680-52001-00

$3.17

2

SPOKE SET, REAR

(122-25304-00-00)

Unavailable

3

RIM 1.40X17

(94414-17003-00)

Unavailable

4

2.50-17 IRC

(94125-17314-00)

Unavailable

5

TUBE

(94225-17082-00)

Unavailable

6

BAND, RIM (3.25-17) (3Y0)

94332-17112-00

$9.49

7

SPACER

90560-12145-00

$20.99

8

FLANGE, SPACER

109-25315-00-00

$7.99

9

BRG.

93306-30101-00

$36.99

10

OIL SEAL (21X37X7-102)

93104-21016-00

$14.99

11

BEARING

93306-30102-00

$39.99

12

O-RING (102)

93210-41041-00

$7.49

13

DAMPER, CLUTCH

304-25364-01-00

$27.99

14

BRAKE SHOE PLT ASSEMBLY

(339-25320-10-00)

Unavailable

15

CAM SHAFT

122-25351-02-00

Unavailable

16

BRAKE SHOE KIT

4KN-W253E-11-00

Unavailable

17

SPRING, TENSION (566).

90506-16150-00

Unavailable

18

LEVER, CAM SHAFT

122-25355-00-00

Unavailable

19

BOLT, HEXAGON

97017-06030-00

Unavailable

20

NUT, HEXAGON

95380-06600-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

23

CLUTCH, HUB

296-25366-01-33

Unavailable

24

WASHER

4AW-25412-00-00

Unavailable

25

BOLT(1AJ)

90101-08672-00

Unavailable

26

NUT(6L2)

95333-08600-00

Unavailable

27

SPROCKET, DRIVEN (37T)

122-25437-11-00

Unavailable

28

AXLE, WHEEL

(357-25381-00-00)

Unavailable

29

PULLER, CHAIN

3AC-2538G-10-00

Unavailable

30

COLLAR 102253830000

90387-12412-00

Unavailable

31

AXLE, SPROCKET

(102-25387-02-00)

Unavailable

32

BEARING(3BN)

93306-00438-00

Unavailable

33

CIRCLIP(5U8)

99009-42500-00

Unavailable

34

OIL SEAL (30X42X8-102)

93106-30004-00

Unavailable

35

COLLAR

(90387-18143-00)

Unavailable

36

PULLER, CHAIN

4GL-2538A-10-00

Unavailable

37

NUT, HEXAGON

90170-18165-00

Unavailable

38

NUT(3BM)

95314-10600-00

Unavailable

39

NUT, HEXAGON

95380-06600-00

Unavailable

40

WASHER, SPRING

92995-06100-00

Unavailable

41

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

42

BAR, TENSION

(102-25371-00-00)

Unavailable

43

BOLT 1022537300

90109-08183-00

Unavailable

44

SPRING, COMPRESSION

(90501-20129-00)

Unavailable

45

. NUT

95380-08700-00

Unavailable

45

. NUT

95380-08700-00

Unavailable

46

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

47

CLIP (156-83525-00)

90468-10050-00

Unavailable

48

WASHER, PLAIN

92990-08200-00

Unavailable

49

PIN, COTTER

91490-20025-00

Unavailable

50

PIN 1562723700

90249-12008-00

Unavailable

51

SPRING, (180-27236-00)

90501-10245-00

Unavailable

52

NUT (25K)

90179-06411-00

Unavailable

53

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

54

420 100L

(94504-20100-00)

Unavailable

54

420 100L

(94504-20100-00)

Unavailable
