Description

Price

1

REAR ARM

(220-22110-00-62)

Unavailable

1

REAR ARM

(220-22110-00-63)

Unavailable

2

BUSH 1

102-22123-00-00

Unavailable

3

SHAFT, PIVOT

(109-22141-00-00)

Unavailable

4

NUT(3BM)

95314-10600-00

$2.39

5

SEAL, GUARD

(296-22151-01-00)

Unavailable

6

CAP

(180-22117-00-00)

Unavailable

7

CASE, CHAIN

(220-22311-01-35)

Unavailable

8

SCREW, PAN HEAD(3AH)

98507-05006-00

$3.55

9

SCREW, PAN HEAD

98580-05020-00

Unavailable

10

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

11

REAR FOOTREST ASSY

120-27430-02-00

$29.99

12

RR FOOTREST ASSEMBLY 1

(209-27430-01-00)

Unavailable

13

COVER, REAR FOOTREST

120-27433-00-00

$8.99

14

NUT, HEXAGON SMALL

95317-12700-00

$8.49

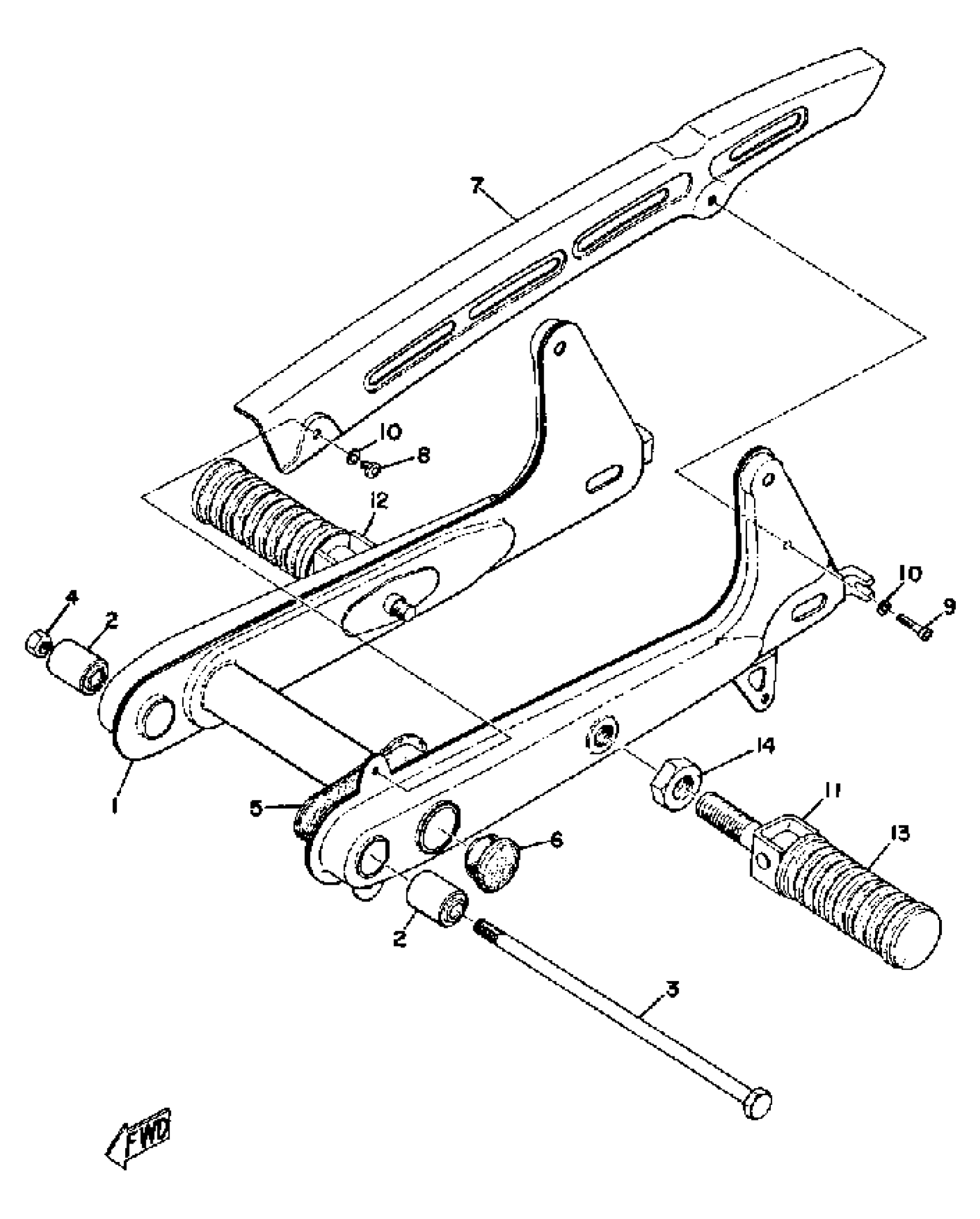

Yamaha G6S (G6S) 1970 REAR ARM - CHAIN CASE Diagram

REAR ARM

REAR ARM

BUSH 1

SHAFT, PIVOT

NUT(3BM)

SEAL, GUARD

CAP

CASE, CHAIN

SCREW, PAN HEAD(3AH)

SCREW, PAN HEAD

YBS67-5 WASHER, SPRING

REAR FOOTREST ASSY

RR FOOTREST ASSEMBLY 1

COVER, REAR FOOTREST

NUT, HEXAGON SMALL
