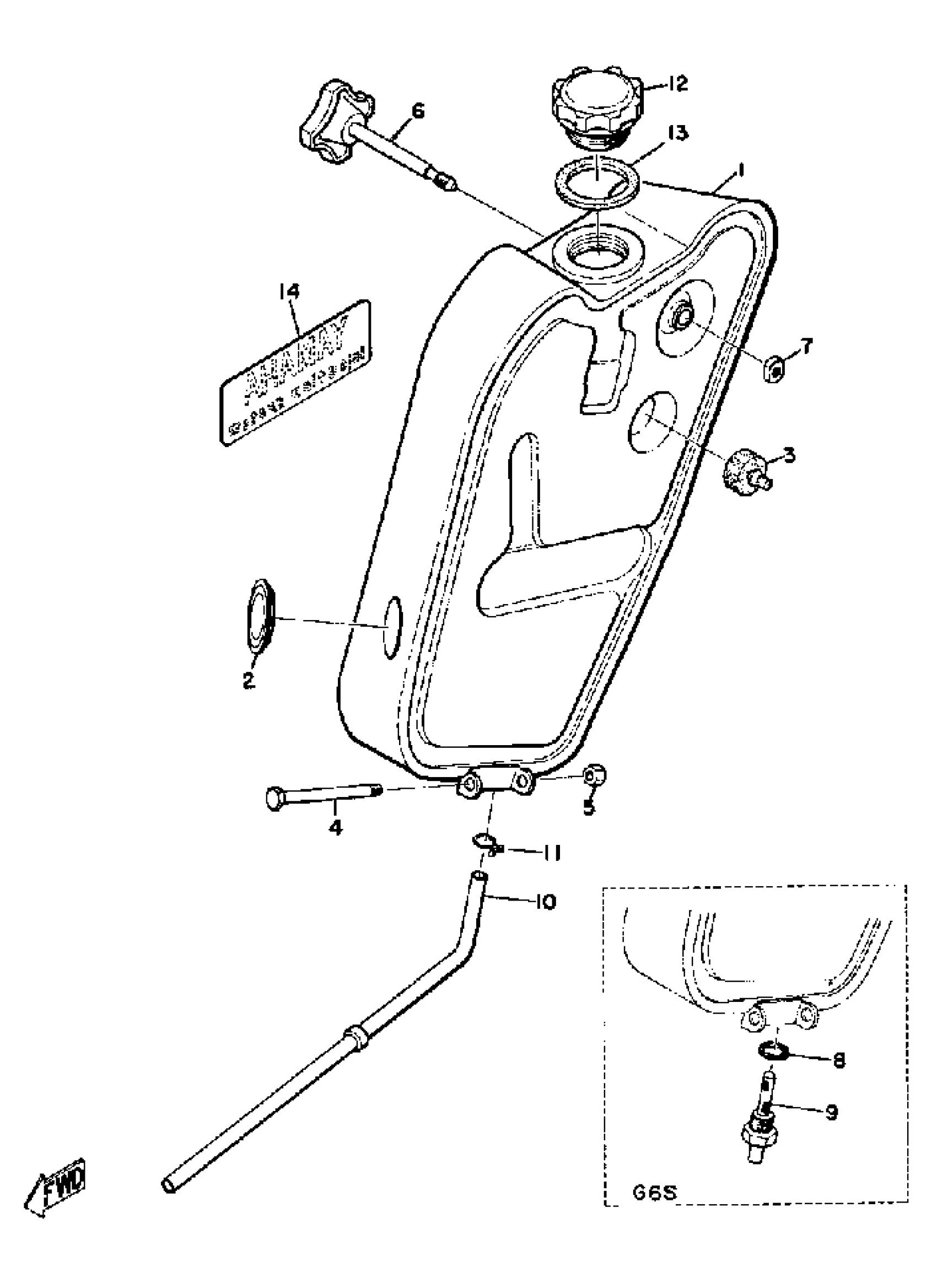

Yamaha G6S (G6S) 1970 OIL TANK Diagram

#

Description

Price

1

OIL TANK ASSEMBLY

(220-21705-01-62)

Unavailable

1

OIL TANK ASSEMBLY

(220-21705-01-63)

Unavailable

1

OIL TANK ASSEMBLY

(220-21705-01-64)

Unavailable

2

GAUGE, LEVEL

214-21761-00-00

Unavailable

3

DAMPER, LOCATING 1

(164-21778-00-00)

Unavailable

4

BOLT

(90101-05001-00)

Unavailable

5

NUT, HEXAGON (663)

95380-05600-00

$8.49

6

KNOB, SIDE COVER(R.H)

209-21724-00-00

Unavailable

7

NUT(650)

95380-06700-00

$8.49

8

GASKET

(90430-10029-00)

Unavailable

9

SCREW, UNION

(137-21768-01-00)

Unavailable

10

PIPE, OIL

(164-24319-00-00)

Unavailable

11

CLIP 101235600

90467-08003-00

$10.49

12

OIL TANK CAP ASSY

183-21770-12-00

Unavailable

13

GASKET 214217720000

90430-29114-00

$8.49

14

EMBLEM 2

(117-21782-00-00)

Unavailable
