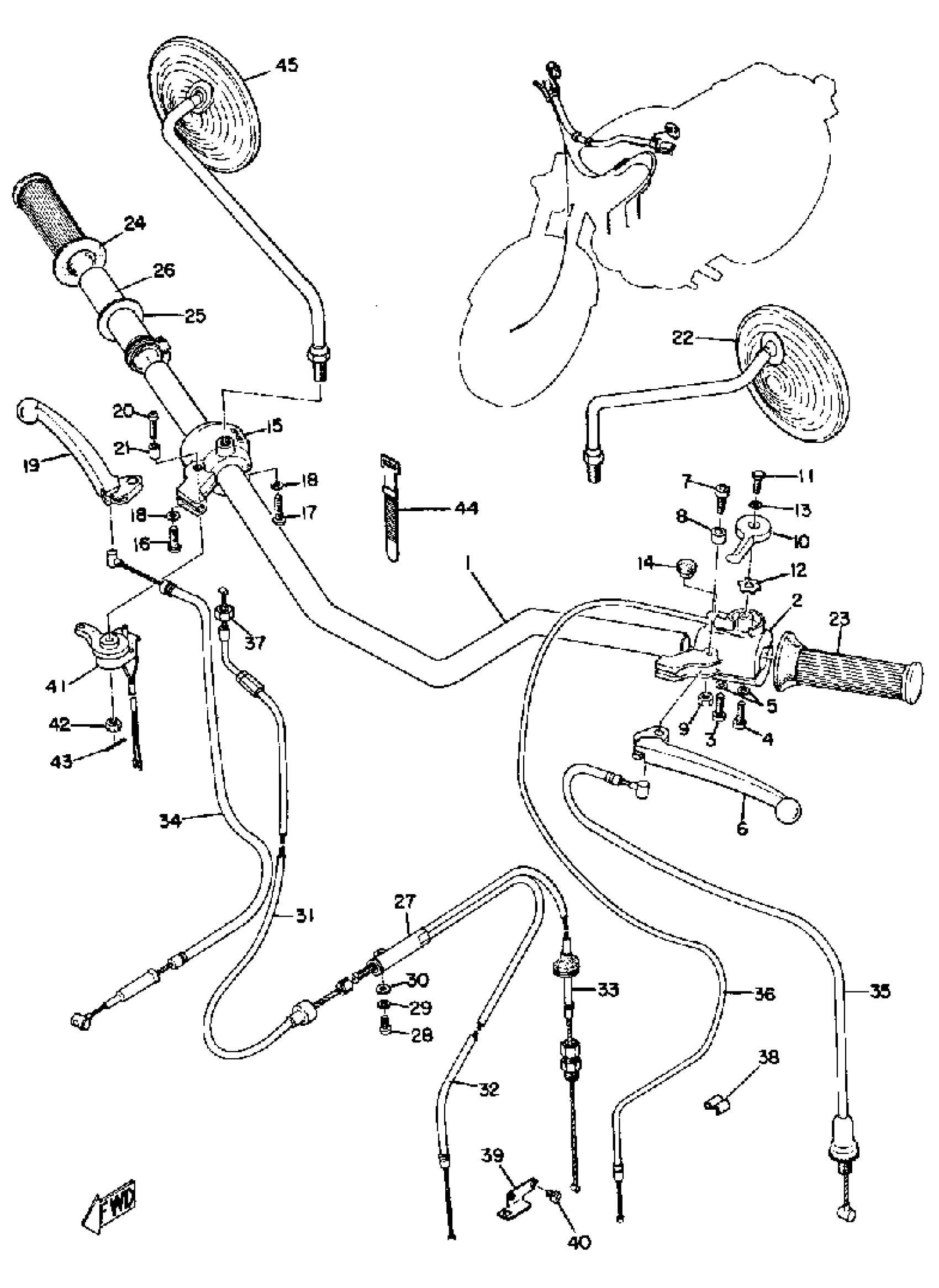

Yamaha G6S (G6S) 1970 HANDLE - WIRE Diagram

#

Description
Price

1

HANDLEBAR

(232-26111-00-00)

Unavailable

2

LEVER HOLDER ASSEMBLY 1

137-82710-11-00

Unavailable

3

SCREW, PAN HEAD

98580-05020-00

Unavailable

4

SCREW, PANHEAD (A93)

98580-05525-00

$2.00

5

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

6

LEVER (L.H)

137-83912-02-38

Unavailable

7

SCREW, PANHEAD (A93)

98580-05525-00

$2.00

8

. COLLAR, LEVER 1

137-83913-01-00

Unavailable

9

NUT, HEXAGON (663)

95380-05600-00

$8.49

10

LEVER, STARTER

137-83941-02-00

Unavailable

11

BOLT (11T)

90101-06576-00

$8.49

12

WASHER (357)

90209-10131-00

$9.49

13

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

14

PLUG (17J)

90338-07124-00

$10.49

15

UNAVAILABLE IN PRICE BOOK

232-83920-31-94

Unavailable

16

SCREW, PAN HEAD

98580-05020-00

Unavailable

17

SCREW, PANHEAD (A93)

98580-05525-00

$2.00

18

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

19

LEVER (R.H)

2N3-83922-00-00

Unavailable

20

SCREW, PAN HEAD

98580-05545-00

Unavailable

21

. COLLAR, LEVER 1

137-83913-01-00

Unavailable

22

3MIRROR ASSEMBLY LH

266-26290-10-00

Unavailable

23

GRIP LH

341-26241-00-00

Unavailable

24

GRIP RH

(137-26242-60-00)

Unavailable

25

UNAVAILABLE IN PRICE BOOK

150-28249-00-00

Unavailable

26

TUBE, GUIDE

1V1-26243-00-00

Unavailable

27

CONNECTOR, CABLE

137-26261-01-00

Unavailable

28

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

29

WASHER, SPRING

92995-06100-00

Unavailable

30

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

31

CABLE, THROTTLE 1

212-26311-02-00

Unavailable

32

CABLE, THROTTLE 2

(207-26312-00-00)

Unavailable

33

CABLE, PUMP

(220-26321-00-00)

Unavailable

34

CABLE, BRAKE

109-26341-01-00

Unavailable

35

WIRE, CLUTCH

124-26335-10-00

Unavailable

36

CABLE, STARTER 1

164-26331-10-00

Unavailable

37

NUT, HEXAGON

90170-10038-00

Unavailable

38

CLIP, WIRE 2072639100

90468-15009-00

Unavailable

39

HOLDER, ADJUSTING

(180-26381-00-00)

Unavailable

40

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

41

FRONT STOP SWITCH ASSY

232-83980-30-00

Unavailable

42

NUT, SLTED

95307-05900-00

Unavailable

43

. PIN, COTTER

91401-12018-00

Unavailable

44

BAND, SWITCH CORD

437-83936-01-00

Unavailable

45

MIRROR ASSEMBLY RH

266-26290-00-00

Unavailable
