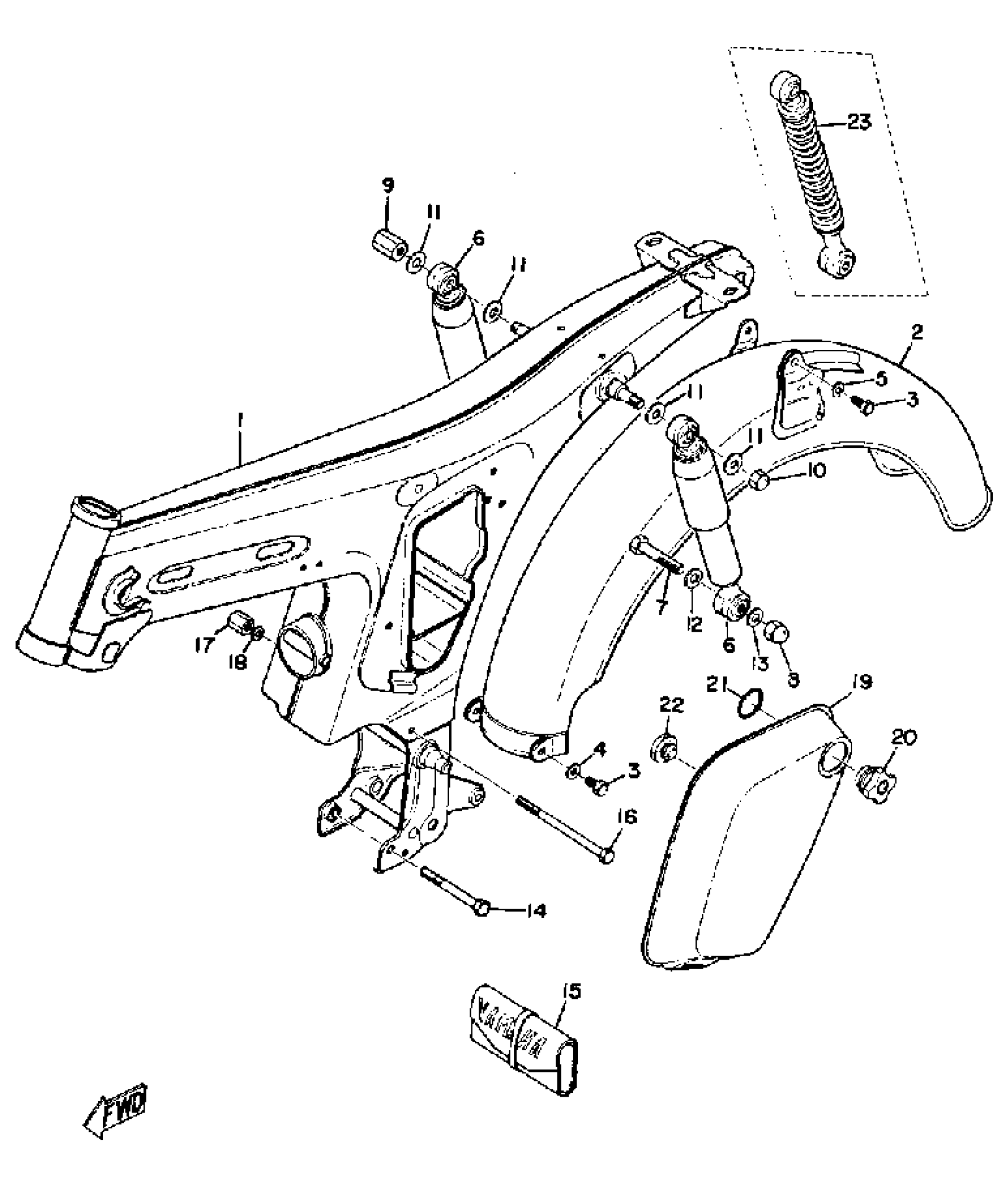

Yamaha G6S (G6S) 1970 FRAME - REAR CUSHION - REAR FENDER Diagram

#

Description
Price

1

FRAME

(207-21110-00-63)

Unavailable

1

FRAME

(207-21110-01-64)

Unavailable

2

FENDER, REAR

(215-21610-00-35)

Unavailable

2

FENDER, REAR

(232-21610-00-35)

Unavailable

3

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

4

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

5

WASHER, SPRING

92995-06100-00

Unavailable

6

SHK/ABS ASSEMBLY, REAR

(220-22210-30-63)

Unavailable

6

SHK/ABS ASSEMBLY, REAR

(220-22210-30-63)

Unavailable

6

SHK/ABS ASSEMBLY, REAR

(220-22210-30-64)

Unavailable

7

BOLT 2

(220-22242-00-00)

Unavailable

8

NUT CROWN(663)

95380-12800-00

Unavailable

9

NUT, HEXAGON

(90170-10050-00)

Unavailable

10

NUT, CROWN (650)

95380-10800-00

Unavailable

11

WASHER, PLATE(3BM)

90201-105R9-00

$9.49

12

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

13

WASHER PLATE 122222440000

90201-12175-00

Unavailable

14

BOLT, HEXAGON (582)

90101-08286-00

Unavailable

15

TOOL KIT

1E7-W2810-00-00

Unavailable

16

BOLT, FLANGE

95817-08115-00

Unavailable

17

NUT, HEXAGON (90170-08034)

90170-08156-00

Unavailable

18

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

19

COVER, SIDE 1

(220-21711-01-33)

Unavailable

19

COVER, SIDE 1

(220-21711-01-33)

Unavailable

19

COVER, SIDE 1

(220-21711-01-63)

Unavailable

19

COVER, SIDE 1

(220-21711-01-K9)

Unavailable

20

KNOB, SIDE COVER 1

102-21714-00-00

Unavailable

21

RING, STOP

(102-21718-00-00)

Unavailable

22

DAMPER, SIDE COVER

141-21717-00-00

Unavailable

23

SHK/ABS ASSEMBLY, REAR

(220-22210-20-00)

Unavailable
