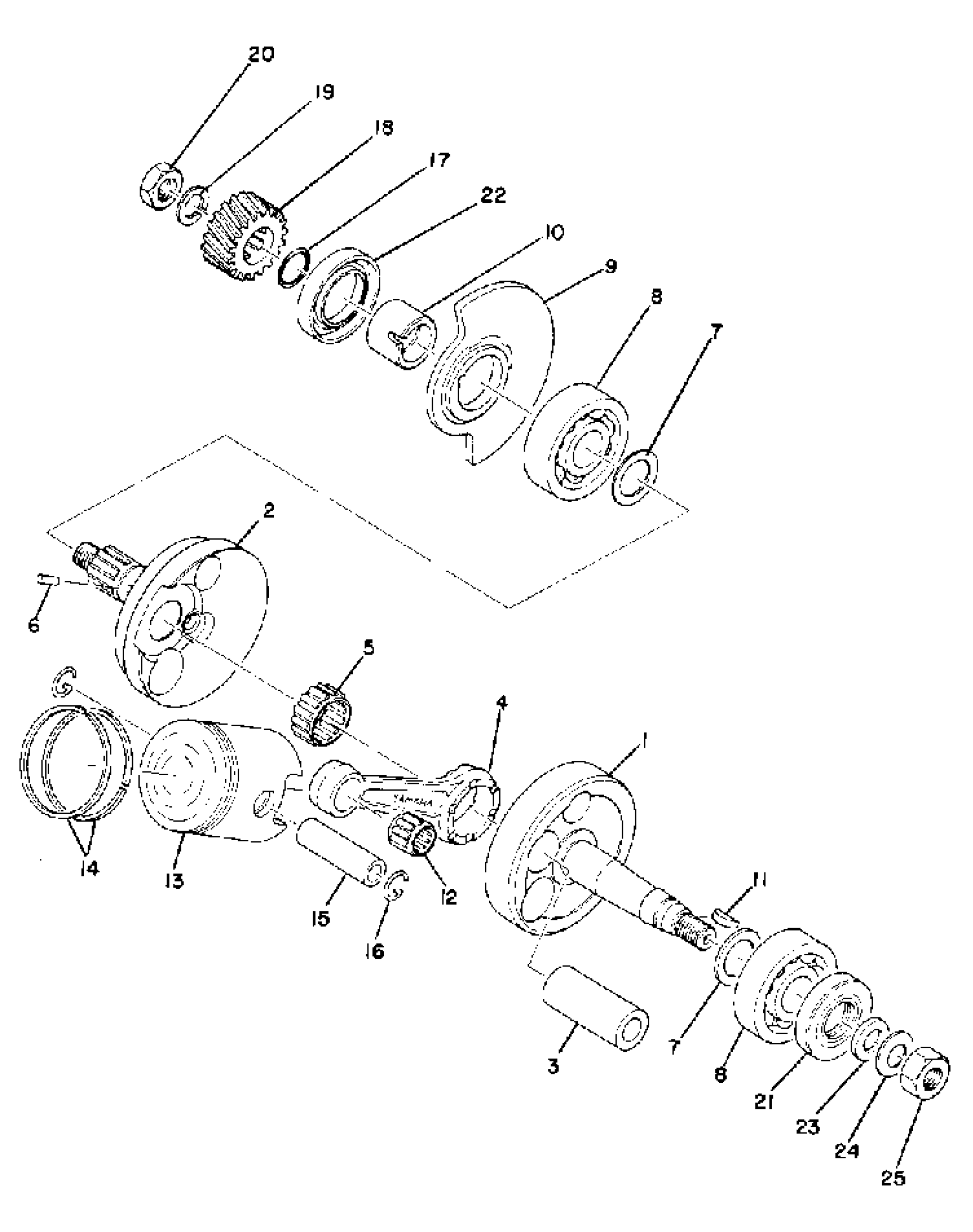

Yamaha G6S (G6S) 1970 CRANK - PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

(180-11400-01-00)

Unavailable

1

CRANK 1

(180-11412-01-00)

Unavailable

2

CRANK 2

(180-11422-00-00)

Unavailable

3

. PIN, CRANK 1

3R1-11681-00-00

Unavailable

4

ROD, CONNECTING

(180-11651-00-00)

Unavailable

5

BEARING, CYLINDRICAL(3TU)

93310-418C4-00

$48.99

6

PIN,DOWEL (137)

93604-14012-00

$1.81

7

SHIM, CRANK 1

136-11561-00-03

Unavailable

7

SHIM, CRANK 1

136-11561-00-04

Unavailable

7

SHIM, CRANK 1

136-11561-00-05

Unavailable

8

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

$65.99

9

VALVE, ROTARY

(180-13512-00-00)

Unavailable

10

COLLAR, VALVE

(122-13515-02-00)

Unavailable

11

KEY WOODRUFF 146115450000

90280-03017-00

$7.49

12

BRG,CYL-CAL ROLLER 5G TM

93310-11268-00

$35.99

13

PISTON STD (180-11631-00-96)

180-11631-01-96

Unavailable

13

PISTON 1 O/S 0.25

(180-11635-01-00)

Unavailable

13

PISTON 2 O/S 0.50

(180-11636-01-00)

Unavailable

14

RING SET STD KS

180-11601-01-00

Unavailable

14

RING SET 1ST KS

(180-11601-11-00)

Unavailable

14

RING SET 2ND KS

(180-11601-21-00)

Unavailable

15

PIN, PISTON

527-11633-00-00

Unavailable

16

CIRCLIP 132116340000

93450-13022-00

Unavailable

17

O-RING(3KX)

93210-180A6-00

Unavailable

18

GEAR, PRI DRIVE

(164-16111-00-00)

Unavailable

19

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

20

NUT, HEXAGON 1371637700

90170-12060-00

Unavailable

21

OIL SEAL(4BA)

93102-20447-00

Unavailable

22

OIL SEAL (28X47X8-137)

93103-28012-00

Unavailable

23

WASHER (492)

90201-12535-00

Unavailable

24

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

25

NUT(3DM)

95304-12600-00

Unavailable
