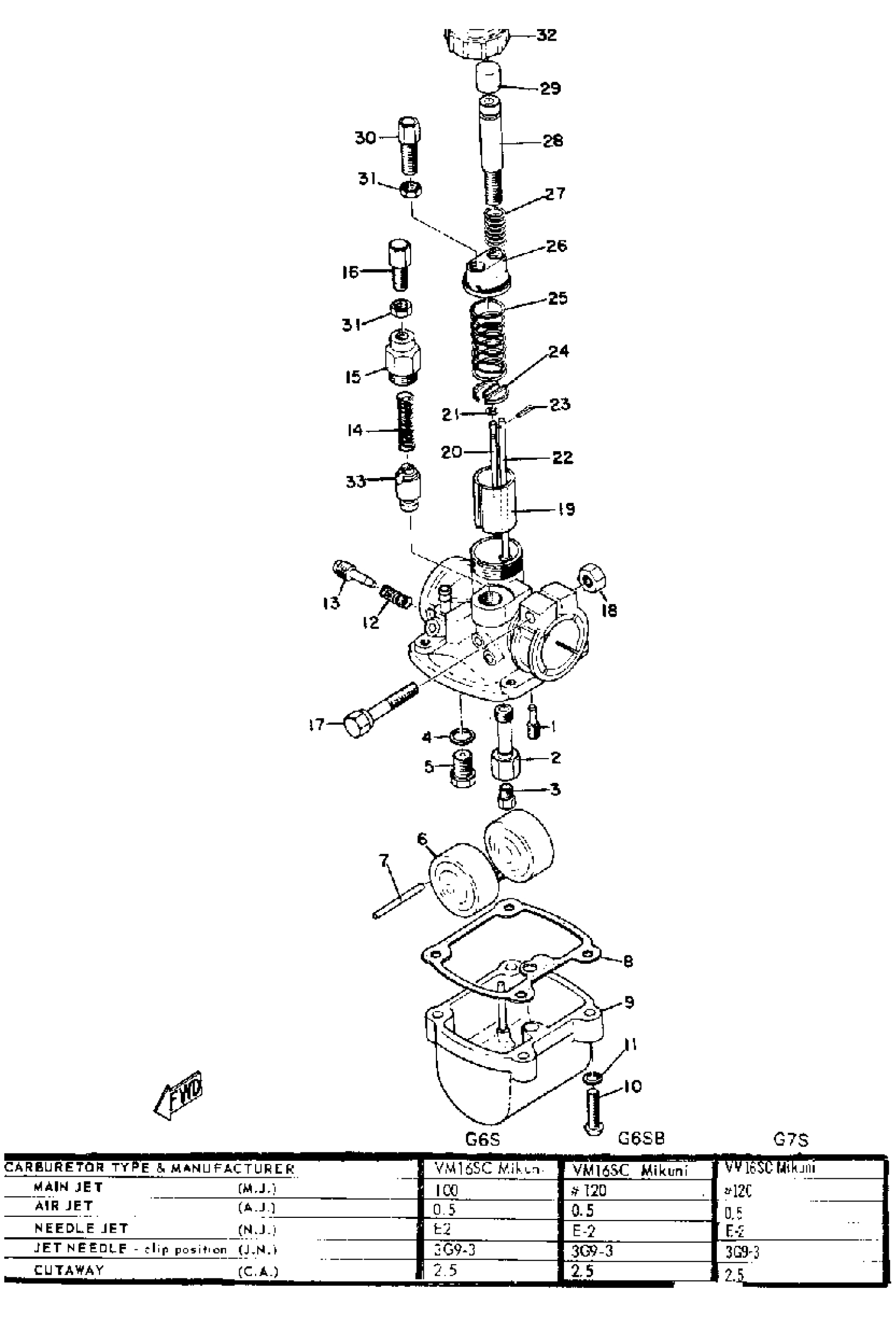

Yamaha G6S (G6S) 1970 CARBURETOR Diagram

#

Description
Price

1

JET, PILOT (# 25)

193-14142-25-A0

$10.99

1

CARBURETOR ASSEMBLY 1

(232-14101-60-00)

Unavailable

2

NOZZLE, MAIN

(127-14141-12-00)

Unavailable

3

JET, MAIN #90

(127-14143-18-00)

Unavailable

3

JET, MAIN (NO.100)

127-14143-20-00

$7.99

3

JET, MAIN (NO.110)

127-14143-22-00

Unavailable

4

WASHER, VALVE SEAT

127-14195-00-00

$7.99

5

VALVE SEAT ASSY (#1.2)

2E9-14190-12-00

$55.99

6

FLOAT

127-14185-00-00

$38.99

7

PIN, FLOAT

127-14186-00-00

$6.65

8

GASKET, FLOAT CHAMBER

127-14184-00-00

$10.99

9

BODY, FLOAT CHMBR 1

(116-14181-00-00)

Unavailable

10

SCREW, PAN HEAD

98507-04018-00

$2.19

11

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

12

SPRING, AIR ADJUSTING

127-14134-00-00

$7.99

13

SCREW, AIR ADJUSTING

(209-14123-00-00)

Unavailable

14

SPRING, PLUNGER

127-14135-00-00

Unavailable

15

CAP, PLUNGER

127-14174-00-00

Unavailable

16

CABLE ADJUST SCREW SET

12G-14106-00-00

Unavailable

17

. SCREW, BODY FITTING

127-14125-01-00

Unavailable

18

NUT, HEXAGON (663)

95380-05600-00

Unavailable

19

VALVE, THROTTLE 1

(180-14112-25-00)

Unavailable

20

NEEDLE

127-14116-09-00

Unavailable

21

CLIP

127-14137-00-00

Unavailable

22

BAR, THROTTLE

(167-14114-00-00)

Unavailable

23

. PIN, COTTER

91490-12012-00

Unavailable

24

. SEAT, SPRING

296-14136-00-00

Unavailable

25

. SPRING, THRTL VALVE

127-14131-00-00

Unavailable

26

TOP, MIXING CHAMBER

(180-14158-00-00)

Unavailable

27

SPRING, THROTTLE STOP

127-14133-00-00

Unavailable

28

SCREW, THRTL STOP

(209-14121-00-00)

Unavailable

29

CAP, MIXING CHAMBER

(180-14168-00-00)

Unavailable

30

CABLE ADJUST SCREW SET

12G-14106-00-00

Unavailable

31

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

32

CAP, MIXING CHAMBER

(127-14168-00-00)

Unavailable

33

PLUNGER, STARTER

58E-14171-00-00

Unavailable
