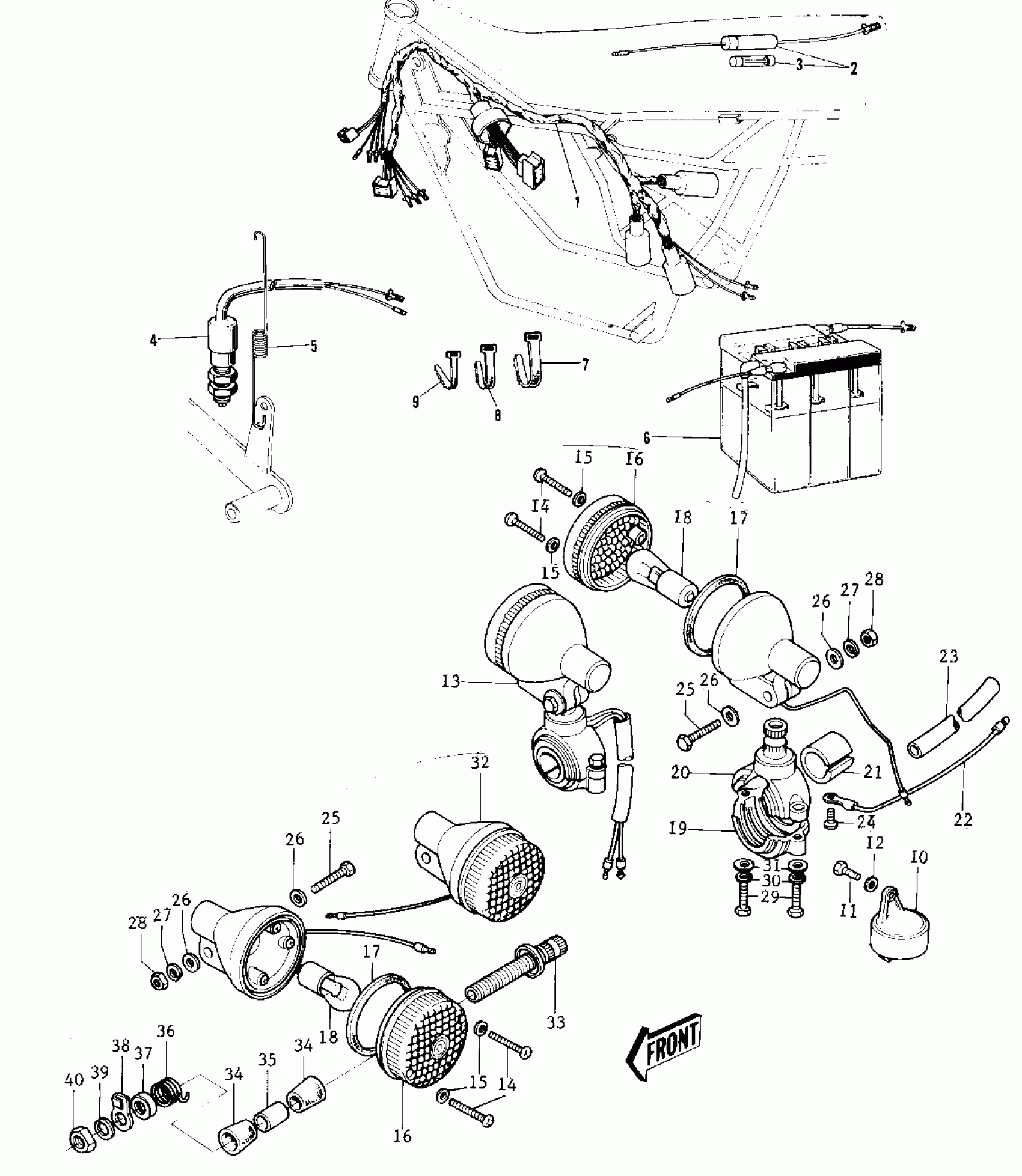

Kawasaki G5-C TURN SIGNALS/CHASSIS ELECTRICAL EQUIPMEN Diagram
#
1
WIRING HARNESS-MAIN
26001-063
Unavailable
2
FUES ASSY
26004-008
Unavailable
3
FUSE,10A,L=25
26006-003
Unavailable
4
SWITCH-BRAKE LAMP
27010-015
Unavailable
5
SPRING,BRAKE LAMP SWITCH
27011-011
Unavailable
6
YUA BAT 6N4-2A-3
K26012-006
Unavailable
7
BAND,L=123
92072-030
Unavailable
8
BAND,L=149
92072-031
Unavailable
9
BAND,L=218
92072-032
Unavailable
10
RELAY-TURN SIGNAL
27002-015
Unavailable
11
BOLT-UPSET 6X14
112B0614
Unavailable
11
BOLT-UPSET 6X14
112B0614
Unavailable
12
WASHER,6.5X20X1.6
92022-125
Unavailable
13
LAMP ASY-FR TURN SIG
23037-005
Unavailable
14
SCREW-PAN HEAD,4X20
220E0420A
Unavailable
15
WASHER,PLAIN,4MM
23058-002
Unavailable
16
LENS-SIGNAL LAMP,"045-6588"
23048-1001
Unavailable
17
GASKET,SIGNAL LAMP
23050-003
Unavailable
18
BULB,6V 21CP
92069-056
Unavailable
19
BRACKET-SIGNAL LAMP,FR
23051-1013
Unavailable
20
BRACKET-SIGNAL LAMP,FR
23051-1004
Unavailable
21
DAMPER
23066-003
Unavailable
22
WIRE-LEAD,SIGNAL LAMP
26011-061
Unavailable
23
COVER-WIRING HARNESS
26009-004
Unavailable
24
SCREW PAN HEAD 3X5
220B0305A
Unavailable
25
BOLT-UPSET
112G0630
Unavailable
26
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
27
WASHER SPRING 6MM
461F0600
Unavailable
28
NUT 6MM
311B0600
Unavailable
29
BOLT
110N0516
Unavailable
30
WASHER SPRING 5MM
461F0500
Unavailable
31
WASHER-PLAIN-SMALL,5MM
410D0500
Unavailable
32
LAMP-REAR TURN SIGNAL
23040-033
Unavailable
33
BKT-RR SIGNAL LAMP
23051-037
Unavailable
34
DAMPER RUBBER
92075-148
Unavailable
35
COLLAR 12.7X17.3X30
92027-168
Unavailable
36
SPRING
92081-111
Unavailable
37
WASHER CUP 12.5X35X4T
92022-235
Unavailable
38
CLAMP-RR SIGNAL LAMP
92037-087
Unavailable
39
WASHER-SPRING,12MM
461F1200
Unavailable
40
NUT-HEX-FINE
315B1200
Unavailable
