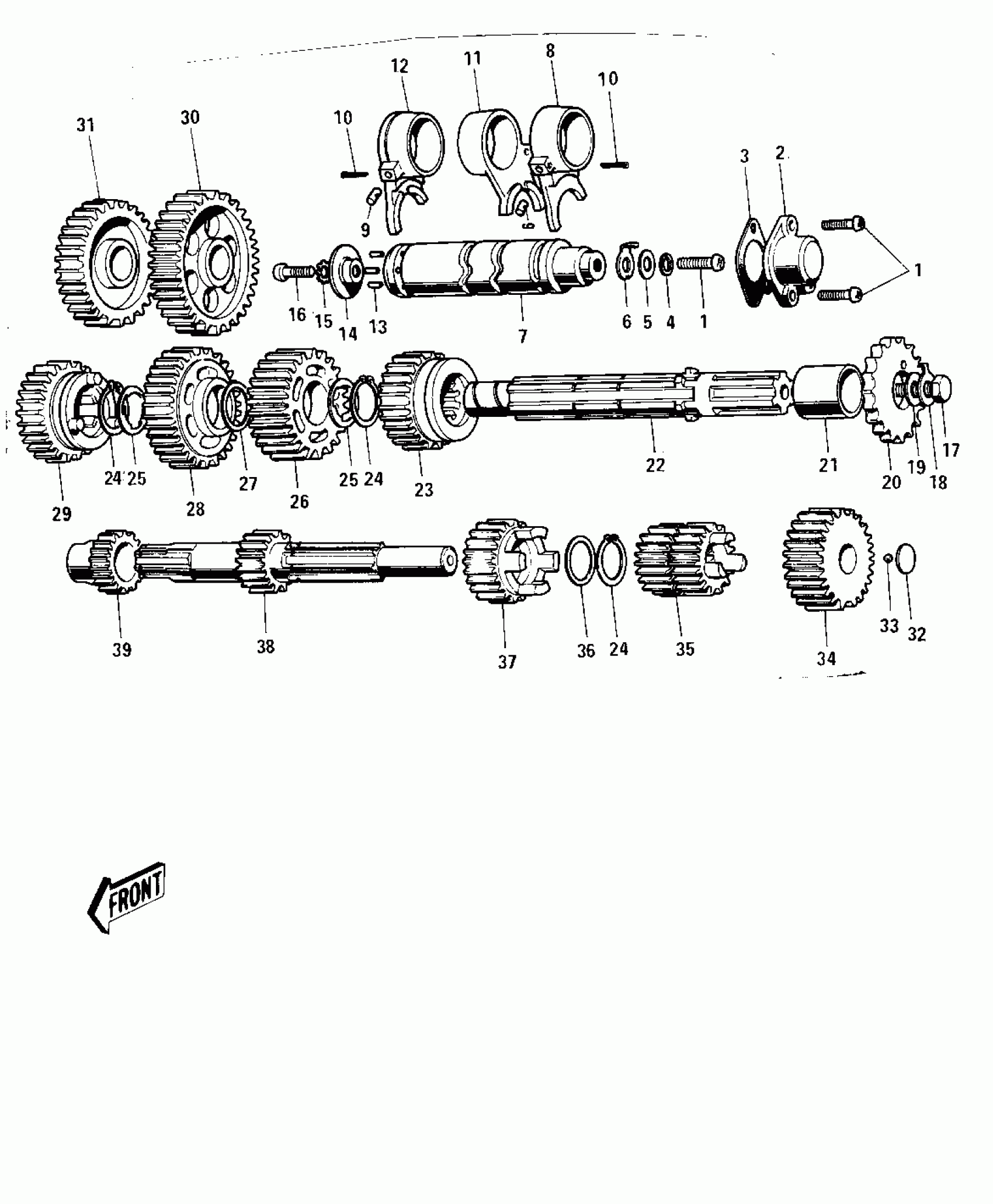

Kawasaki G5-C TRANSMISSION/CHANGE DRUM ('72-'73 G5-A) Diagram
#
1
SCREW-PAN-CROS,6X16
220B0616
Unavailable
2
SWITCH,NEUTRAL
13151-1001
Unavailable
3
GASKET,NEUTRAL SWITCH
13146-002
Unavailable
4
WASHER SPRING 6MM
461F0600
Unavailable
5
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
6
ROTOR,TOP & NEUTRAL
21007-1003
Unavailable
7,13~1
DRUM ASSY-GEAR CHANGE
13239-005
Unavailable
7
DRUM ASSY-GEAR CHANGE
13239-005
Unavailable
8
FORK SELECTOR 3RD
13140-009
Unavailable
9
PIN SELECT FORK GUIDE
92043-005
Unavailable
10
PIN-COTTER,3.0X20
550D3020
Unavailable
11
FORK SELECTOR 4TH-TOP
13140-017
Unavailable
12
FORK SELECTOR LOW-2ND
13140-010
Unavailable
13
PIN,DOWEL,4X15.8
92042-014
Unavailable
14
PLATE CHANGE DRUM PIN
13142-008
Unavailable
15
WASHER LOCK 6MM
464H0600
Unavailable
16
SCREW PAN HEAD 6X12
220B0612
Unavailable
17
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
18
WASHER LOCK 8MM
92030-007
Unavailable
19
WASHER ENG SPROCKET
92022-130
Unavailable
20
ENG SPROCKET,ASY,15T
13249-003
Unavailable
20
ENG SPROCKET ASY,13T
13249-001
Unavailable
20
SPROCKET-OUTPUT,14T
13144-1058
Unavailable
21
SPACER ENG SPROCKET
92027-009
Unavailable
21
COLLAR,ENG NPROCKET
92027-179
Unavailable
22
SHAFT-TRANSMISSION OUTPUT
13128-021
Unavailable
23
TOP GEAR OUTPUT SHAFT
13137-012
Unavailable
24
RING-SNAP,16MM
92033-014
Unavailable
25
WASHER,TOOTHED,18.5X23X1.2
92024-030
Unavailable
26
3RD GEAR OUTPUT SHAFT
13133-005
Unavailable
27
WASHER,THRUST,18.5X23X1.6
92022-146
Unavailable
28
2ND GEAR OUTPUT SHAFT
13131-008
Unavailable
29
GEAR,OUTPUT 4TH,24T
13129-1708
Unavailable
30
GEAR,OUTPUT LOW,35T
13129-010
Unavailable
31
GEAR-SPUR,KICKSTARTER.IDLE,30T
13073-004
Unavailable
32
WASHER,THRUST
92022-115
Unavailable
33
BALL-STEEL,7/32"
600A0700
Unavailable
34
GEAR,INPUT TOP,24T
13129-1927
Unavailable
35
2ND&3RD GEAR,DRIVE
13129-1052
Unavailable
36
WASHER,18.5X23X1.2
92022-118
Unavailable
37
4TH GEAR,DRIVE
13129-1053
Unavailable
38
SHAFT,DRIVE
13127-032
Unavailable
39
GEAR-SPUR,KICKSTARTER PINION
13075-004
Unavailable
