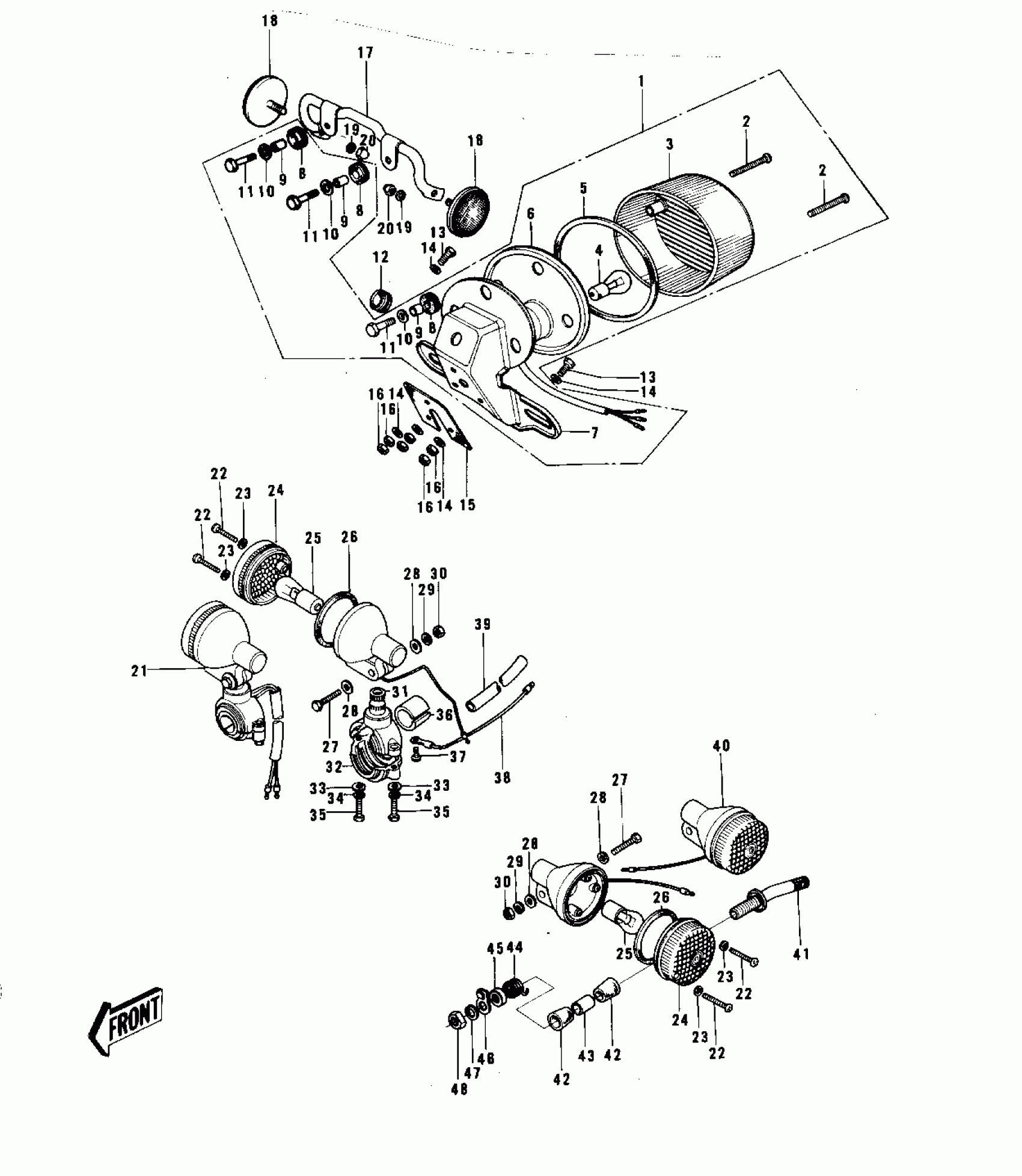

Kawasaki G5-C TAILLIGHT/TURN SIGNALS ('74-'75 B/C) Diagram

#

Description
Price

1

LAMP ASSY,TAIL,BLACK

23024-069-21

$138.10

2

SCREW-PAN HEAD,4X35

220E0435A

Unavailable

3

LENS-TAIL LAMP

23026-023

Unavailable

4

BULB,6V 17/5.3W

92069-028

Unavailable

5

GASKET-TAIL LAMP LENS

23028-018

Unavailable

6

CASE,TAIL LAMP

23027-030

Unavailable

7

BKT-LICENSE PLT.BLACK

23036-019-21

$91.59

8

DAMPER RUBBER

92075-076

$3.97

9

COLLAR,6.8X10X8.5

92027-129

$3.97

10

WASHER,6.5X20X1.6

92022-125

$1.25

11

BOLT 6X22

112B0622

Unavailable

12

GROMMET,10MM

92071-019

$3.10

13

BOLT-UPSET

112G0630

Unavailable

14

WASHER,6.5X20X1.6

92022-125

$1.25

15

DAMPER-TAIL LAMP SHCK

35039-005

Unavailable

16

NUT 6MM

312B0600

Unavailable

17

BRACKET-REFLECTOR

28013-005

$18.64

18

REFLECTOR-REFLEX,REAR

28012-008

Unavailable

19

WASHER SPRING 5MM

461F0500

Unavailable

20

NUT-CAP,5MM

322N0500

Unavailable

21

LAMP ASY-FR TURN SIG

23037-005

Unavailable

22

SCREW-PAN HEAD,4X20

220E0420A

Unavailable

23

WASHER,PLAIN,4MM

23058-002

$2.05

24

LENS-SIGNAL LAMP,"045-6588"

23048-1001

$8.39

25

BULB,6V 21CP

92069-056

$5.07

26

GASKET,SIGNAL LAMP

23050-003

$4.60

27

BOLT-UPSET

112G0630

Unavailable

28

WASHER-PLAIN,6MM

411D0600

$1.73

29

WASHER SPRING 6MM

461F0600

Unavailable

30

NUT 6MM

311B0600

Unavailable

31

BRACKET-SIGNAL LAMP,FR

23051-1004

Unavailable

32

BRACKET-SIGNAL LAMP,FR

23051-1013

$20.88

33

WASHER-PLAIN-SMALL,5MM

410D0500

$1.39

34

WASHER SPRING 5MM

461F0500

Unavailable

35

BOLT

110N0516

Unavailable

36

DAMPER

23066-003

Unavailable

37

SCREW PAN HEAD 3X5

220B0305A

$0.63

38

WIRE-LEAD,SIGNAL LAMP

26011-061

Unavailable

39

COVER-WIRING HARNESS

26009-004

Unavailable

40

LAMP-REAR TURN SIGNAL

23040-033

Unavailable

41

BKT-RR SIGNAL LAMP

23051-044

Unavailable

42

DAMPER RUBBER

92075-148

Unavailable

43

COLLAR 12.7X17.3X30

92027-168

Unavailable

44

SPRING

92081-111

Unavailable

45

WASHER CUP 12.5X35X4T

92022-235

Unavailable

46

CLAMP-RR SIGNAL LAMP

92037-087

Unavailable

47

WASHER-SPRING,12MM

461F1200

Unavailable

48

NUT-HEX-FINE

315B1200

Unavailable
