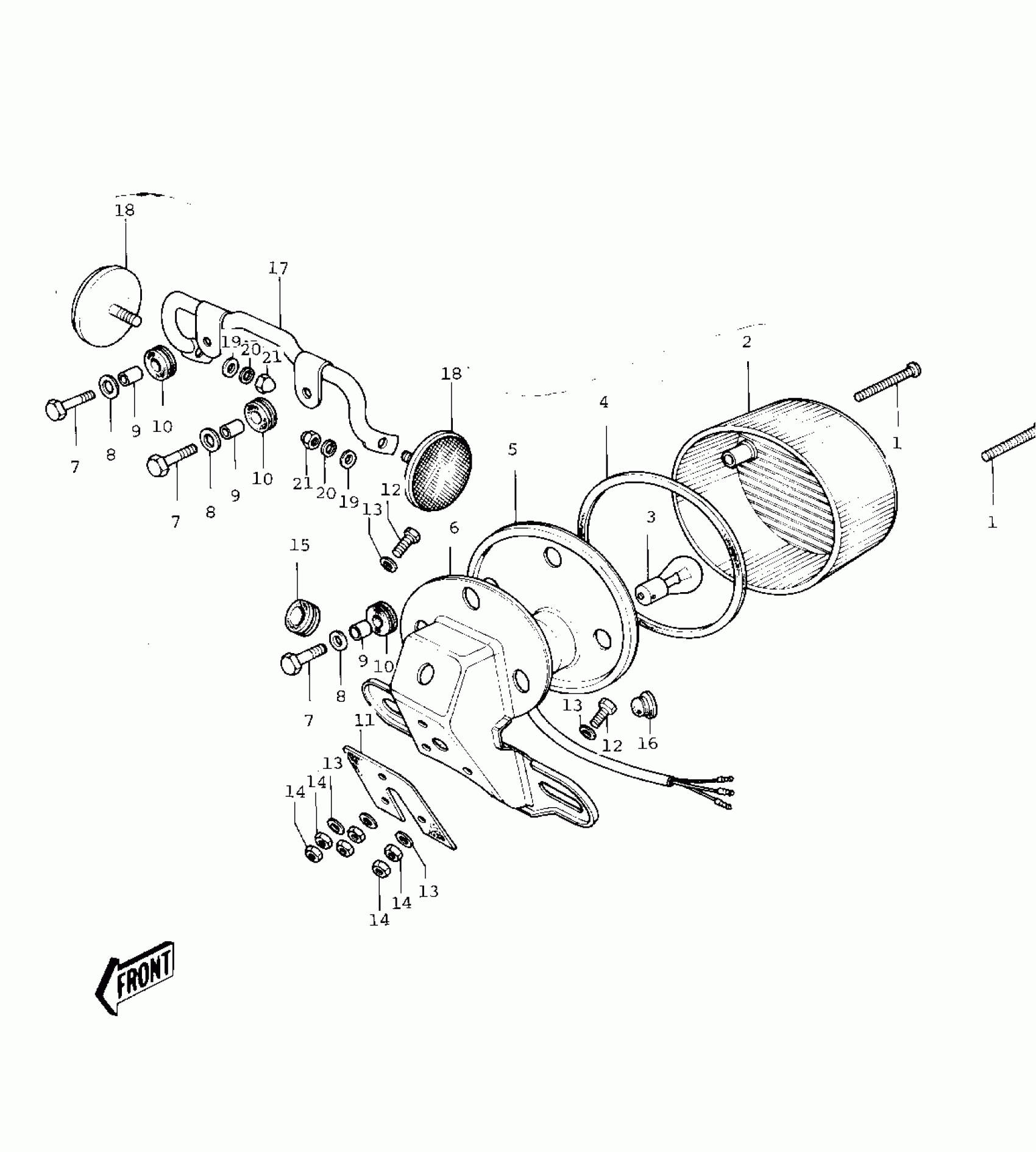

Kawasaki G5-C TAILLIGHT (G5-A) Diagram

#

Description
Price

1~10

LAMP ASSY,TAIL,BLACK

23024-069-21

$138.10

1

SCREW-PAN HEAD,4X35

220E0435A

Unavailable

2

LENS-TAIL LAMP

23026-023

Unavailable

3

BULB,6V 17/5.3W

92069-028

Unavailable

4

GASKET-TAIL LAMP LENS

23028-018

Unavailable

5

CASE,TAIL LAMP

23027-030

Unavailable

6

BKT-LICENSE PLT.BLACK

23036-019-21

$91.59

7

BOLT-UPSET,6X20

112G0620

Unavailable

7

BOLT-UPSET,6X20

112G0620

Unavailable

8

WASHER,6.5X20X1.6

92022-125

$1.25

9

COLLAR,6.8X10X8.5

92027-129

$3.97

10

DAMPER RUBBER

92075-076

$3.97

11

DAMPER-TAIL LAMP SHCK

35039-005

Unavailable

12

BOLT-UPSET

112G0630

Unavailable

12

BOLT-UPSET

112G0630

Unavailable

13

WASHER,6.5X20X1.6

92022-125

$1.25

14

NUT 6MM

312B0600

Unavailable

15

GROMMET,10MM

92071-019

$3.10

16

PLUG REAR FENDER RUB

92074-006

$5.93

17

BRACKET-REFLECTOR

28013-005

$18.64

18

REFLECTOR,REFLEX,REAR

28012-009

$24.56

19

WASHER-PLAIN,5MM

411B0500

Unavailable

20

WASHER SPRING 5MM

461F0500

Unavailable

21

NUT-CAP,5MM

322N0500

Unavailable
