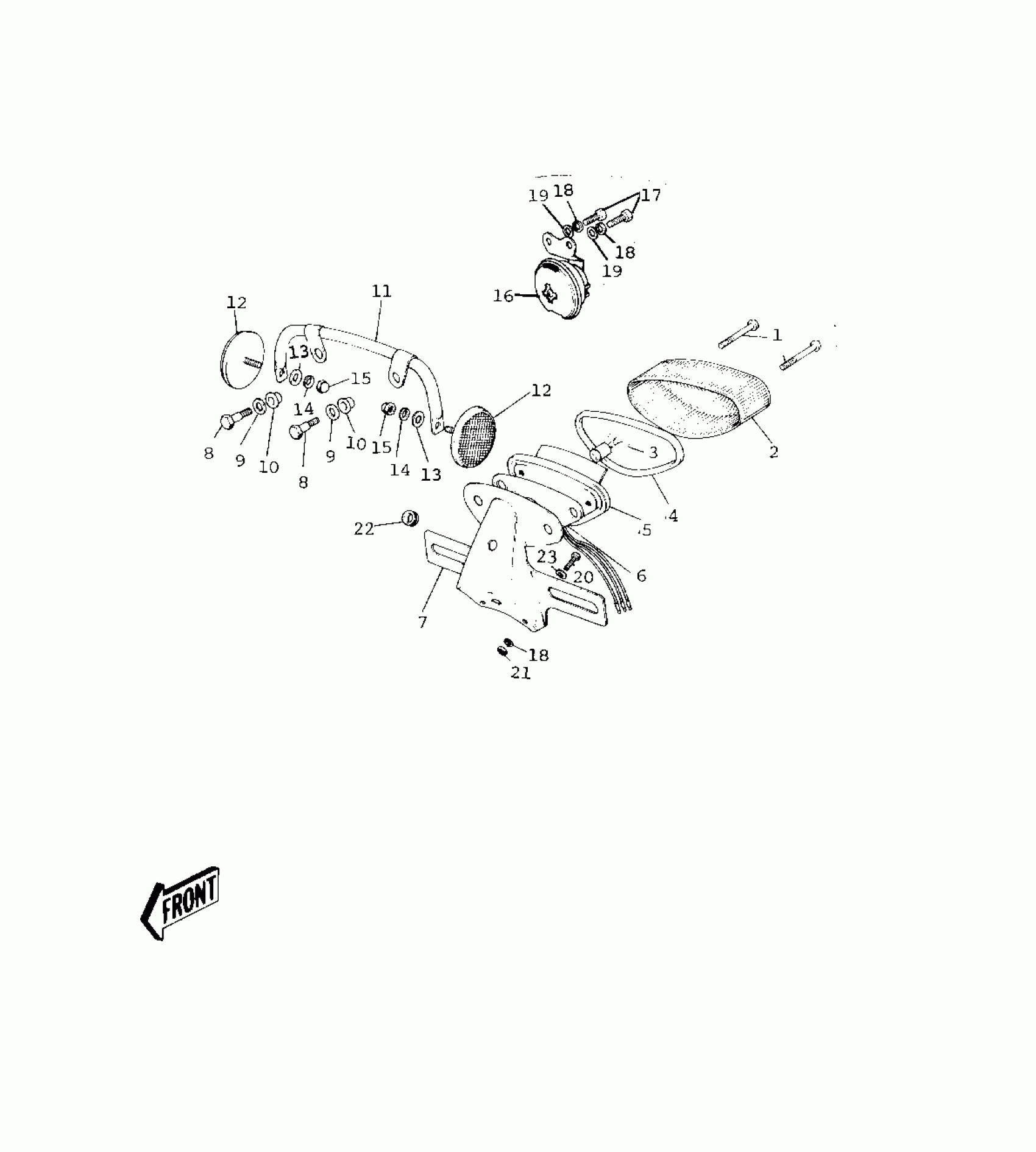

Kawasaki G5-C TAILLIGHT (-'72-'73 G5-A) Diagram
#
Description
Price
1~10
LAMP ASSY-TAIL,BLACK
23024-013-21
Unavailable
1
SCREW
220R0455
Unavailable
2
LENS-TAIL LAMP
23026-022
Unavailable
3
BULB 6V 3/21CP
92069-023
Unavailable
4
GASKET-TAIL LAMP LENS
23028-016
Unavailable
5
CASE-TAIL LAMP
23027-029
Unavailable
6
GASKET-TAIL LAMP CASE
23028-015
Unavailable
7
BKT-LICENSE PLT,BLACK
23036-014-21
Unavailable
8
BOLT
92001-111
Unavailable
9
WASHER,8.5X20X1.6
92022-1561
Unavailable
10
DAMPER RUBBER
92075-091
Unavailable
11
BRACKET-REFLECTOR
28013-002
Unavailable
12
REFLECTOR-REFLEX,REAR
28012-008
Unavailable
13
WASHER-PLAIN,5MM
411B0500
Unavailable
14
WASHER SPRING 5MM
461F0500
Unavailable
15
NUT-CAP,5MM
322N0500
Unavailable
16
HORN
27003-059
Unavailable
17
BOLT-UPSET,6X12
112G0612
Unavailable
17
BOLT-UPSET,6X12
112G0612
Unavailable
18
WASHER SPRING 6MM
461F0600
Unavailable
19
WASHER PLAIN 6MM
411B0600
Unavailable
20
BOLT-UPSET 6X14
112B0614
Unavailable
20
BOLT-UPSET 6X14
112B0614
Unavailable
21
NUT 6MM
311B0600
Unavailable
22
GROMMET,10MM
92071-019
Unavailable
23
WASHER,6.5X20X1.6
92022-125
Unavailable
