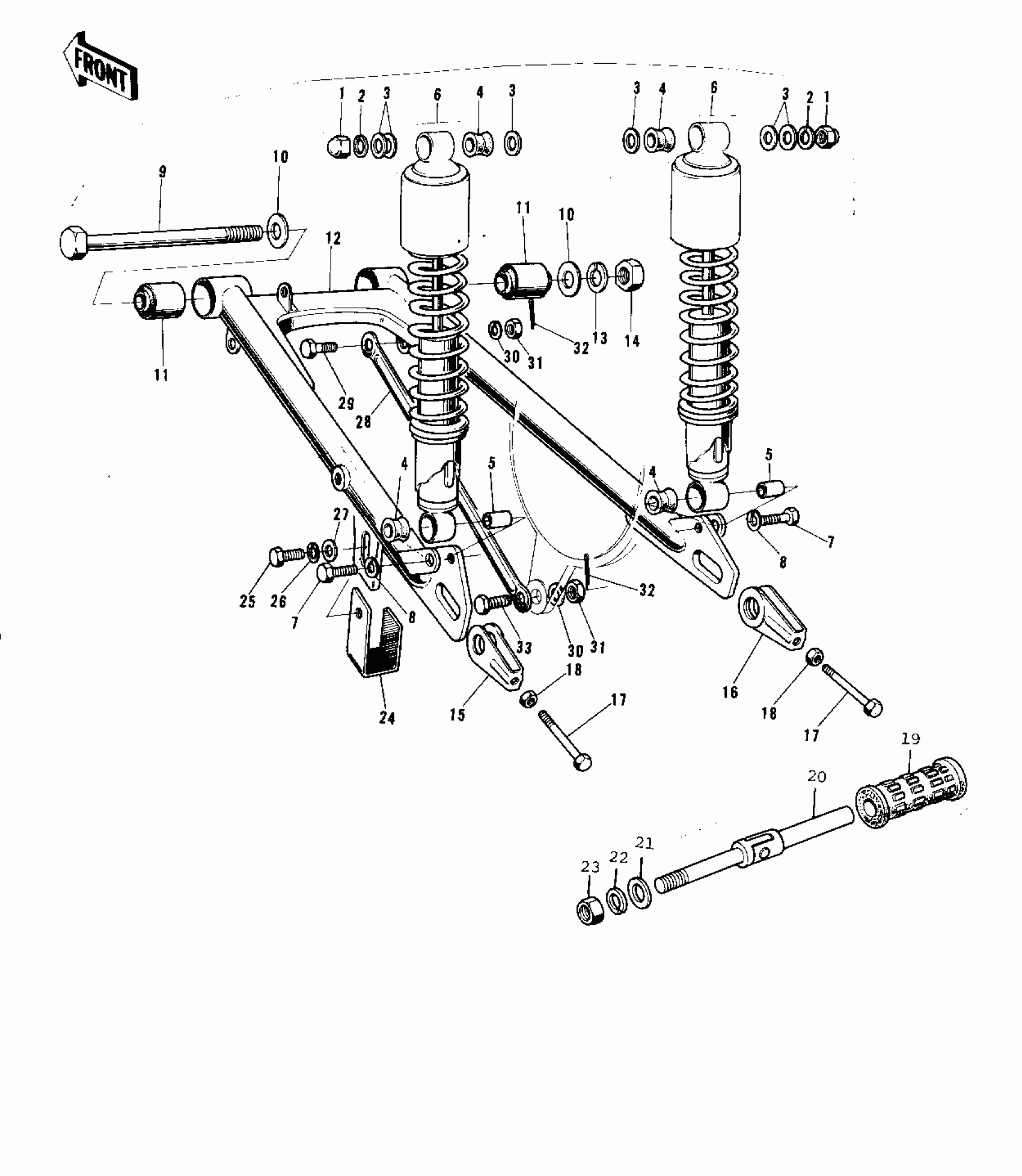

Kawasaki G5-C SWING ARM/SHOCK ABSORBERS ('74-'75 B/C) Diagram
#
Description
Price
1
NUT,CAP,12MM
92020-014
Unavailable
2
WASHER-SPRING,12MM
461F1200
Unavailable
3
WASHER-PLAIN-SMALL,12MM
410B1200
Unavailable
4
DAMPER,SHOCKABSORBER
92075-1020
Unavailable
5
COLLAR,SHOCKABSORBER
45016-003
Unavailable
4~6
SHOCK ABSBR RR
45014-074
Unavailable
7
BOLT HEX HEAD 10X35
113N1035
Unavailable
8
WASHER SPRING 10MM
461F1000
Unavailable
9
SHAFT-SWING ARM
33032-034
Unavailable
10
WASHER-PLAIN-SMALL,12MM
410B1200
Unavailable
11
BUSHING-RUBBER
92092-005
Unavailable
12
ARM-SWINGING
33001-047
Unavailable
13
WASHER-SPRING,12MM
461F1200
Unavailable
14
NUT-HEX-FINE
314B1200
Unavailable
15
ADJUSTER-CHAIN,LH
33040-045
Unavailable
16
ADJUSTER-CHAIN,RH
33040-046
Unavailable
17
BOLT,8X50
92001-1399
Unavailable
18
NUT 8MM
312B0800
Unavailable
19
RUBBER REAR FOOTREST
92076-008
Unavailable
20
BAR SET-REAR FOOTREST
34030-001
Unavailable
21
WASHER PLAIN 10MM
410B1000
Unavailable
22
WASHER SPRING 10MM
461F1000
Unavailable
23
NUT-HEX-FINE,10MM
314B1000
Unavailable
24
GUARD-CHAIN
55020-007
Unavailable
25
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
26
WASHER SPRING 8MM
461F0800
Unavailable
27
WASHER PLAIN 8MM
410B0800
Unavailable
28
ROD-TORQUE,RR
43007-028
Unavailable
29
BOLT,10X25
92003-017
Unavailable
30
WASHER SPRING 10MM
461F1000
Unavailable
31
NUT-HEX-FINE,10MM
314B1000
Unavailable
32
PIN COTTER 2.0X15
550D2015
Unavailable
33
BOLT,10X32
92003-003
Unavailable
