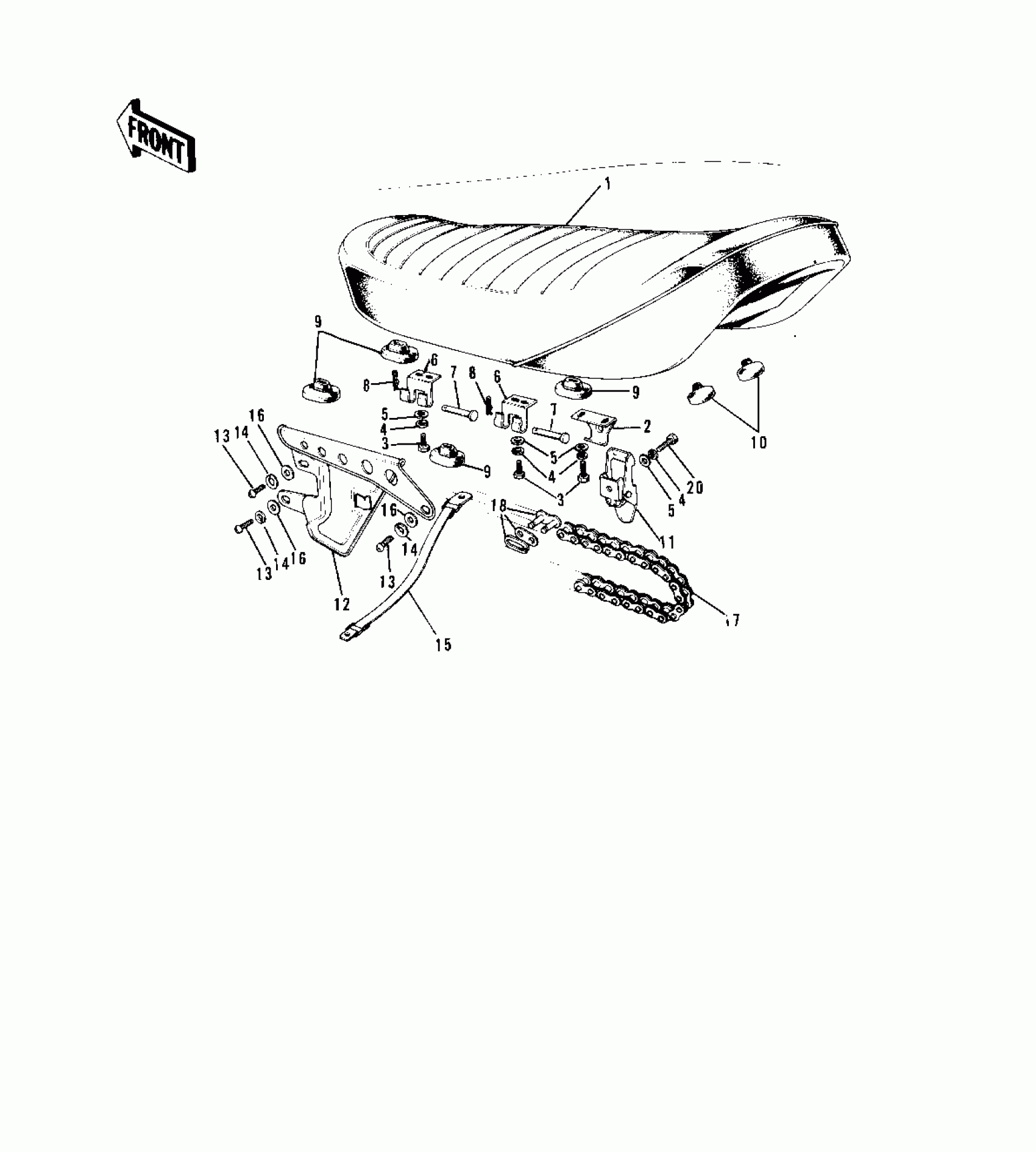

Kawasaki G5-C SEAT/CHAIN COVER/CHAIN ('72-'73 G5-A) Diagram

#

Description
Price

1~10

SEAT ASSY-DUAL

53002-034

$162.65

1~10

SEAT ASSY-DUAL

53002-039

$168.91

2

HOOK

53008-013

$3.14

3

BOLT-UPSET,6X12

112G0612

Unavailable

3

BOLT-UPSET,6X12

112G0612

Unavailable

4

WASHER SPRING 6MM

461F0600

Unavailable

5

WASHER PLAIN 6MM

411B0600

Unavailable

6

HINGE,BLACK

53009-017-10

Unavailable

7

PIN,6X48

53011-002

$4.72

8

COTTER PIN

92041-003

$4.53

9

DAMPER,DUAL SEAT

92075-023

$3.90

10

DAMPER

92075-099

$4.37

11

HOOK ASSY

53045-002

$21.02

12

CASE-CHAIN,FR BLACK

36014-043-21

$49.19

13

SCREW PAN HEAD 6X12

220B0612

Unavailable

14

WASHER SPRING 6MM

461F0600

Unavailable

15

BAND-SEAT STOPPER

92072-038

Unavailable

16

WASHER PLAIN 6MM

411B0600

Unavailable

17,18

UNAVAILABLE IN PRICE BOOK

695W43110

$12.39

18

JOINT-CHAIN,EK428-G

92058-1014

$5.75

20

BOLT-UPSET,6X16

112G0616

Unavailable
