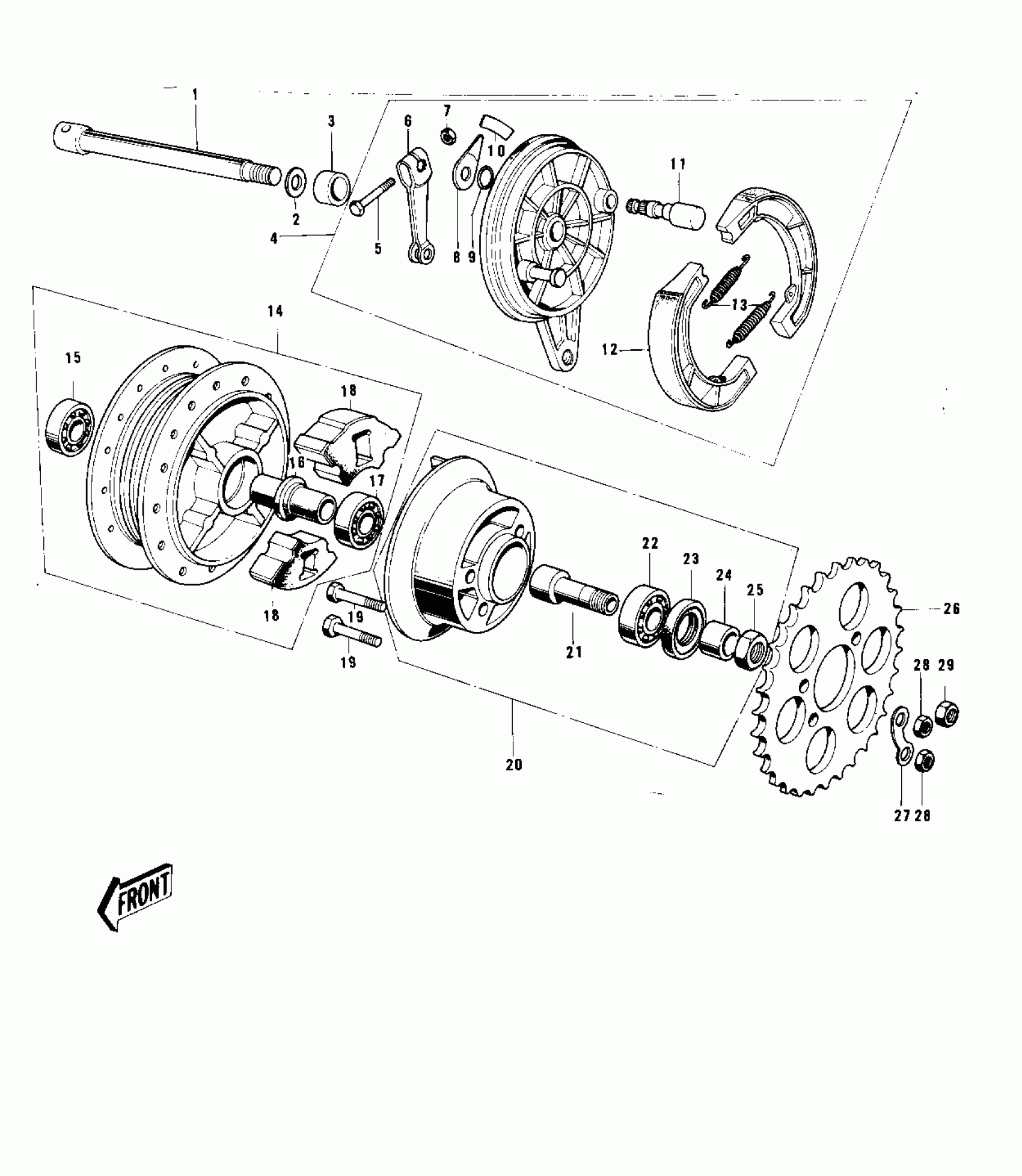

Kawasaki G5-C REAR HUB/BRAKE ('74-'75 B/C) Diagram

#

Description
Price

1

AXLE,12X215

41068-1109

$41.39

2

WASHER-PLAIN-SMALL,12MM

410B1200

Unavailable

3

COLLAR,12.2X22X28.5

42032-006

Unavailable

4

PANEL ASY,RR BK,BUFF

42006-038-80

$92.02

5

BOLT-UPSET

112G0630

Unavailable

6

LEVER,FRONT BRAKE CAM

41053-002

Unavailable

7

NUT,6MM

41072-007

$3.12

8

INDICATOR,BRAKE SHOE

41085-003

$13.78

9

RING-O,BRAKE CAM

92055-004

$4.25

10

LABEL,REAR BRKE SHOE

41084-003

Unavailable

11

CAM-BRAKE

42026-018

$34.51

12

SHOE-BRAKE

41048-1085

$20.89

13

SPRING,BRAKE SHOE

92081-1766

$6.39

14

DRUM ASSY,RR BRK,BUFF

42005-031-80

$215.31

15

BEARING BALL #6301Z

601B6301Z

Unavailable

16

COLLAR,L=58

42010-005

$12.19

17

BEARING-BALL,#6201C3

601B6201

$10.56

18

DAMPER,RR HUB SHOCK

42014-016

Unavailable

19

BOLT,HUB SPROCKET,10X36

92001-082

$2.42

20

COUPLING ASSY-RR HUB

42033-014

$118.08

21

SLEEVE,RR HUB COUPLING

42036-013

$40.05

22

BEARING-BALL,#6203C3

601B6203

$11.12

23

SEAL-OIL,COUPLING

92052-003

Unavailable

24

COLLAR,17X25X12.5

42037-003

$13.03

25

NUT,16MM

42045-004

$8.39

26

REAR SPROCKET 42T

42041-076

Unavailable

26

RR SPROCKET 39T (OPT)

42041-104

$52.22

26

SPROCKET-HUB,40T

42041-1095

$49.82

27

WASHER,LOCK

92088-011

$4.51

28

NUT-HEX-FINE,10MM

315B1000

Unavailable

29

NUT,10MM

42045-005

$6.34
