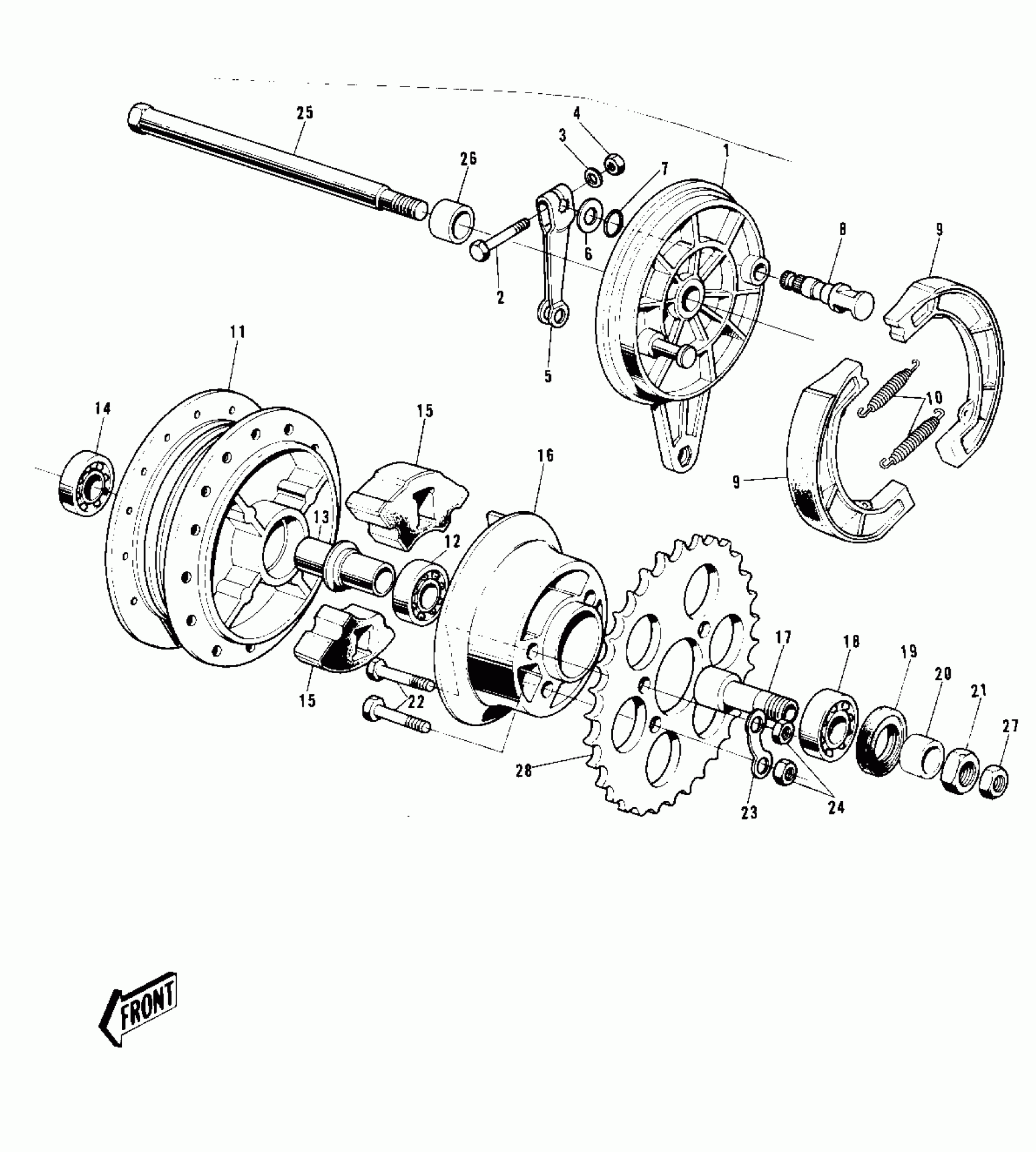

Kawasaki G5-C REAR HUB/BRAKE ('72-'73 G5-A) Diagram

#

Description
Price

1~10

PANEL-ASY,RR BRK,BLK

42006-025-21

$101.60

2

BOLT-UPSET

112G0630

Unavailable

2

BOLT-UPSET

112G0630

Unavailable

3

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

4

NUT 6MM

311B0600

Unavailable

5

LEVER-BRAKE CAM

42029-020

$36.39

6

WASHER BRAKE CAM SHT

41052-001

Unavailable

7

RING-O,BRAKE CAM

92055-004

$4.25

8

CAM-BRAKE

41050-018

$21.98

9

SHOE-BRAKE

41048-1085

$20.89

10

SPRING,BRAKE SHOE

92081-1766

$6.39

11~15

DRUM ASSY,RR BRK,BUFF

42005-031-80

$215.31

12

BEARING-BALL,#6201C3

601B6201

$10.56

13

COLLAR,L=58

42010-005

$12.19

14

BEARING BALL #6301Z

601B6301Z

Unavailable

15

DAMPER,RR HUB SHOCK

42014-016

Unavailable

16~21

COUPLING ASSY-RR HUB

42033-014

$118.08

17

SLEEVE,RR HUB COUPLING

42036-013

$40.05

18

BEARING-BALL,#6203C3

601B6203

$11.12

19

SEAL-OIL,COUPLING

92052-003

Unavailable

20

COLLAR,17X25X12.5

42037-003

$13.03

21

NUT,16MM

42045-004

$8.39

22

BOLT,HUB SPROCKET,10X36

92001-082

$2.42

23

WASHER,LOCK

92088-011

$4.51

24

NUT-HEX-FINE,10MM

315B1000

Unavailable

25

AXLE,12X215

41068-1109

$41.39

25

AXLE,12X215

41068-1109

$41.39

26

COLLAR,12.2X22X28.5

42032-006

Unavailable

27

NUT,10MM

42045-005

$6.34

28

REAR SPROCKET 42T

42041-076

Unavailable

28

RR SPROCKET 39T (OPT)

42041-104

$52.22

28

SPROCKET-HUB,40T

42041-1095

$49.82
