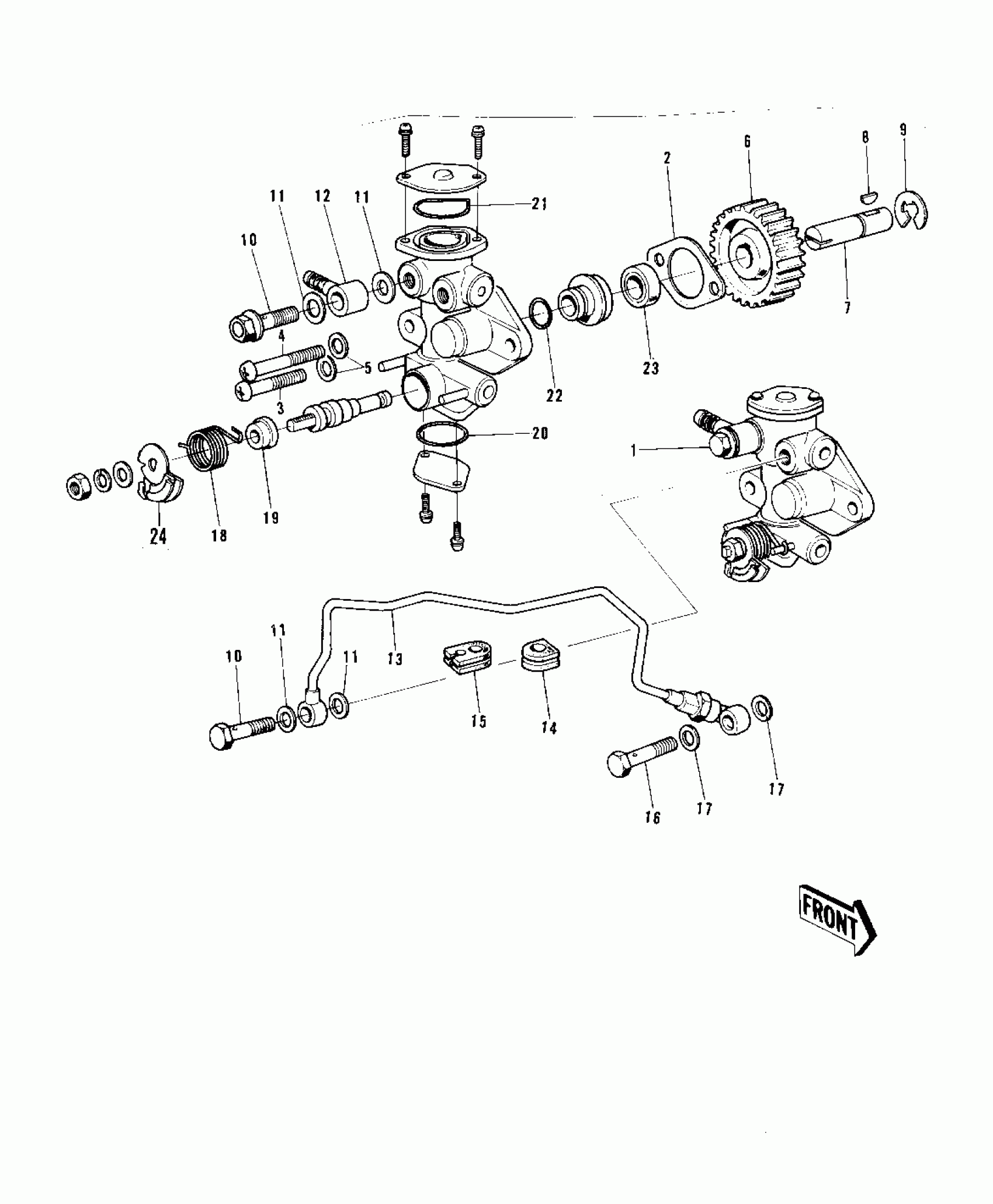

Kawasaki G5-C OIL PUMP ('72-'73 G5-A) Diagram

#

Description
Price

1

OIL PUMP ASSY

16082-021

$240.48

2

GASKET,OIL PUMP

11060-1160

$4.41

3

SCREW-PAN-CROS

220B0514

Unavailable

4

SCREW-PAN-CROS

220B0528

$1.34

5

WASHER,5.5X10.5X0.8

92022-037

$3.12

6

GEAR,OIL PUMP

16085-004

$21.24

7

SHAFT,OIL PUMP

16086-001

$15.56

8

KEY-WOODRUFF

510A3100

$2.17

9

CIRCLIP-TYPE-E,9MM

482K9000

Unavailable

10

BOLT,BANJO,L=16

92060-013

$5.16

11

WASHER OIL PUMP BANJO

92022-077

$3.13

12

FITTING,BANJO

92061-009

Unavailable

13

PIPE OIL

16129-003

Unavailable

14

GROMMET OIL PIPE A

16135-001

Unavailable

15

GROMMET OIL PIPE B

16135-005

Unavailable

16

BOLT BANJO CHECK VLV

92001-052

$1.85

17

GASKET,8.5X16X1

92065-023

$2.74

18

SPRING OIL PUMP LEVER

16093-004

$9.95

19

SEAL-OIL,CAMSHAFT,"X"TYPE

92049-1294

$8.25

20

"0" RING,LOWER CAP

16090-003

Unavailable

21

RING-O,CAP,BANJO SIDE

16088-002

$7.84

22

RING-O,OIL PUMP SHAFT

16090-002

$3.43

23

SEAL-OIL,OIL PUMP SHAFT

16091-001

$5.76

24

LEVER-OIL PUMP CABLE

16096-001

$6.41
