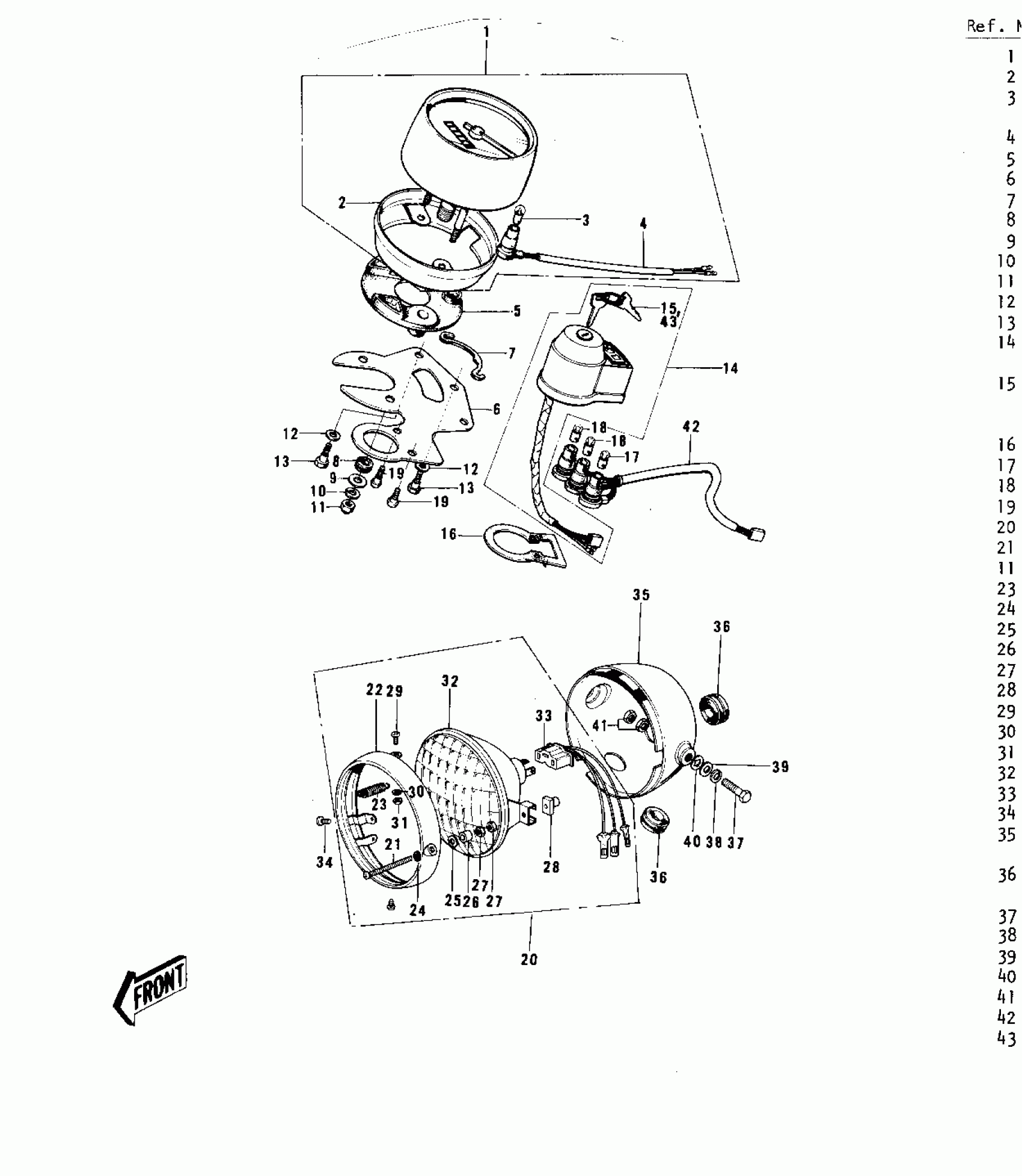

Kawasaki G5-C METERS/HEADLIGHT ('74-'75 B/C) Diagram

#

Description
Price

1

SPEEDOMETER ASSY,MPH

25005-095

$147.08

2

COVER,SPEEDOMETER

25012-016

$16.32

3

BULB,6V 3W,CLEAR

92069-053

$3.33

3

BULB,6V 1.7W

92069-024

$3.80

4

SOCKET,SPEEDOMETER

25010-014

$46.97

5

SHOCK DAMPER,METER

25019-018

Unavailable

6

BRACKET,SPEEDOMETER

25008-031

$19.37

7

DAMPER RUBBER-BRACKET

25019-007

Unavailable

8

DAMPER RUBBER,METER

25019-019

Unavailable

9

WASHER,5.5X20X1.2

92022-104

$3.43

10

WASHER SPRING 5MM

461F0500

Unavailable

11

NUT-CAP,5MM

322N0500

Unavailable

12

WASHER PLAIN 8MM

410B0800

Unavailable

13

BOLT-HEX HEAD,6MM

92003-069

Unavailable

14

SWITCH ASSY,IGNITION

27005-067

Unavailable

14

SWITCH ASSY,IGNITION

27005-082

Unavailable

15

KEY SET,#401

27008-063-01

Unavailable

15

KEY SET,#430

27008-063-30

Unavailable

16

DAMPER RUBBER-SWITCH

27025-001

Unavailable

17

BULB,6V 3W,CLEAR

92069-053

$3.33

18

BULB,6V 1.7W

92069-024

$3.80

19

SCREW-PAN HEAD,6MM

92011-026

Unavailable

20

LAMP UNIT HEAD

23003-009

Unavailable

21

SCREW ADJUST

23019-013

Unavailable

11

RIM HEAD LAMP

23006-020

Unavailable

23

SPRING LENS FITTING

23014-008

$1.14

24

WASHER,FOCUS ADJUSTING

23021-008

Unavailable

25

WASHER ADJUST

23021-007

$0.63

26

WASHER FITTING

23058-001

$1.64

27

NUT ADJUST

23020-013

$2.08

28

NUT,ADJUSTING

23020-012

$3.53

29

SCREW FITTING

23019-014

Unavailable

30

WASHER SPRING 4MM

461F0400

Unavailable

31

NUT-HEX

311B0400

Unavailable

32

SEALED BEAM UNIT

23007-023

Unavailable

33

SOCKET-ASSY,HEAD LAMP

23008-044

$20.90

34

SCREW OVL CNTSNK 5X8

222E0508A

Unavailable

35

CASE-HEAD LAMP,BLACK

23005-021-21

$54.08

35

BODY,HEAD LAMP,BLACK

23005-051-21

$23.75

36

GROMMET WIRING HARNES

23023-007

Unavailable

36

GROMMET

23023-011

$5.78

37

BOLT,HEX HEAD,10X25

92007-045

Unavailable

38

WASHER SPRING 10MM

461F1000

Unavailable

39

WASHER-PLAIN,10MM

411B1000

Unavailable

40

WASHER LOCK 10MM

463H1000

$0.69

41

NUT 10MM

92016-027

Unavailable

42

SOCKET, IGNITION

27024-001

Unavailable

43

KEY-LOCK,BLANK

27008-1024

$20.31

43

KEY-LOCK,BLANK

27008-1025

$20.31
