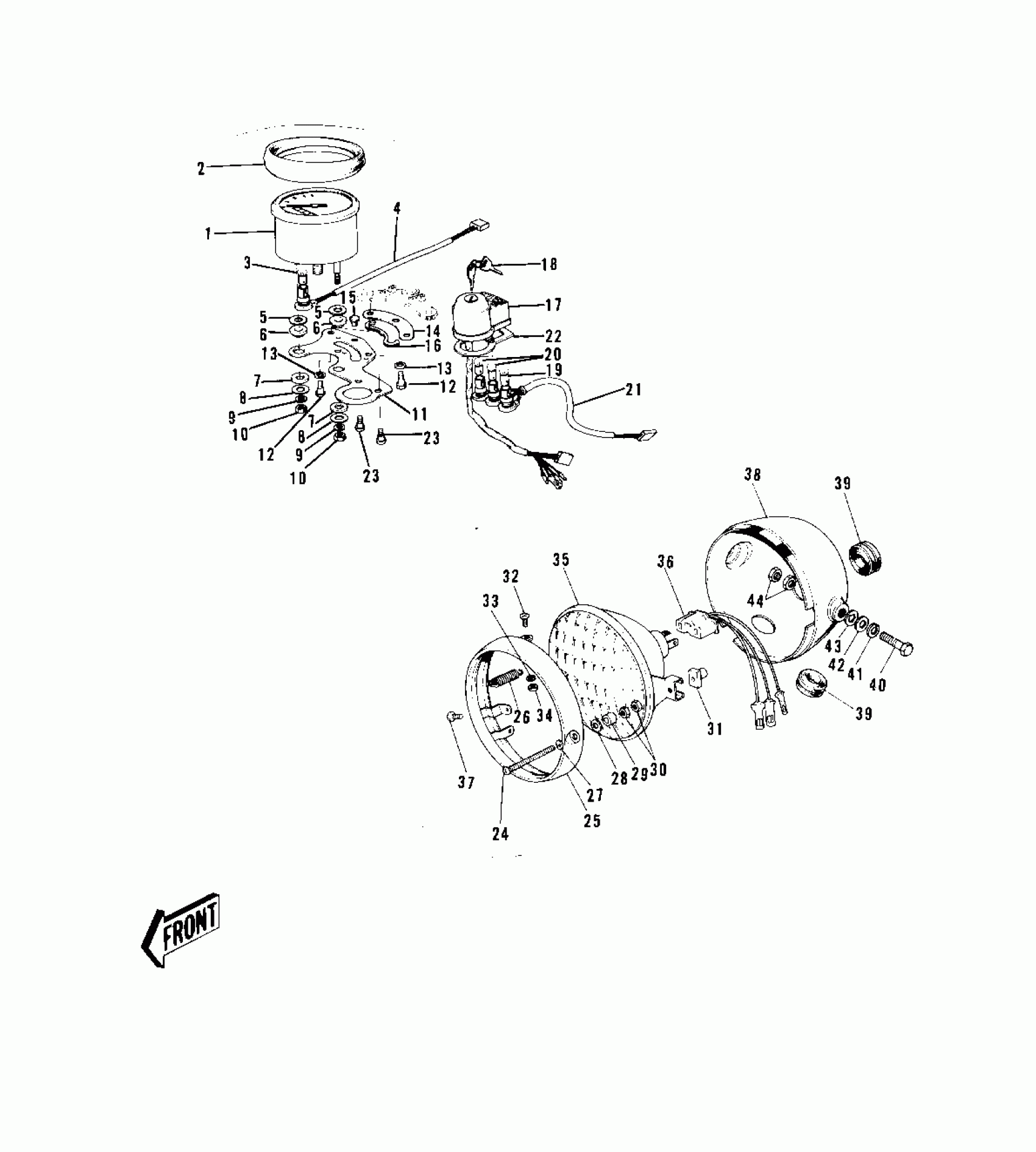

Kawasaki G5-C METERS/HEADLIGHT ('72-'73 G5-A) Diagram

#

Description
Price

1~4

SPEEDOMETER ASSY,MPH

25001-051

$101.44

1~4

SPEEDOMETER ASSY,MPH

25001-051

$101.44

2

COVER-SPEEDOMETER

25012-003

$21.14

3

BULB,6V 3W,CLEAR

92069-053

$3.33

4

SOCKET-SPEEDOMETER

25011-022

Unavailable

5

WASHER PLAIN 8MM

411B0800

Unavailable

6

DAMPER RUBBER

92075-065

Unavailable

7

DAMPER RUBBER

92075-066

Unavailable

8

WASHER,5.5X20X1.2

92022-104

$3.43

9

WASHER SPRING 5MM

461F0500

Unavailable

10

NUT-HEX

311B0500

$0.51

11

BRACKET-SPEEDOMETER

25008-016

$9.56

12

BOLT-HEX HEAD,6MM

92003-069

Unavailable

13

WASHER PLAIN 8MM

410B0800

Unavailable

14

DAMPER RUBBER-BRACKET

25019-007

Unavailable

15

DAMPER

92075-035

$3.65

16

SHOCK DAMPER

25019-009

$2.97

17,18

SWITCH ASSY,IGNITION

27005-067

Unavailable

18

KEY SET,#170

27008-042-70

$8.36

18

KEY SET,#171

27008-042-71

Unavailable

18

KEY SET,#172

27008-042-72

$8.36

18

KEY SET,#173

27008-042-73

$9.10

18

KEY SET,#174

27008-042-74

Unavailable

19

BULB,6V 3W,CLEAR

92069-053

$3.33

20

BULB,6V 1.7W

92069-024

$3.80

21

SOCKET, IGNITION

27024-001

Unavailable

22

DAMPER RUBBER-SWITCH

27025-001

Unavailable

23

SCREW-PAN HEAD,6MM

92011-026

Unavailable

24~37

LAMP UNIT HEAD

23003-009

Unavailable

24

SCREW ADJUST

23019-013

Unavailable

25

RIM HEAD LAMP

23006-020

Unavailable

26

SPRING LENS FITTING

23014-008

$1.14

27

WASHER,FOCUS ADJUSTING

23021-008

Unavailable

28

WASHER ADJUST

23021-007

$0.63

29

WASHER FITTING

23058-001

$1.64

30

NUT ADJUST

23020-013

$2.08

31

NUT,ADJUSTING

23020-012

$3.53

32

SCREW FITTING

23019-014

Unavailable

33

WASHER SPRING 4MM

461F0400

Unavailable

34

NUT-HEX

311B0400

Unavailable

35

SEALED BEAM UNIT

23007-023

Unavailable

36

SOCKET-ASSY,HEAD LAMP

23008-044

$20.90

37

SCREW OVL CNTSNK 5X8

222E0508A

Unavailable

38

CASE-HEAD LAMP,BLACK

23005-021-21

$54.08

39

GROMMET WIRING HARNES

23023-007

Unavailable

40

BOLT,HEX HEAD,10X25

92007-045

Unavailable

41

WASHER SPRING 10MM

461F1000

Unavailable

42

WASHER-PLAIN,10MM

411B1000

Unavailable

43

WASHER LOCK 10MM

463H1000

$0.69

44

NUT 10MM

92016-027

Unavailable
