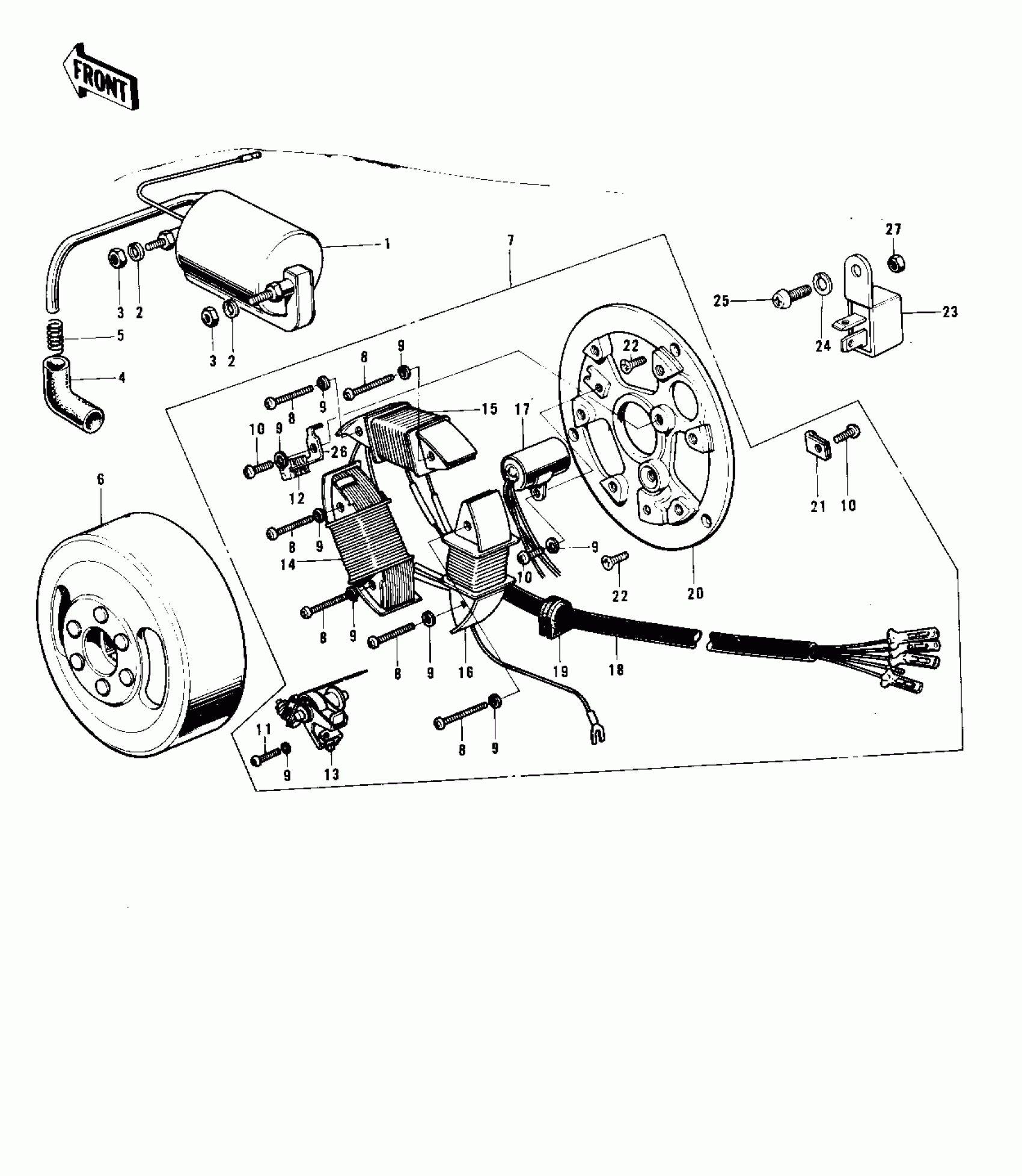

Kawasaki G5-C IGNITION/GENERATOR/RECTIFIER ('74-'75 B/ Diagram

#

Description
Price

1

COIL,IGNITION

21121-1047

Unavailable

2

WASHER SPRING 6MM

461F0600

Unavailable

3

NUT 6MM

311B0600

Unavailable

4

CAP-SPARK PLUG

21130-009

$20.48

5

TERMINAL,SPARK PLUG CAP

92101-001

$1.44

6

MAGNETO ASSY

21002-1055

Unavailable

6

FLYWHEEL

21050-017

$657.31

7

MAGNETO ASSY

21002-1055

Unavailable

7

STATOR ASSY

21003-027

$344.79

8

SCREW-PAN-CROS

220E0430

Unavailable

9

WASHER SPRING 4MM

461F0400

Unavailable

10

SCREW PAN HEAD 4X6

220B0406

$1.46

11

SCREW-PAN-CRSOSS,4X1

220B0412

$0.26

12

BRUSH,OIL

21019-005

Unavailable

13

BREAKER,CONTACT

21008-006

$50.32

14

COIL PRIMARY

21049-006

$199.81

14

COIL A,LIGHTING

21047-022

$83.33

15

COIL LIGHTING A

21047-010

$164.29

15

COIL A LIGHTING

21047-019

$179.22

16

COIL LIGHTING B

21047-011

$110.66

16

COIL-EXCITING

21049-1004

Unavailable

17

CONDENSER

21013-006

Unavailable

18

WIRING HARNESS,MAGNTO

21029-025

$28.44

19

GROMMET

21017-002

$4.23

19

WIRING HARNESS,MAGNT

21029-031

$60.32

20

PLATE-COIL,MAGNETO

21048-1002

$70.10

21

CLAMP,WIRING HARNESS

21037-002

Unavailable

22

SCREW-CSK-CROS,6X14

221B0614

Unavailable

23

RECTIFIER

21061-015

Unavailable

24

WASHER SPRING 5MM

461F0500

Unavailable

25

SCREW PAN HEAD 5X10

220B0510

Unavailable

25

BOLT HEX HEAD 5X10

110B0510

Unavailable

26

HOLDER,OIL FELT

21038-002

Unavailable

27

NUT-HEX

311B0500

$0.51
