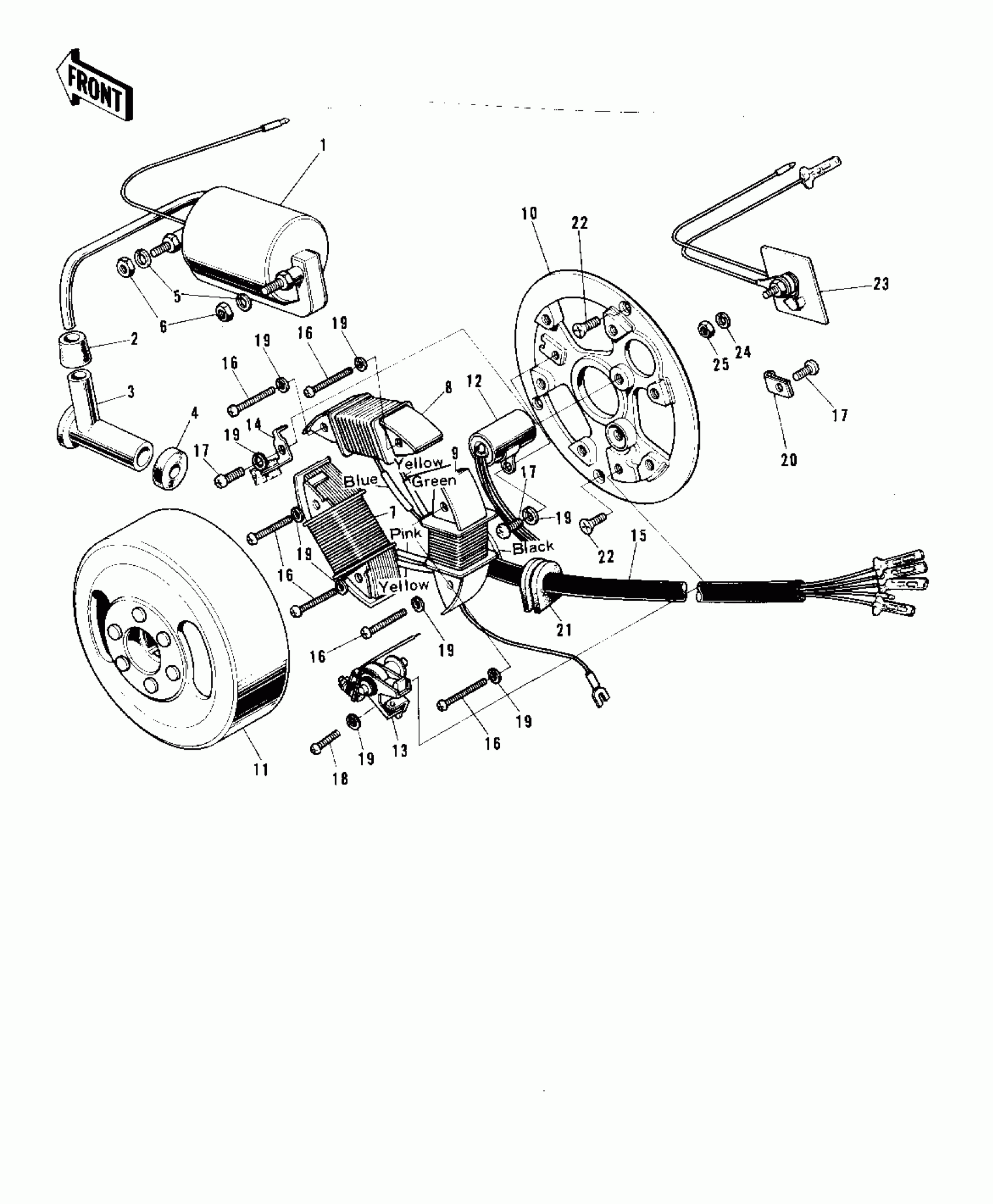

Kawasaki G5-C IGNITION/GENERATOR/RECTIFIER ('72-'73 G5 Diagram
#
Description
Price
1
COIL,IGNITION
21121-1047
Unavailable
2
GROMMET,HIGH TENSION
21132-005
Unavailable
3
CAP-SPARK PLUG
21130-016
Unavailable
4
GROMMET,PLUG CAP
21131-004
Unavailable
5
WASHER SPRING 6MM
461F0600
Unavailable
6
NUT 6MM
311B0600
Unavailable
7~21
MAGNETO FLYWHEEL
21002-018
Unavailable
7
COIL LIGHTING B
21047-007
Unavailable
8
COIL LIGHTING B
21047-011
Unavailable
9
COIL PRIMARY
21049-006
Unavailable
10
PLATE-COIL,MAGNETO
21048-1002
Unavailable
11
MAGNETO ASSY
21002-1055
Unavailable
12
CONDENSER
21013-006
Unavailable
13
BREAKER,CONTACT
21008-006
Unavailable
14
BRUSH,OIL
21019-005
Unavailable
15
WIRING HARNESS MAG
21029-014
Unavailable
16
SCREW-PAN-CROS
220E0430
Unavailable
17
SCREW PAN HEAD 4X6
220B0406
Unavailable
18
SCREW-PAN-CRSOSS,4X1
220B0412
Unavailable
19
WASHER SPRING 4MM
461F0400
Unavailable
20
CLAMP,WIRING HARNESS
21037-002
Unavailable
21
GROMMET
21017-002
Unavailable
22
SCREW-CSK-CROS,6X14
221B0614
Unavailable
23
RECTIFIER
21061-5001
Unavailable
24
WASHER SPRING 5MM
461F0500
Unavailable
25
NUT-HEX
311B0500
Unavailable
