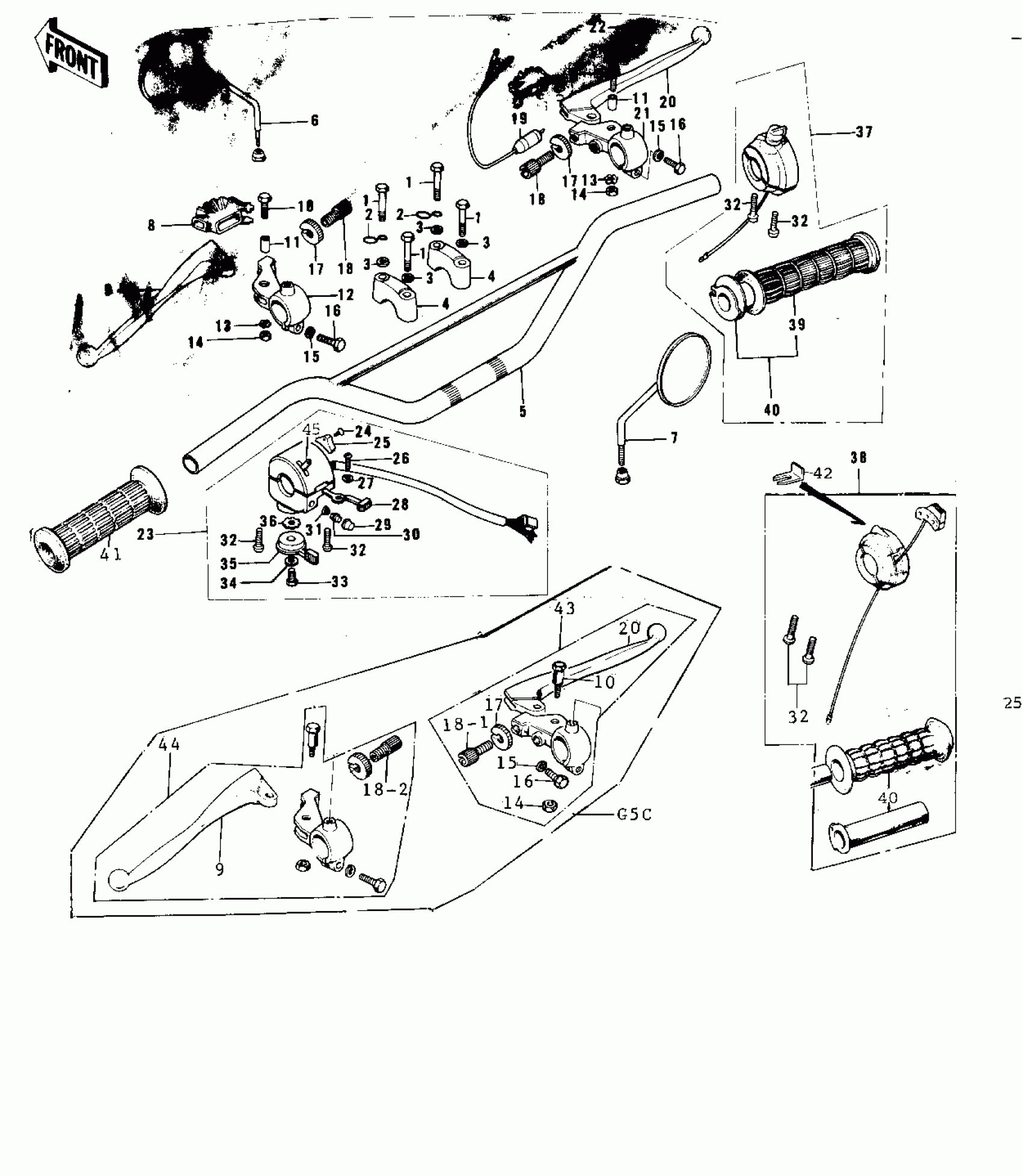

Kawasaki G5-C HANDLEBAR ('74-'75 B/C) Diagram

#

Description
Price

1

BOLT 8X38

92001-1405

$13.05

2

CLAMP-CABLE

92037-075

Unavailable

3

WASHER SPRING 8MM

461F0800

Unavailable

4

HOLDER-HANDLE,UPP

46012-008

$34.49

5

HANDLEBAR

46004-018

$110.49

6

MIRROR-ASSY,LH

56003-009

$61.57

7

MIRROR-ASSY,RH

56002-020

$68.40

8

DUST COVER

46071-002

Unavailable

8

BOOT,LEVER HOLDER

49006-1017

$14.71

9

LEVER-GRIP,CLUTCH

46092-015

$19.69

10

BOLT HEX HEAD 5X20

92007-020

Unavailable

10

BOLT,5X22

92007-046

$6.34

11

COLLAR LEVER

46059-011

Unavailable

12

HOLDER,F.BLACK

46094-011-21

$36.50

13

WASHER LOCK 5MM

464H0500

Unavailable

14

NUT-HEX,5MM

312B0500

Unavailable

14

NUT,LOCK,5MM

92019-014

$4.00

15

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

16

BOLT HEX HEAD 6X25

110N0625

Unavailable

16

BOLT-UPSET

112G0625

Unavailable

17

NUT,CABLE ADJUST LOCK,8MM

46056-005

$7.04

18

SCREW ADJUST

46055-006

Unavailable

18-1

SCREW,CABLE ADJUST

46055-010

$29.42

18-2

SCREW,CABLE ADJUST,8MM

46055-009

$14.99

19

SWITCH,FR BRAKE LAMP

27021-004

Unavailable

20

LEVER-GRIP,FRONT BRAKE

46058-004

$22.90

21

HOLDER,BRAKE LEVER,FR,F.BLACK

46060-009-21

Unavailable

22

CAP-RR VIEW MIRROR

92102-009

Unavailable

23

CASE ASSY,L.H,BLACK

46091-019-10

Unavailable

23

HOUSING-ASSY-CONTROL,LH

46091-040

Unavailable

24

SCREW CNTSNK HD 3X8

221B0308A

Unavailable

25, 26

L.H GRIP SWITCH KIT

99990-531

Unavailable

25

KNOB-L.H SWITCH

46044-011

Unavailable

26

SCREW PAN HEAD 3X5

220B0305A

$0.63

27

WASHER

92095-010

Unavailable

28

KNOB-SWITCH

46044-010

Unavailable

29

SWITCH,PUSH BUTTON

27010-1009

$7.31

30

SWITCH,PUSH BUTTON

27010-1009

$7.31

31

SWITCH,PUSH BUTTON

27010-1009

$7.31

32

SCREW-PAN-CROS,5X25

220B0525

$3.24

33

BOLT HEX HEAD 6X8

110B0608

Unavailable

34

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

35

LEVER STARTER

46096-008-10

$23.59

36

WASHER LOCK

92095-012

Unavailable

37

CASE ASSY,R.H,BLACK

46018-020-10

Unavailable

38

CASE ASSY,R.H

46018-036

Unavailable

39

RUBBER-R.H. GRIP

46061-013

Unavailable

40

GRIP ASSY-THROTTLE

46019-020

Unavailable

40

GRIP ASSY,THROTTLE

46019-034

$47.40

41

RUBBER-L.H.GRIP

46075-018

Unavailable

41

RUBBER-L.H GRIP

46075-019

Unavailable

42

HOLDER,CONTROL CABLE

46037-023

Unavailable

43

LEVER ASSY,FRONT BRK

46021-029

Unavailable

44

LEVER-ASSY-GRIP,CLUTCH

46076-044

$42.46

45

SWITCH ASSY,L.H

46089-015

Unavailable
