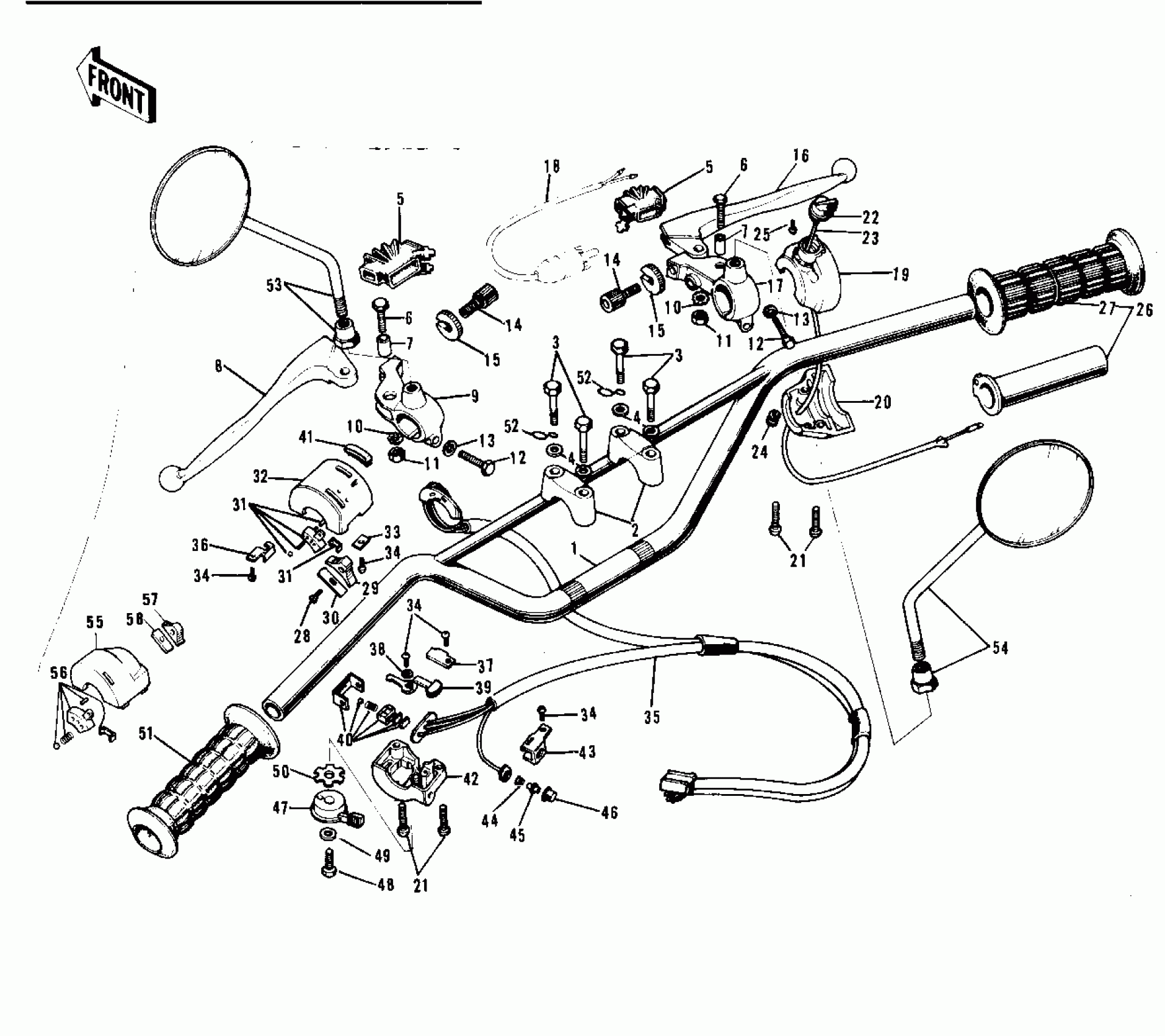

Kawasaki G5-C HANDLEBAR ('72-'73 G5-A) Diagram
#
1
HANDLEBAR
46004-018
Unavailable
2
HOLDER-HANDLE,UPP
46012-008
Unavailable
3
BOLT 8X38
92001-1405
Unavailable
4
WASHER SPRING 8MM
461F0800
Unavailable
5
DUST COVER
46071-002
Unavailable
6
BOLT HEX HEAD 5X20
92007-020
Unavailable
7
COLLAR LEVER
46059-011
Unavailable
8
LEVER-GRIP,CLUTCH
46092-015
Unavailable
9
HOLDER,F.BLACK
46094-011-21
Unavailable
10
WASHER LOCK 5MM
464H0500
Unavailable
11
NUT-HEX,5MM
312B0500
Unavailable
12
BOLT HEX HEAD 6X25
110N0625
Unavailable
13
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
14
SCREW,CABLE ADJUST
46055-010
Unavailable
15
NUT,CABLE ADJUST LOCK,8MM
46056-005
Unavailable
16
LEVER-GRIP,FRONT BRAKE
46058-004
Unavailable
17
HOLDER,BRAKE LEVER,FR,F.BLACK
46060-009-21
Unavailable
18
SWITCH,FR BRAKE LAMP
27021-004
Unavailable
19~27
CASE ASSY,R.H,BLACK
46018-020-10
Unavailable
19
CASE-RH UPPER
46041-008
Unavailable
20
CASE-RH LOWER
46023-008
Unavailable
21
SCREW, PAN HEAD, 5 X 25
220B0525A
Unavailable
22
SWITCH-ENGINE STOP
46027-008
Unavailable
23
WIRING HARNESS-STP SW
46082-021
Unavailable
24
GROMMET-WIRING HARNES
92071-060
Unavailable
25
SCREW PAN HEAD 3X5
220B0305A
Unavailable
26,27
GRIP ASSY-THROTTLE
46019-020
Unavailable
27
RUBBER-R.H. GRIP
46061-013
Unavailable
21,28~
CASE ASSY-L.H.
46091-007
Unavailable
28
SCREW CNTSNK HD 3X8
221B0308A
Unavailable
29
KNOB-LH SWITCH
46044-009
Unavailable
30
SPRING-L.H SW KNOB,B
46031-006
Unavailable
31
SWITCH-L.H.
46089-008
Unavailable
32
CASE-L.H. UPPER
46086-015
Unavailable
33
HOLDER-L.H SW UPPER,B
46085-019
Unavailable
34
SCREW PAN HEAD 3X5
220B0305A
Unavailable
35
WIRING HARNESS-LH SW
46082-020
Unavailable
36
HOLDER-LH SW UPPER,A
46085-020
Unavailable
37
HOLDER-L.H SW LOWER,A
46085-016
Unavailable
38
WASHER
92095-010
Unavailable
39
KNOB-SWITCH
46044-010
Unavailable
40
SLIDE BLOCK AY-L.H SW
46089-007
Unavailable
41
CAP-L.H. SWITCH
46089-009
Unavailable
42
CASE-L.H. LOWER
46077-017
Unavailable
43
HOLDER-L.H SW LOWER,B
46085-017
Unavailable
44
SWITCH,PUSH BUTTON
27010-1009
Unavailable
45
SWITCH,PUSH BUTTON
27010-1009
Unavailable
46
SWITCH,PUSH BUTTON
27010-1009
Unavailable
47
LEVER STARTER
46096-008-10
Unavailable
48
BOLT HEX HEAD 6X8
110B0608
Unavailable
48
BOLT-UPSET,6X8
112B0608
Unavailable
49
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
50
WASHER LOCK
92095-012
Unavailable
51
RUBBER-L.H.GRIP
46075-018
Unavailable
52
CLAMP-CABLE
92037-075
Unavailable
53
MIRROR-ASSY,LH
56003-009
Unavailable
54
MIRROR-ASSY,RH
56002-020
Unavailable
21,283
CASE ASSY,L.H
46091-019
Unavailable
55
CASE-L.H UPPER,BLACK
46086-016-21
Unavailable
56
SWITCH ASSY,L.H
46089-012
Unavailable
57
KNOB-L.H SWITCH
46044-011
Unavailable
58
SPRING L.H SW KNOB
46031-003
Unavailable
