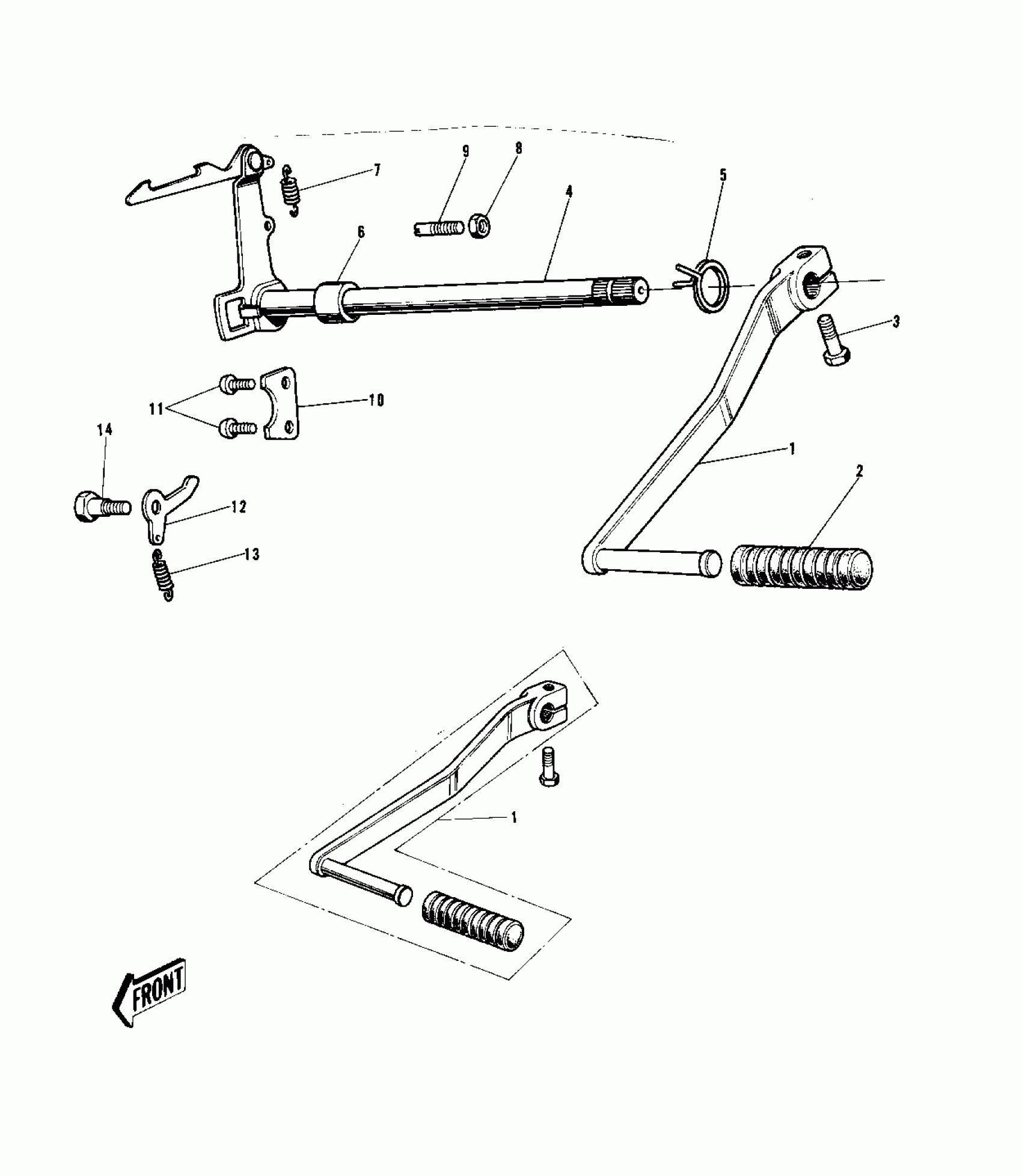

Kawasaki G5-C GEAR CHANGE MECHANISM ('74-'75 B/C) Diagram

#

Description
Price

1,2

LEVER-ASSY-CHANGE

13242-004

Unavailable

2

DAMPER,CHANGE PEDAL

13157-004

Unavailable

3

BOLT-UPSET,6X20

112G0620

Unavailable

4

LEVER ASSY,GEAR CHNG

13161-1014

Unavailable

5

SPRING,TENSION

92081-1129

$7.48

6

COLLAR,12X18X11.5

92027-121

Unavailable

7

SPRING,CHANGE DRUM LEVER

92083-012

$3.69

8

NUT 8MM

312B0800

Unavailable

9

PIN CHANGE PEDAL SPRG

92043-057

Unavailable

10

PLATE CHNG DRUM PSTN

13169-002

Unavailable

11

SCREW-PAN-CROS,6X14

220B0614

$1.32

12

LEVER GEAR CHNG DRUM

13168-005

Unavailable

13

SPRING,CHANGE DRUM LEVER

92083-012

$3.69

14

BOLT,CHANGE DRUM LEVER

92150-1450

$4.71
