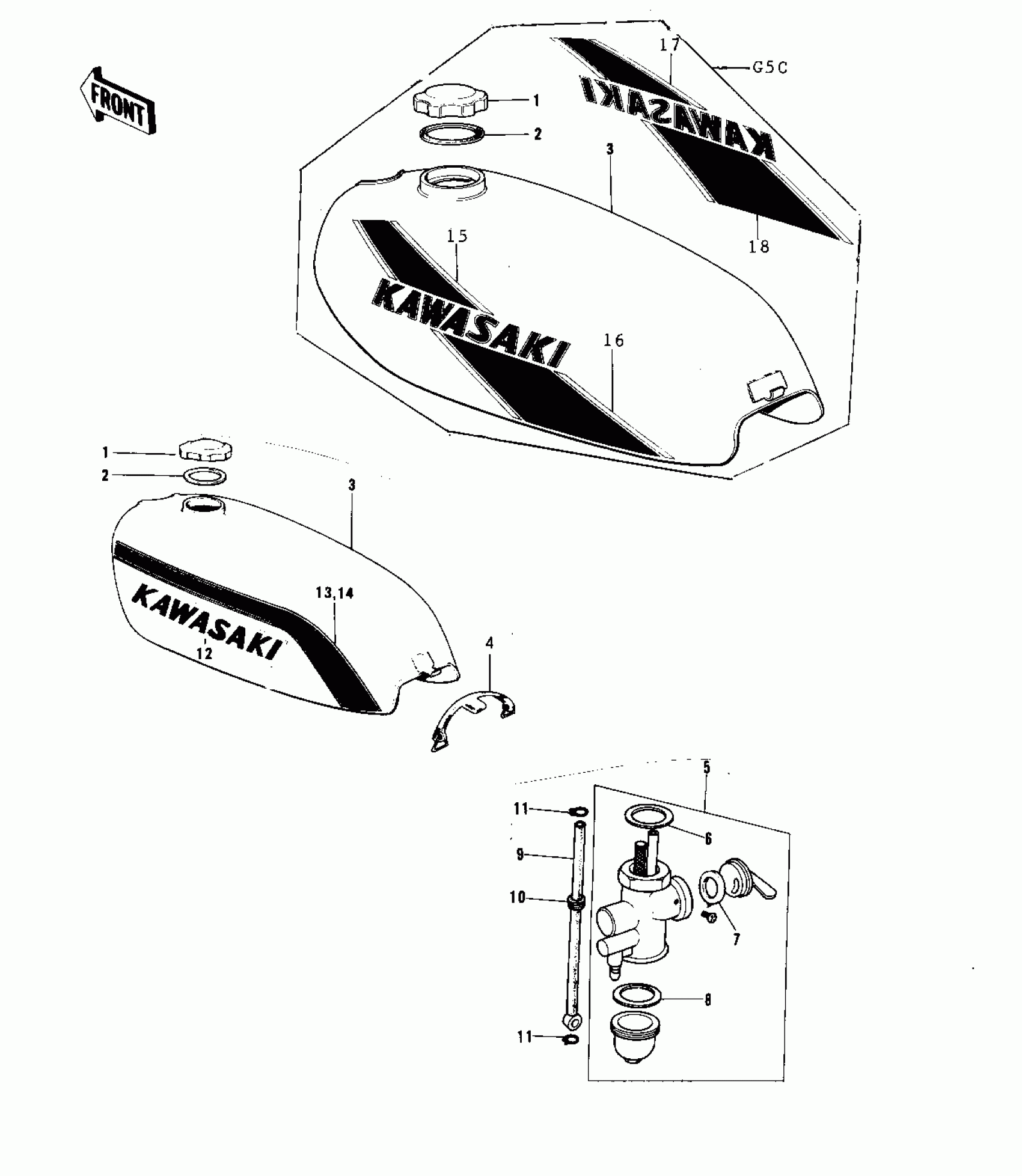

Kawasaki G5-C FUEL TANK ('74-'75 B/C) Diagram
#
Description
Price
1
CAP,FUEL TANK
51048-1013
Unavailable
2
GASKET,FUEL TANK CAP
51059-011
Unavailable
3
TANK-FUEL,C.BLUE
51001-075-1S
Unavailable
3
TANK-FUEL,C.ORANGE
51001-075-1T
Unavailable
3
TANK-FUEL,C.RED
51001-075-1P
Unavailable
3
TANK-FUEL,C.GOLD
51001-075-1V
Unavailable
4
BAND-FUEL TANK
92072-029
Unavailable
4
BAND-FUEL TANK
92072-050
Unavailable
5
TAP-ASSY,FUEL
51023-1123
Unavailable
5
TAP-ASSY,FUEL
51023-1123
Unavailable
6
GASKET,FUEL TAP JOINT
11009-1567
Unavailable
7
'O' RING FUEL COCK
92065-062
Unavailable
8
GASKET FUEL COCK CUP
51037-008
Unavailable
9
PIPE-FUEL
51044-031
Unavailable
9
PIPE-OIL
92059-072
Unavailable
10
GROMMET,PIPE
92071-038
Unavailable
11
CLAMP,TUBE
92037-010
Unavailable
12
DECAL-FUEL TANK
56013-051
Unavailable
13
DECAL, FUEL TANK STRIPE LH
56027-163
Unavailable
14
DECAL, FUEL TANK STRIPE RH
56027-164
Unavailable
15
DECAL, FUEL TANK STRIPE UPPER
56027-247-SP
Unavailable
16
DECAL, FUEL TANK STRIPE LOWER
56027-248-SP
Unavailable
17
DECAL, FUEL TANK STRIPE UPPER
56027-249-SP
Unavailable
18
DECAL, FUEL TANK STRIPE LOWER
56027-250-SP
Unavailable
