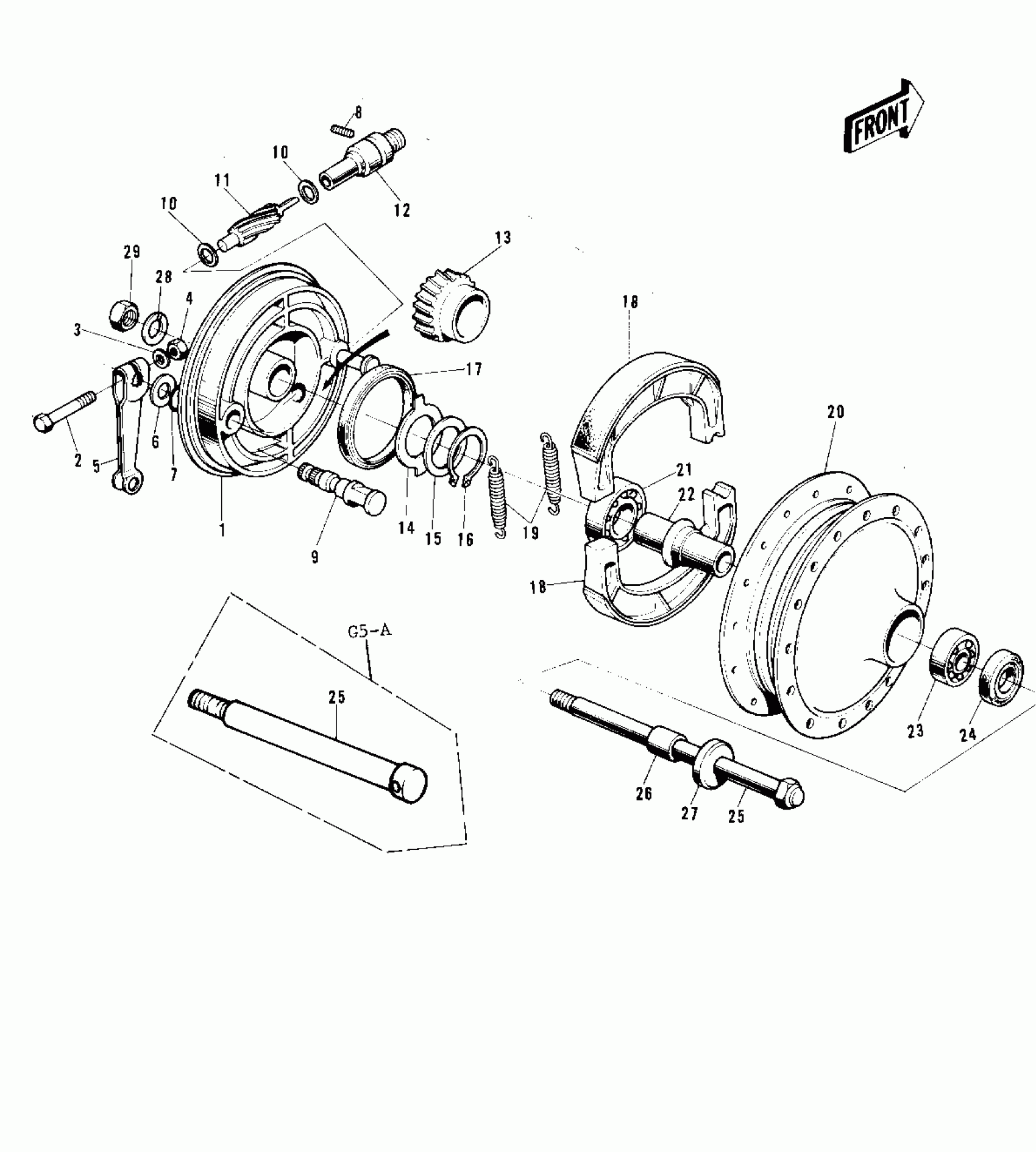

Kawasaki G5-C FRONT HUB/BRAKE ('72-'73 G5-A) Diagram

#

Description
Price

1~19

PANEL-ASY,FR BRK BUFF

41035-071-80

Unavailable

2

BOLT-UPSET

112G0630

Unavailable

2

BOLT-UPSET

112G0630

Unavailable

3

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

4

NUT 6MM

311B0600

Unavailable

5

LEVER-BRAKE CAM

41053-005

$12.24

6

WASHER BRAKE CAM SHT

41052-001

Unavailable

7

RING-O,BRAKE CAM

92055-004

$4.25

8

SCREW BUSHING SET

41070-001

Unavailable

9

CAM-BRAKE

41050-018

$21.98

10

WASHER,5.1X9X0.4

41063-001

$4.17

11

GEAR-METER SCREW,8T

41060-004

$20.37

12

BUSH SPEEDMETER CABLE

41062-001

$10.00

13

GEAR SPEEDOMETER

41059-006

$18.58

14

RECIEVER SPEED GEAR

41064-002

$1.85

15

WASHER SPEED GR THRST

41065-002

$2.80

16

CIRCLIP-TYPE-C,15MM

480J1500

$1.85

17

SEAL-OIL,BRAKE PANEL

92050-002

$13.88

18

SHOE-BRAKE

41048-1085

$20.89

19

SPRING,BRAKE SHOE

92081-1766

$6.39

20~21

DRUM-ASSY,FR BRK

41034-1040

Unavailable

21

BEARING BALL #6300Z

601B6300Z

Unavailable

22

COLLAR,L=51

41039-002

$10.54

23

BEARING BALL #6200

601B6200

$14.07

24

OIL SEAL FRONT DRUM

92050-003

Unavailable

25

AXLE,FR

41068-039

Unavailable

25

AXLE,FR

41068-039

Unavailable

26

COLLAR FRONT HUB R.H

41069-002

Unavailable

27

DUST SHIELD FRNT DRUM

41042-002

Unavailable

28

WASHER SPRING 10MM

461F1000

Unavailable

29

NUT,10MM

42045-005

$6.34
