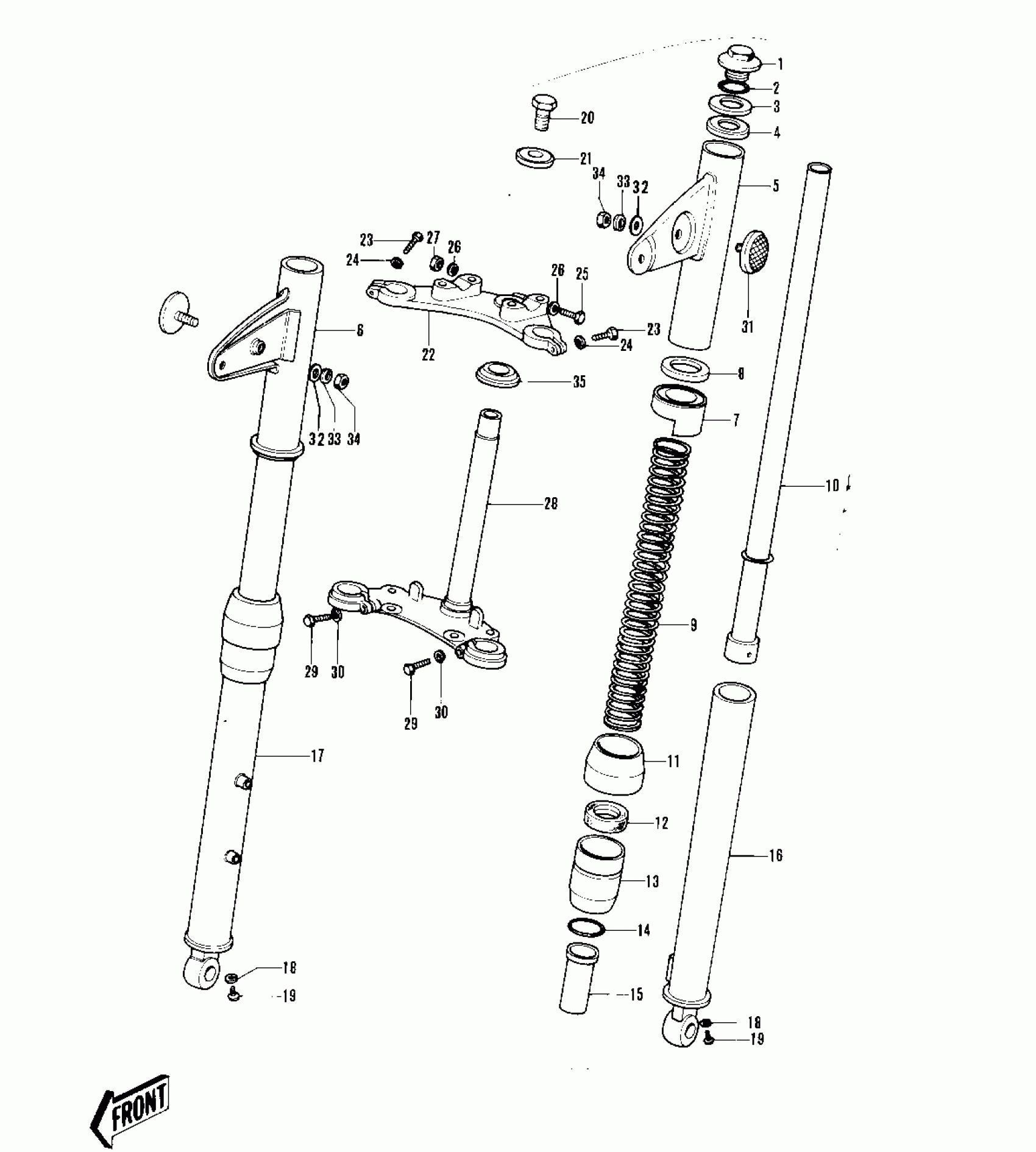

Kawasaki G5-C FRONT FORK ('72-'73 G5-A) Diagram
#
1~30
FORK-FRONT,F.BLACK
44001-100-21
Unavailable
1
BOLT-FORK TOP
44041-036
Unavailable
2
'O' RING INNER TUBE
44046-014
Unavailable
3
GASKET-FORK COVER
44045-037
Unavailable
4
WASHER-FORK COVER
44043-046
Unavailable
5
COVER-L.H FORK,F.BLK
44033-051-21
Unavailable
6
COVER-R.H FORK F BLK
44034-051-21
Unavailable
7
GUIDE-FORK COVER
44030-010
Unavailable
8
GASKET FORK COVER
44045-012
Unavailable
9
SPRING-FORK
44026-040
Unavailable
10
TUBE-FORK INNER
44013-034
Unavailable
11
DUST SHIELD FORK
44010-006
Unavailable
12
OIL SEAL
92049-1049
Unavailable
13
NUT FORK OUTER TUBE
44007-007
Unavailable
14
'O' RING OUTER TUBE
44046-012
Unavailable
15
GUIDE-FORK INNER TUBE
44015-013
Unavailable
16
TUBE,LH,FORK OUTER
44005-043
Unavailable
17
TUBE,RH,FORK OUTER
44006-041
Unavailable
18
GASKET,FORK DRAIN PLUG
44045-002
Unavailable
19
SCREW PAN HEAD 4X8
220B0408
Unavailable
20
BOLT STRNG STEM HEAD
44041-007
Unavailable
21
WASHER STRNG STEM HD
44043-016
Unavailable
22
HOLDER-FORK UPPER
44039-047
Unavailable
23
BOLT-STEERING STEM HD
44041-044
Unavailable
24
WASHER SPRING 8MM
461F0800
Unavailable
25
BOLT-HEX HEAD.8M/M
44041-045
Unavailable
26
WASHER PLAIN 8MM
410B0800
Unavailable
27
NUT,LOCK,8MM
92015-1124
Unavailable
28
STEM-STEERING
44037-052
Unavailable
29
BOLT, PINCH, 10MM
44041-010
Unavailable
30
WASHER SPRING 10MM
461F1000
Unavailable
31
REFLECTOR-REFLEX,FRNT
28001-011
Unavailable
32
WASHER-PLAIN,5MM
411B0500
Unavailable
33
WASHER SPRING 5MM
461F0500
Unavailable
34
NUT-HEX
311B0500
Unavailable
35
RACE,LOWER BEARING
92047-004
Unavailable
