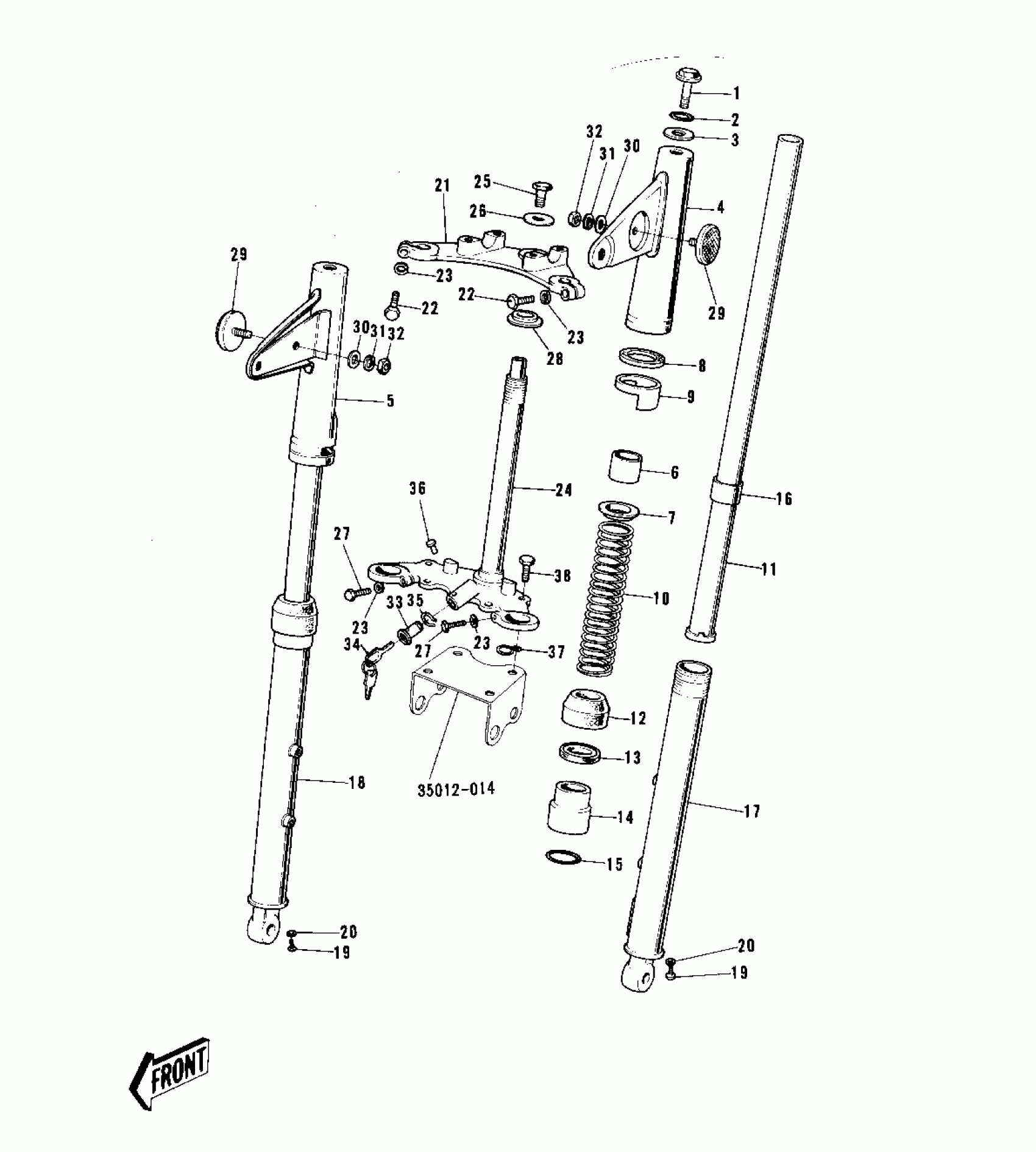

Kawasaki G5-C FRONT FORK ('72-'73 G5) Diagram
#
1~27
FRONT FORK ASY,BLACK
44001-079-21
Unavailable
1~27
FORK-FRONT,BLACK
44001-091-21
Unavailable
1
BOLT-FORK TOP
44041-036
Unavailable
2
'O' RING FORK FIT BLT
44046-013
Unavailable
3
WASHER FORK COVER
44043-035
Unavailable
4
COVER-LH FORK,BLACK
44033-044-21
Unavailable
5
COVER-RH FORK,BLACK
44034-043-21
Unavailable
6
SPACER-FRK SPRG GUIDE
44028-024
Unavailable
7
GUIDE-FORK SPRING
44029-020
Unavailable
8
GASKET FORK COVER
44045-012
Unavailable
9
GUIDE-FORK COVER
44064-003
Unavailable
10
SPRING-FORK
44026-039
Unavailable
11
TUBE-FORK INNER
44013-033
Unavailable
12
DUST SHIELD FORK
44010-006
Unavailable
13
OIL SEAL
92049-1049
Unavailable
14
NUT FORK OUTER TUBE
44007-007
Unavailable
15
'O' RING OUTER TUBE
44046-012
Unavailable
16
GUIDE FORK INNER TUBE
44015-012
Unavailable
17
TUBE,LH,FORK OUTER
44005-042
Unavailable
18
TUBE,RH,FORK OUTER
44006-040
Unavailable
19
SCREW PAN HEAD 4X8
220B0408
Unavailable
20
GASKET,FORK DRAIN PLUG
44045-002
Unavailable
21
HEAD-STEERING STEM
44039-041
Unavailable
22
BOLT-HEX HEAD 10MM
44041-039
Unavailable
23
WASHER SPRING 10MM
461F1000
Unavailable
24
STEM-STEERING
44037-044
Unavailable
25
BOLT STRNG STEM HEAD
44041-007
Unavailable
26
WASHER STRNG STEM HD
44043-016
Unavailable
27
BOLT, PINCH, 10MM
44041-010
Unavailable
28
RACE,LOWER BEARING
92047-004
Unavailable
29
REFLECTOR-REFLEX,FRNT
28001-011
Unavailable
30
WASHER-PLAIN,5MM
411B0500
Unavailable
31
WASHER SPRING 5MM
461F0500
Unavailable
32
NUT-HEX
311B0500
Unavailable
33,34
STRNG LOCK ASSY (OPT)
27016-026
Unavailable
34
KEY SET,#170
27008-042-70
Unavailable
34
KEY SET,#171
27008-042-71
Unavailable
34
KEY SET,#172
27008-042-72
Unavailable
34
KEY SET,#173
27008-042-73
Unavailable
34
KEY SET,#174
27008-042-74
Unavailable
35
CIRCLIP-STEERING LOCK
92033-024
Unavailable
36
RIVET
92099-001
Unavailable
37
CLAMP,CABLE
92037-046
Unavailable
38
BOLT,6X10
112G0610
Unavailable
38
BOLT,6X10
112G0610
Unavailable
