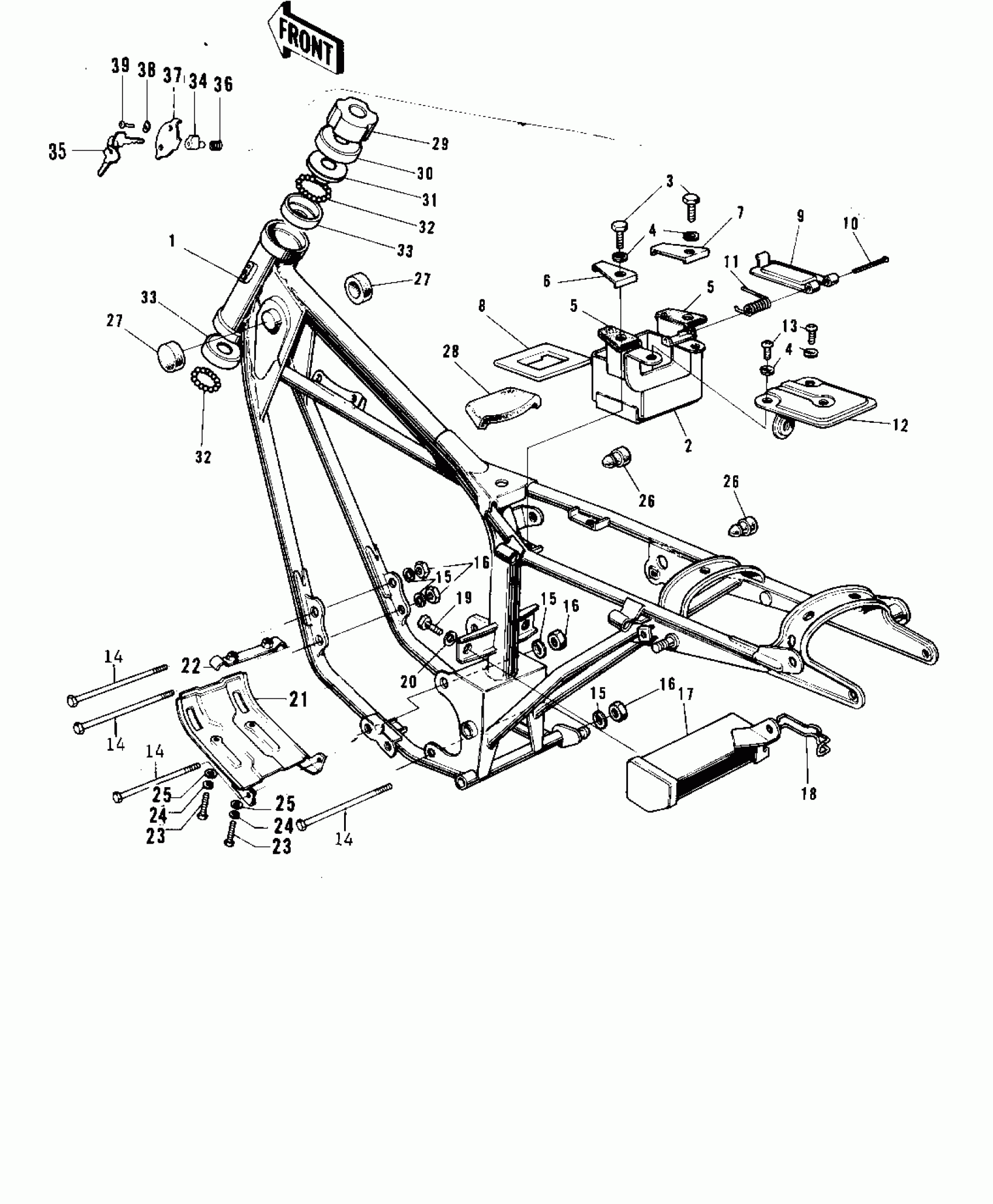

Kawasaki G5-C FRAME/FRAME FITTINGS (G5-A) Diagram

#

Description
Price

1

FRAME

32002-057

$269.35

2

CASE-BATTERY

32097-021

$29.07

3

BOLT-UPSET

112G0618

Unavailable

3

BOLT-UPSET

112G0618

Unavailable

4

WASHER SPRING 6MM

461F0600

Unavailable

5

DAMPER RUBBER

92075-108

Unavailable

6

PLATE-BATTERY CASE,LH

32101-003

Unavailable

7

PLATE-BATTERY CASE,RH

32101-004

Unavailable

8

MAT-BATTERY

32103-024

Unavailable

9

BAND-BATTERY

92072-037

Unavailable

10

PIN-COTTER,2.5X35

550D2535

Unavailable

11

SPRING-RETURN

92083-017

Unavailable

12

BRACKET-TRN SGNL RELY

32064-007

$3.68

13

SCREW PAN HEAD 6X10

220B0610

Unavailable

14

BOLT,FLANGED,10X115

92001-1603

$10.25

15

WASHER SPRING 10MM

461F1000

Unavailable

16

NUT-HEX-FINE,10MM

314B1000

Unavailable

17

CASE-TOOL

32098-018

$88.88

18

CLAMP,TOOL CASE

92079-002

$14.81

19

BOLT,6X14

110B0614

Unavailable

19

BOLT-UPSET 6X14

112B0614

Unavailable

20

WASHER PLAIN 6MM

411B0600

Unavailable

21

GUARD,ENGINE

55011-018

$35.82

22

BRACKET,ENGINE GUARD

55016-007

Unavailable

23

BOLT-UPSET 6X14

112B0614

Unavailable

23

BOLT-UPSET 6X14

112B0614

Unavailable

24

WASHER SPRING 6MM

461F0600

Unavailable

25

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

26

GROMMET

92071-056

$3.39

27

DAMPER,FUEL TANK

92075-101

$4.93

28

DAMPER,FUEL TANK

92075-106

$16.20

29

NUT STEERING STEM LCK

92090-006

$14.24

30

CAP,STEERING STEM

46098-004

$5.37

31

RACE,UPPER BEARING

92047-005

$11.59

32

BALL-STEEL,3/16

600A0600

$1.02

33

RACE,BEARING

92048-004

Unavailable

34,35

LOCK ASSY-STEERING

27016-029

$26.31

35

KEY SET-STRNG #270

27018-015-70

$4.93

35

KEY SET-STRNG #271

27018-015-71

Unavailable

35

KEY SET-STRNG #272

27018-015-72

$5.14

35

KEY SET-STRNG #273

27018-015-73

$5.17

35

KEY SET-STRNG #274

27018-015-74

Unavailable

36

SPRING,STEERING LOCK

27032-001

Unavailable

37

CAP,STEERING LOCK

11012-1134

$5.95

38

WASHER,WAVE

92097-003

$3.57

39

SCREW,3.51MM

92008-007

$3.27
