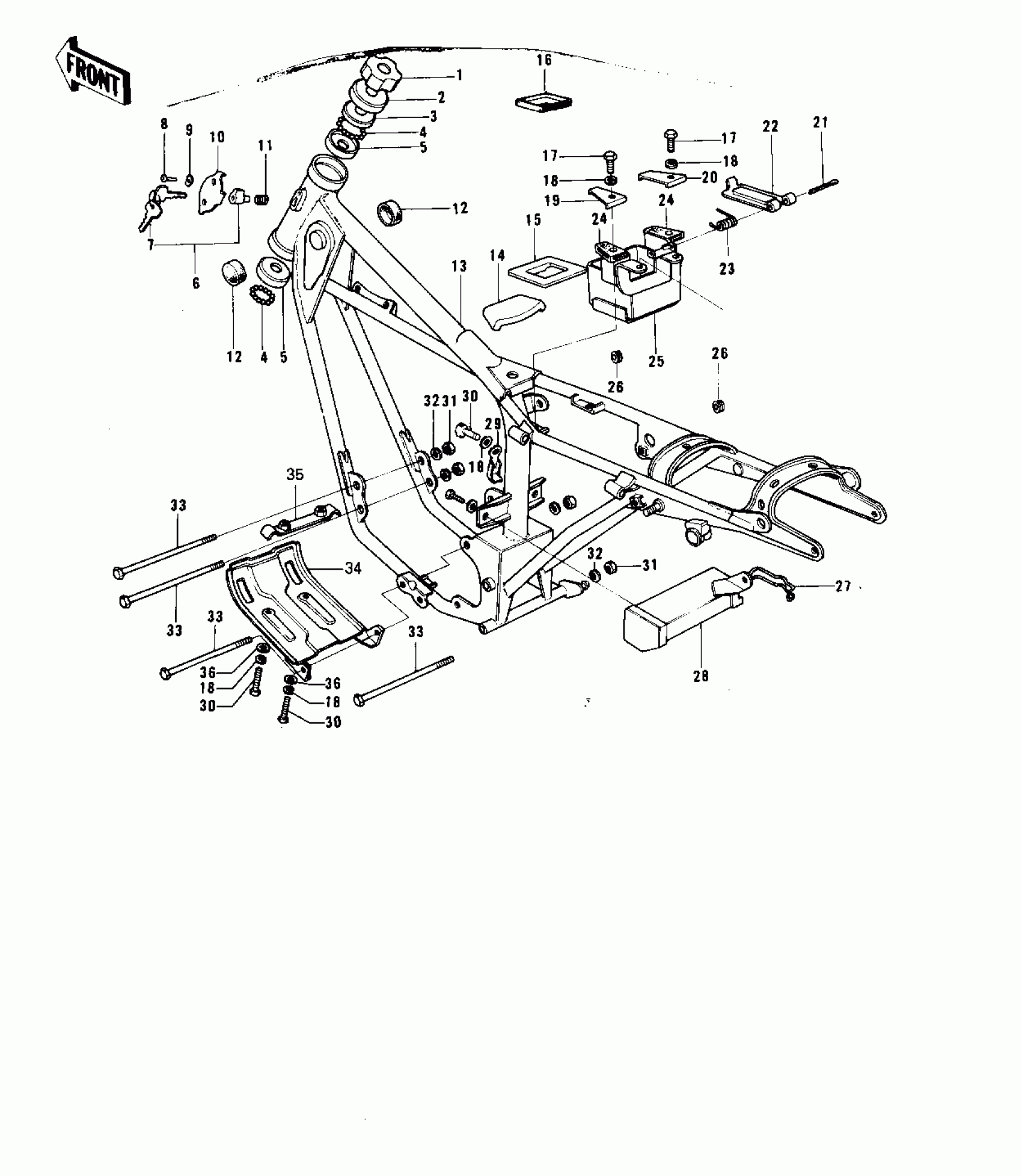

Kawasaki G5-C FRAME/FRAME FITTINGS ('74-'75 B/C) Diagram
#
1
NUT STEERING STEM LCK
92090-006
Unavailable
2
CAP,STEERING STEM
46098-004
Unavailable
3
RACE,UPPER BEARING
92047-005
Unavailable
4
BALL-STEEL,3/16
600A0600
Unavailable
5
RACE,BEARING
92048-004
Unavailable
6
LOCK-ASSY,STEERING
27016-042
Unavailable
7
KEY SET,#401
27008-063-01
Unavailable
7
KEY SET,#402
27008-063-02
Unavailable
7
KEY SET,#403
27008-063-03
Unavailable
7
KEY SET,#404
27008-063-04
Unavailable
7
KEY SET,#405
27008-063-05
Unavailable
7
KEY SET,#406
27008-063-06
Unavailable
7
KEY SET,#407
27008-063-07
Unavailable
7
KEY SET,#408
27008-063-08
Unavailable
7
KEY SET,#409
27008-063-09
Unavailable
7
KEY SET,#410
27008-063-10
Unavailable
7
KEY SET,#411
27008-063-11
Unavailable
7
KEY SET,#412
27008-063-12
Unavailable
7
KEY SET,#413
27008-063-13
Unavailable
7
KEY SET,#414
27008-063-14
Unavailable
7
KEY SET,#415
27008-063-15
Unavailable
8
SCREW,3.51MM
92008-007
Unavailable
9
WASHER,WAVE
92097-003
Unavailable
10
CAP,STEERING LOCK
11012-1134
Unavailable
11
SPRING,STEERING LOCK
27032-001
Unavailable
12
DAMPER,FUEL TANK
92075-101
Unavailable
13
FRAME
32002-072
Unavailable
14
DAMPER,FUEL TANK
92075-106
Unavailable
15
MAT-BATTERY
32103-024
Unavailable
16
MAT-BATTERY
32103-018
Unavailable
17
BOLT-UPSET
112G0618
Unavailable
18
WASHER SPRING 6MM
461F0600
Unavailable
19
PLATE-BATTERY CASE,LH
32101-003
Unavailable
20
PLATE-BATTERY CASE,RH
32101-004
Unavailable
21
PIN-COTTER,2.5X35
550D2535
Unavailable
22
BAND-BATTERY
92072-037
Unavailable
23
SPRING-RETURN
92083-017
Unavailable
24
DAMPER RUBBER
92075-108
Unavailable
25
CASE,BATTERY
32097-034
Unavailable
26
GROMMET
92071-056
Unavailable
27
SPARK PLUG B6HS
B6HS
Unavailable
28
CASE-TOOL
32098-018
Unavailable
29
CLAMP-BREATHER PIPE
92037-070
Unavailable
30
BOLT-UPSET 6X14
112B0614
Unavailable
31
NUT-HEX-FINE,10MM
314B1000
Unavailable
32
WASHER SPRING 10MM
461F1000
Unavailable
33
BOLT,FLANGED,10X115
92001-1603
Unavailable
34
GUARD,ENGINE
55011-018
Unavailable
35
BRACKET,ENGINE GUARD
55016-007
Unavailable
36
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
