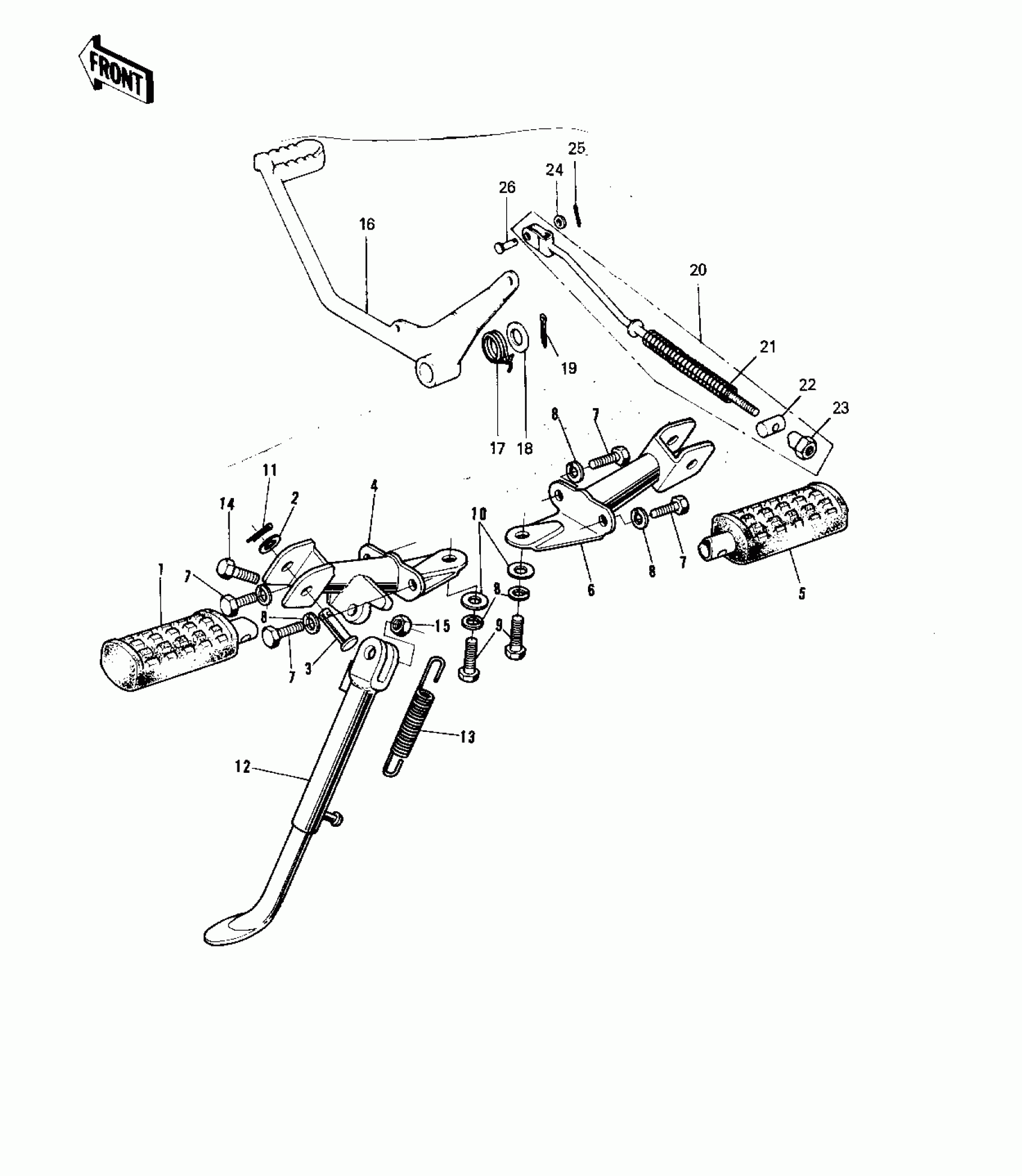

Kawasaki G5-C FOOTRESTS/STAND/BRAKE PEDAL ('74-'75 B/C Diagram

#

Description

Price

1

STEP-ASSY,FR,LH

34027-1114

Unavailable

2

WASHER PL 22.5X36X2.3

92022-204

Unavailable

3

PIN,8X31

92043-080

Unavailable

4

HOLDER,FOTREST BAR,LH

34003-049

Unavailable

5

STEP-ASSY,FR,RH

34027-1115

Unavailable

6

HOLDER-STEP,RH

34003-050

Unavailable

7

BOLT-SMALL-UPSET,8X18

115G0818

Unavailable

8

WASHER SPRING 8MM

461F0800

Unavailable

9

BOLT-SMALL-UPSET,8X18

115G0818

Unavailable

10

WASHER PLAIN 8MM

410B0800

Unavailable

11

PIN COTTER 2.5X16

550D2516

Unavailable

12

STAND-SIDE

34024-037

Unavailable

13

SPRING MAIN STAND

34023-005

Unavailable

14

BOLT,10X28

113G1028

Unavailable

15

NUT-HEX-FINE,10MM

315B1000

Unavailable

16

LEVER-BRAKE,PEDAL

43001-056

Unavailable

17

SPRING,BRAKE PEDAL

43005-007

Unavailable

18

WASHER-PLAIN-SMALL,14MM

410B1400

Unavailable

19

PIN-COTTER,3.0X30

550D3030

Unavailable

20~23

ROD-ASSY-BRAKE

43010-5001

Unavailable

21

SPRING,BRAKE ROD

43012-001

Unavailable

22

PIN,BRAKE ROD

92043-039

Unavailable

23

NUT,BRAKE ROD

92015-042

Unavailable

24

WASHER-PLAIN-SMALL,6MM

410B0600

Unavailable

25

PIN COTTER 2.0X15

550D2015

Unavailable

26

PIN,6X17

92043-064

Unavailable
