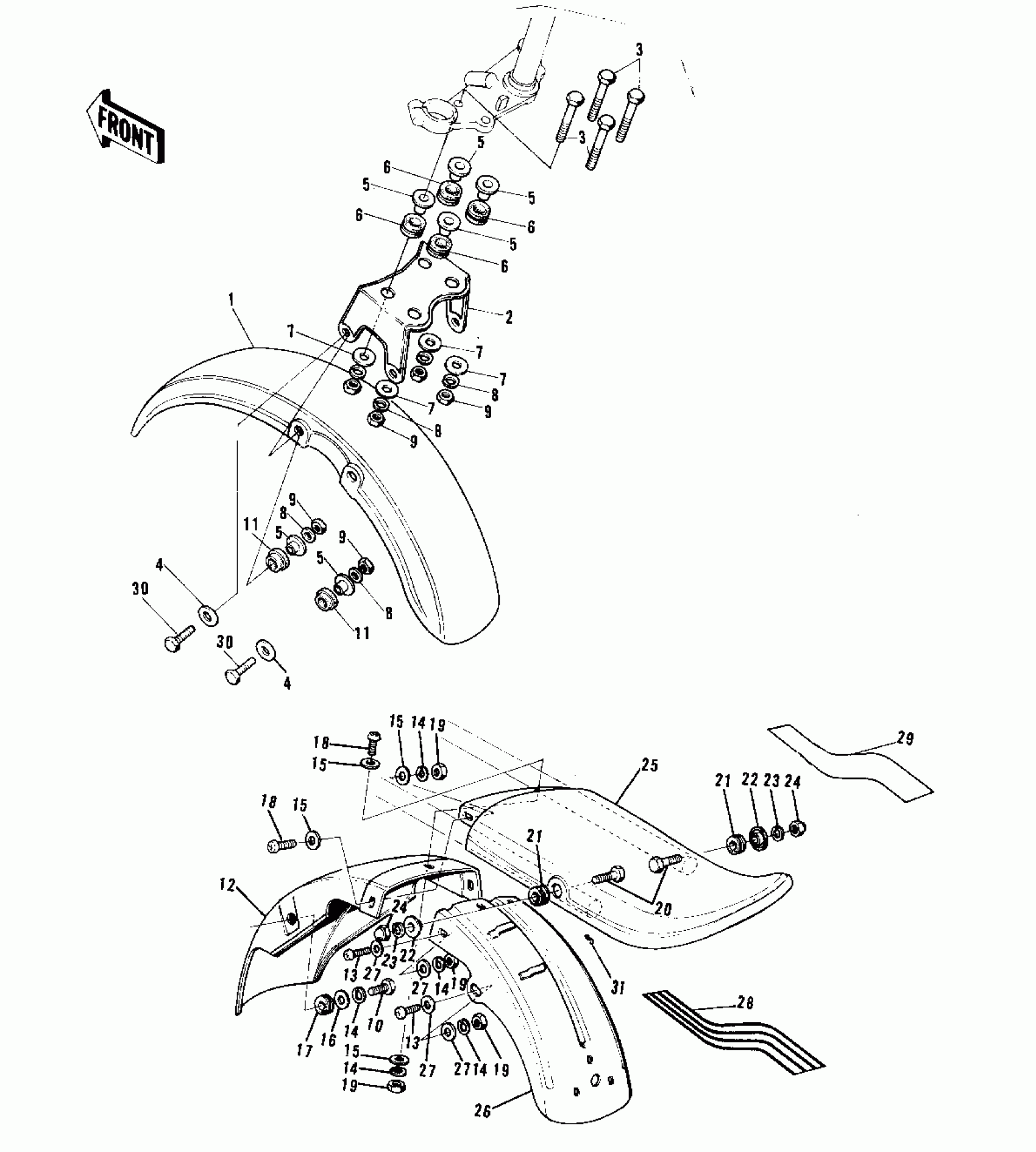

Kawasaki G5-C FENDERS ('72-'73 G5-A) Diagram
#
1
FENDER-FR,YELLOW
35004-063-74
Unavailable
1
FENDER-FR,ORANGE
35004-063-86
Unavailable
1
FENDER-FR,C.BLUE
35004-063-93
Unavailable
2
BRACKET-FRONT FENDER
35012-014
Unavailable
2
BRACKET-FRONT FENDER
35012-018
Unavailable
3
BOLT-UPSET
112G0630
Unavailable
4
WASHER PLAIN
92022-024
Unavailable
5
COLLAR
92027-153
Unavailable
6
DAMPER RUBBER
92075-051
Unavailable
7
WASHER,6.5X20X1.6
92022-125
Unavailable
8
WASHER SPRING 6MM
461F0600
Unavailable
9
NUT 6MM
311B0600
Unavailable
10
BOLT-UPSET,6X16
112G0616
Unavailable
10
BOLT-UPSET,6X16
112G0616
Unavailable
11
DAMPER RUBBER
92075-103
Unavailable
12
FENDER-COMP-REAR,FR
35022-064
Unavailable
13
BOLT-UPSET 6X14
112B0614
Unavailable
13
BOLT-UPSET 6X14
112B0614
Unavailable
14
WASHER SPRING 6MM
461F0600
Unavailable
15
WASHER,6.5X20X1.6
92022-125
Unavailable
16
COLLAR
92027-103
Unavailable
17
DAMPER RUBBER
92075-105
Unavailable
18
SCREW-PAN-CROS,6X14
220B0614
Unavailable
19
NUT 6MM
312B0600
Unavailable
20
BOLT-HEX HEAD,10X46
92007-029
Unavailable
21
DAMPER
92075-104
Unavailable
22
COLLAR
92027-147
Unavailable
23
WASHER SPRING 10MM
461F1000
Unavailable
24
NUT-HEX-FINE,10MM
314B1000
Unavailable
25
COVER-RR FENDER,YELLO
53043-002-74
Unavailable
25
COVER-RR FENDER,ORANG
53043-002-86
Unavailable
25
COVER-RR FENDR,C.BLUE
53043-002-93
Unavailable
26
FENDER-RR
35022-065
Unavailable
26
FENDER-REAR B,FLT BLK
35022-065-21
Unavailable
27
WASHER PLAIN 6MM
411B0600
Unavailable
28
EMBLEM-L.H FENDER COV
56027-086
Unavailable
29
EMBLEM-R.H FENDER COV
56027-087
Unavailable
30
BOLT HEX HEAD 6X18
110N0618
Unavailable
31
CLAMP CABLE
92037-020
Unavailable
