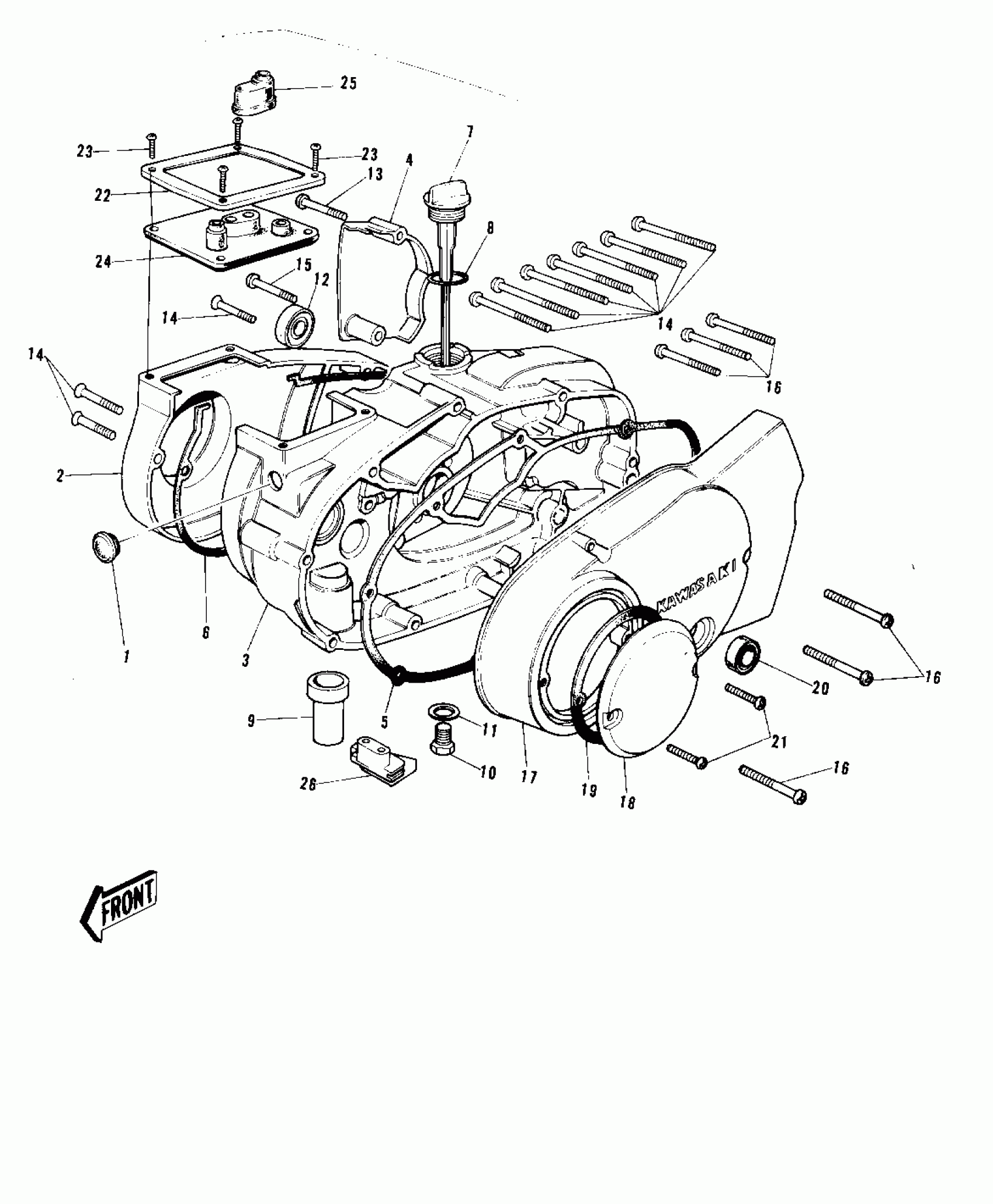

Kawasaki G5-C ENGINE COVERS ('73-'73 G5-A) Diagram

#

Description
Price

1

CAP,RUBBER

14039-001

$3.42

2

COVER-CARBRETR,SILVER

14030-037-15

Unavailable

2

COVER-CARBURETOR,BLK

14030-037-21

Unavailable

3

COVER-R.H ENG,SILVER

14032-072-75

Unavailable

4

COVER OIL PUMP

14030-006

Unavailable

4

COVER OIL PUMP,F.BLK

14030-006-21

Unavailable

5

GASKET,CLUTCH COVER

11060-1198

$25.87

6

GASKET CARB COVER

14048-001

Unavailable

7

CAP-OIL FILLER

16115-018

$8.38

7

CAP-OIL FILLER

16115-018

$8.38

8

"0" RING,OIL FIL PLUG

92055-026

Unavailable

9

DRAIN FUEL

16116-002

Unavailable

10

PLUG,DRAIN,10X12

92067-001

$3.50

11

GASKET,10.5X16X1

92065-058

$3.16

12

OIL SEAL TB14257

653B142507

$19.62

13

SCREW PAN HEAD 6X25

220B0625

Unavailable

14

SCREW PAN HEAD 6X30

220B0630

Unavailable

15

SCREW PAN HEAD 6X35

220B0635

$1.44

16

SCREW PAN HEAD 6X45

220B0645

$1.54

17

COVER-ENGINE,L.H

14031-040

Unavailable

17

COVER-L.H ENGINE,BLK

14031-040-21

Unavailable

18

COVER-BRK POINT,CR

14027-007-79

Unavailable

18

COVER-BRK POINT,CR

14027-007-79

Unavailable

19

GASKET BREAKER COVER

14050-002

Unavailable

20

SEAL-OIL

92049-1249

$8.20

21

SCREW PAN HEAD 6X12

220B0612

Unavailable

22

HOLDER-CARBURETOR CAP

14065-004

Unavailable

23

SCREW PAN HEAD 5X10

220B0510

Unavailable

24

CAP-CARBURETOR

14038-032

Unavailable

25

GROMMET CARB CAP

14038-006

$9.10

26

GROMMET OVERFLOW PIPE

16136-001

Unavailable
