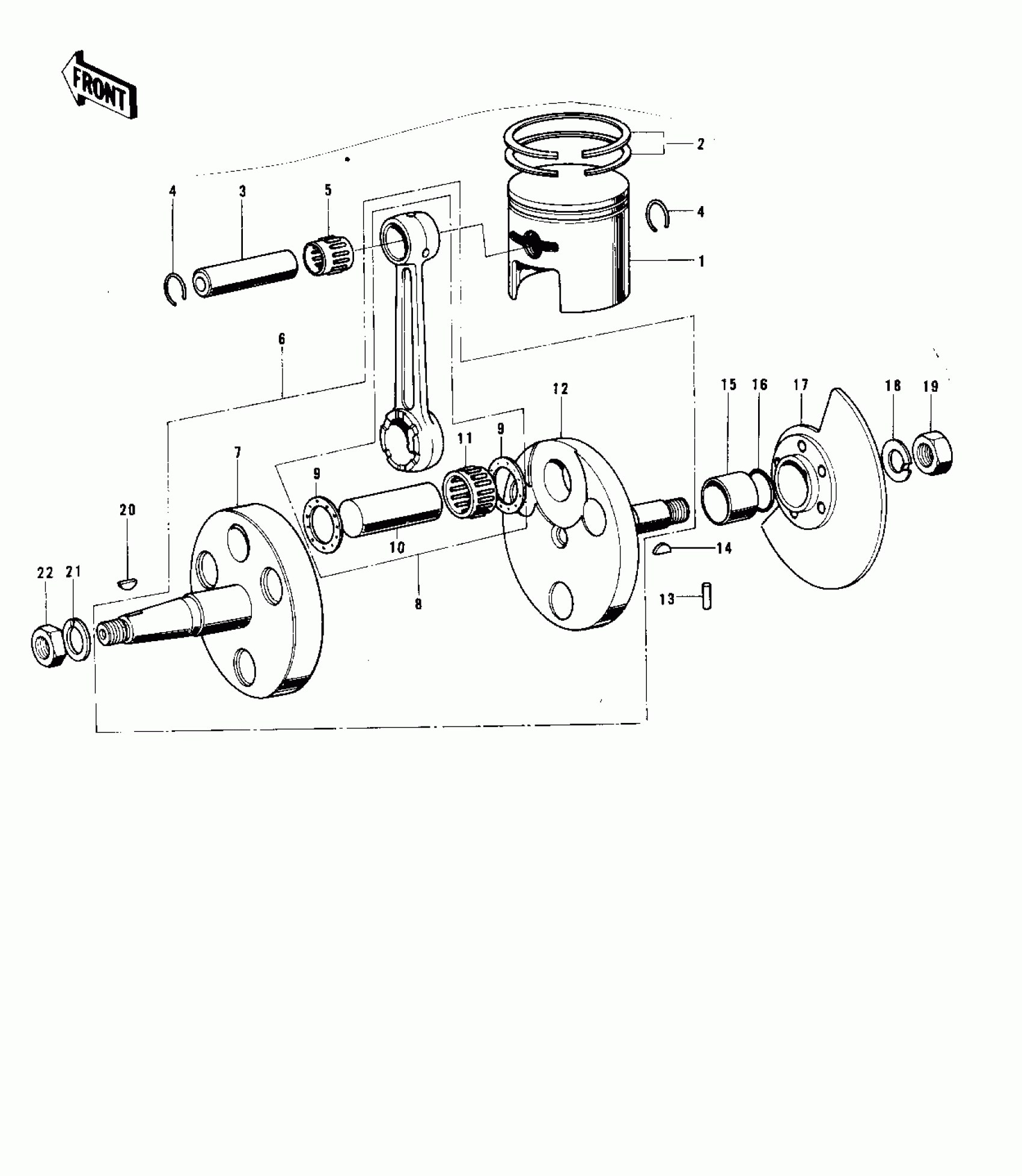

Kawasaki G5-C CRANKSHAFT/PISTON/ROTARY VALVE ('74-'75 Diagram

#

Description

Price

1

PISTON-ENGINE,STD

13001-057

Unavailable

1

PISTON.0.020 O.S

13029-059

Unavailable

1

PISTON,0.040 O-S

13027-057

Unavailable

2

RING SET,STD

13008-043

Unavailable

2

RING NET,0.020 O.S

13025-047

Unavailable

2

RING NET,0.040 O.S

13024-050

Unavailable

3

PIN-PISTON

13002-003

Unavailable

4

RING-SNAP,PISTON PIN

92036-003

Unavailable

5

BEARING-NEEDLE,KTV141817

13033-030

Unavailable

6

CRANKSHAFT-COMP

13036-043

Unavailable

7

CRANKSHAFT,L.H

13037-053

Unavailable

8

SET-CONNECTING ROD

13044-5015

Unavailable

9

SHIM,T=1.0

92025-047

Unavailable

10

PIN-CRANK

13035-025

Unavailable

11

BEARING-NEEDLE,KT192814

13034-034

Unavailable

12

CRANK SHAFT,R.H

13038-049

Unavailable

13

ROLLER,4X10

610A0410

Unavailable

14

KEY,WOODRUFF

92038-003

Unavailable

15

COLLAR CRANKSHAFT

92027-022

Unavailable

16

O RING,16MM

670B2016

Unavailable

17

VALVE ROTARY DISC

12001-004

Unavailable

18

WASHER,CLAW,12.5X25X0.8

92024-003

Unavailable

19

NUT,12MM

92015-006

Unavailable

20

KEY-WOODRUFF

510A3200

Unavailable

21

WASHER SPRING 10MM

461F1000

Unavailable

22

NUT-HEX-FINE,10MM

314B1000

Unavailable
