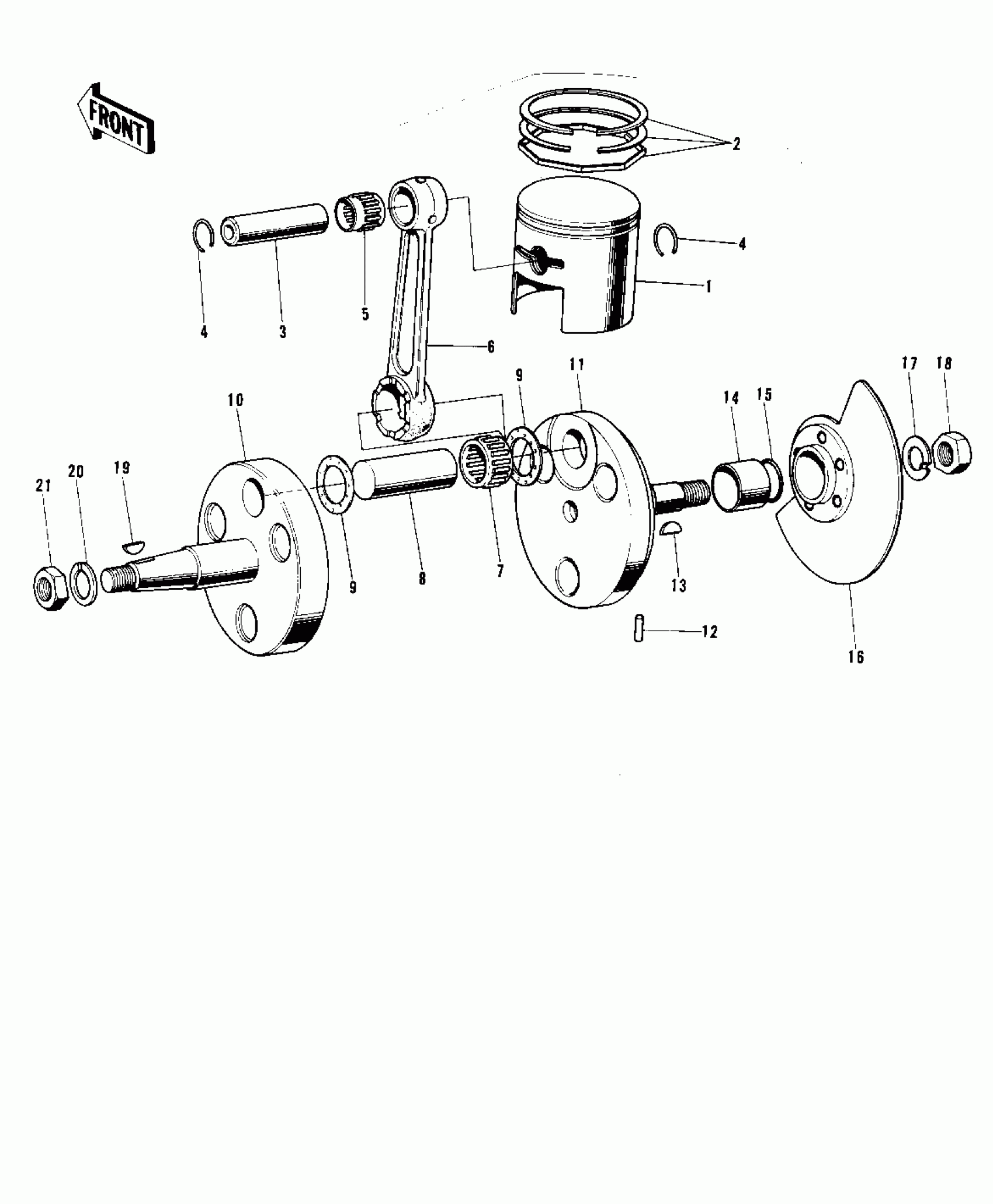

Kawasaki G5-C CRANKSHAFT/PISTON/ROTARY VALVE ('72-'73 Diagram
#
Description
Price
1
PISTON STD
13001-037
Unavailable
1
PISTON 0.020' O.S
13029-036
Unavailable
1
PISTON 0.040' O.S
13027-036
Unavailable
2
RING SET,STD.
13008-035
Unavailable
2
RING SET,0.020'O.S
13025-040
Unavailable
2
RING SET,0.040'O.S.
13024-043
Unavailable
3
PIN
13002-007
Unavailable
4
RING-SNAP,PISTON PIN
92036-007
Unavailable
5
BEARING-NEEDLE,72KTV030
13033-028
Unavailable
6~9
CONNECTING ROD SET
13044-019
Unavailable
6~11
CRANK&CONROD ASSY
13036-034
Unavailable
7
NEEDLE BEARING-BG END
13034-025
Unavailable
8
PIN-CRANK
13035-025
Unavailable
9
SHIM,T=1.0
92025-047
Unavailable
10
CRANKSHAFT,L.H
13037-044
Unavailable
11
CRANKSHAFT,R.H
13038-040
Unavailable
12
ROLLER,4X10
610A0410
Unavailable
13
KEY,WOODRUFF
92038-003
Unavailable
14
COLLAR CRANKSHAFT
92027-022
Unavailable
15
O RING,16MM
670B2016
Unavailable
16
VALVE ROTARY DISC
12001-004
Unavailable
17
WASHER,CLAW,12.5X25X0.8
92024-003
Unavailable
18
NUT,12MM
92015-006
Unavailable
19
KEY-WOODRUFF
510A3200
Unavailable
20
WASHER SPRING 10MM
461F1000
Unavailable
21
NUT-HEX-FINE,10MM
314B1000
Unavailable
