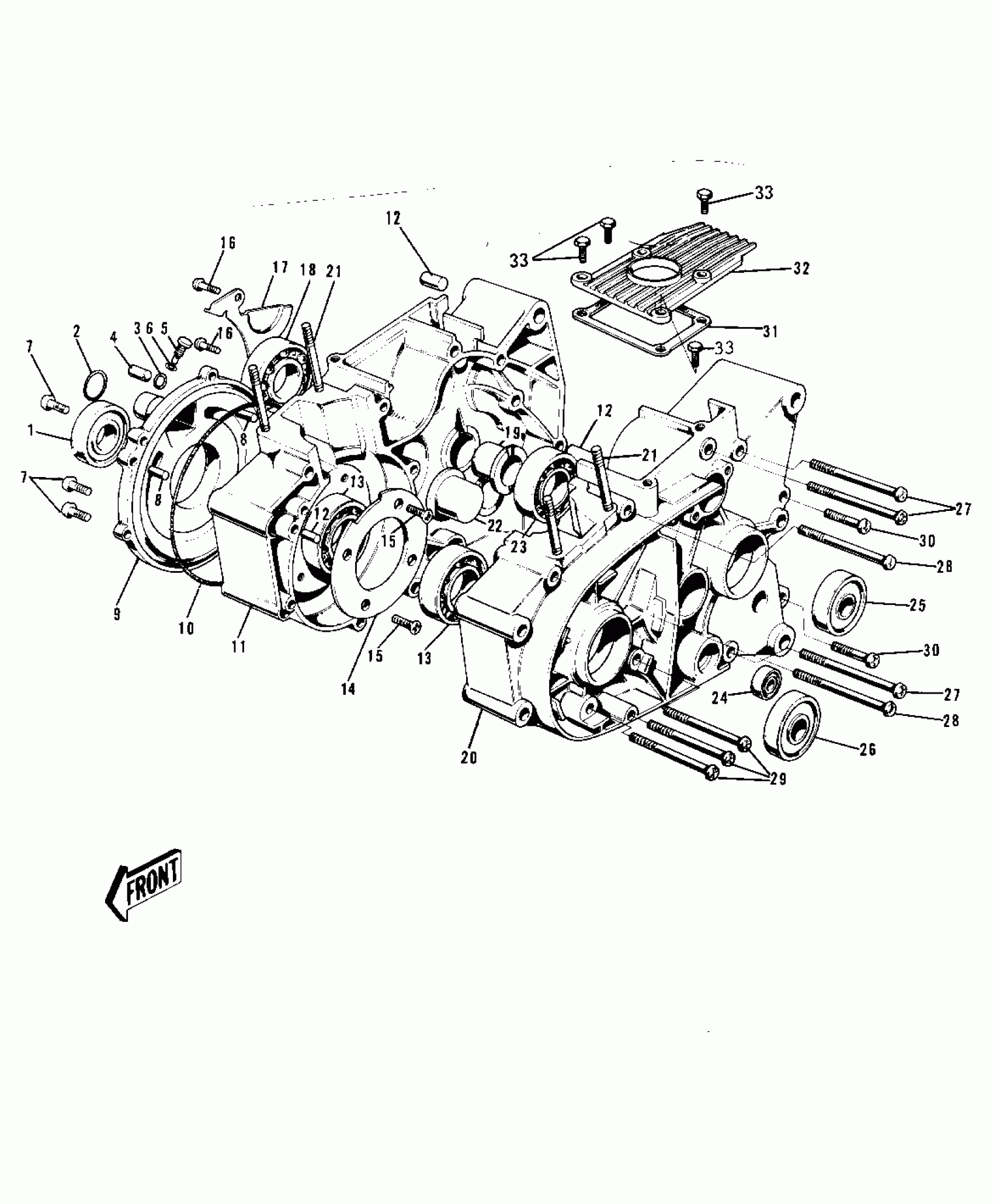

Kawasaki G5-C CRANKCASE ('72-'73 G5-A) Diagram

#

Description
Price

1

SEAL-OIL

92049-1250

$15.40

2

O RING,26MM

670B3026

$4.06

3

RING-O,7.8X3.5

92055-029

$3.65

4

PIN,DOWEL,8X16

92042-017

$5.10

5

NOZZLE OIL INJECTION

92062-004

Unavailable

6

"0" RING,5MM

92055-011

Unavailable

7

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.61

8

ROLLER,5X12

610A0512

$4.53

9

COVER ROTARY DISC VLV

14019-032

Unavailable

10

RING-O,100MM

92055-010

$7.95

11

CRANKCASE SET

14001-024

Unavailable

12

CRANKCASE SET

14001-024

Unavailable

19

CRANKCASE SET

14001-024

Unavailable

20

CRANKCASE SET

14001-024

Unavailable

22

CRANKCASE SET

14001-024

Unavailable

12

PIN DOWEL 8X16

551A0816

$1.14

13

BEARING-BALL,#6204C3

601B6204

$10.76

14

PLATE-POSITION

14014-017

Unavailable

15

SCREW-CSK-CROS,6X16

221B0616

$0.63

16

SCREW PAN HEAD 6X25

220B0625

Unavailable

17

PLATE-POSITION

14014-008

$7.32

18

BEARING-BALL,#6005C3

601B6005

$13.33

19

BUSHING,L=14

92028-069

$37.73

21

BOLT-STUD,8X115

172G08115

Unavailable

22

BUSHING,L=23.5

92028-025

$40.77

23

BEARING-BALL,#6004C3

601B6004

$9.84

24

SEAL-OIL,SB12205

92049-004

$7.95

25

SEAL-OIL,SC25376

92050-013

$11.26

26

SEAL-OIL

92049-1240

$13.34

27

SCREW PAN HEAD 6X65

220B0665

Unavailable

28

SCREW-PAN-CROS,6X60

220B0660

Unavailable

29

SCREW PAN HEAD 6X40

220B0640

Unavailable

30

SCREW PAN HEAD 6X12

220B0612

Unavailable

31

GASKET INLET PIPE

11017-004

Unavailable

32

INLET PIPE,F.BLACK

11015-019-21

Unavailable

32

INLET PIPE,F.BLACK

11015-019-21

Unavailable

33

BOLT-UPSET,6X20

112G0620

Unavailable
