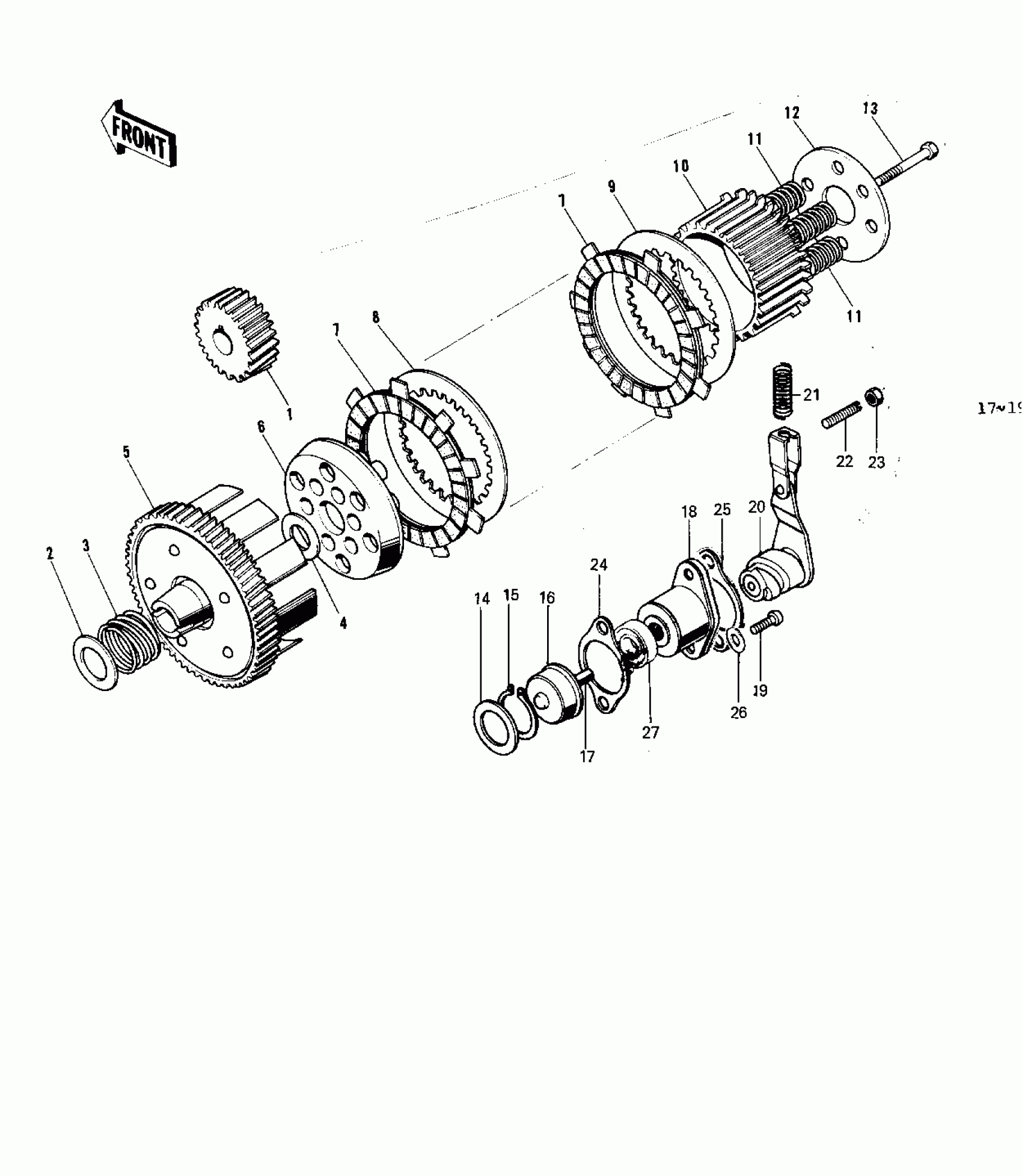

Kawasaki G5-C CLUTCH ('74-'75 B/C) Diagram

#

Description
Price

1

PINION,PRIMARY

13121-032

$95.91

2

WASHER,25.5X36X1

92022-057

$3.92

3

SPRING,CLUTCH DAMPER

92081-015

$5.97

4

WASHER,16.5X27X1.4

92022-054

$8.03

5~13

CLUTCH-ASSY

13081-028

Unavailable

5

HOUSING-COMP-CLUTCH

13095-022

Unavailable

6

WHEEL-CLUTCH

13086-1002

$45.84

7

PLATE-FRICTION

13088-1103

Unavailable

8

PLATE-CLUTCH,STEEL

13089-1009

$11.12

9

PLATE CLUTCH OUTER

13090-004

Unavailable

10

HUB-CLUTCH

13087-1011

$92.86

11

SPRING,CLUTCH

92081-012

$5.44

12

HOLDER,CLUTCH SPRING

13091-1115

$17.20

13

BOLT-UPSET

112G0516

Unavailable

14

WASHER,THRUST,16.5X21X0.8

92022-053

$3.59

15

CIRCLIP-TYPE-C,16MM

480J1600

$3.43

16

PUSHER-COMP-CLUTCH

13113-003

Unavailable

17~19,

RELEASE SET,CLUTCH

13231-013

Unavailable

17

PIN,DOWEL,7X14

610A0714

$2.81

18

RELEASE SET,CLUTCH

13231-013

Unavailable

18

RELEASE-ASSY-CLUTCH

13231-1008

Unavailable

19

SCREW-PAN-CROS,6X16

220B0616

Unavailable

20

RELEASE-ASSY-CLUTCH

13231-1008

Unavailable

21

SPRING,CLUTCH RELEASE

92081-096

$4.51

22

SCREW SLOTTED

291Z0625

Unavailable

22

UNAVAILABLE IN PRICE BOOK

291Z0624

Unavailable

23

NUT 6MM

311B0600

Unavailable

24

GASKET,CLUTCH RELEASE

11060-1197

Unavailable

25

HOLDER

13115-008

Unavailable

26

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

27

SEAL-OIL

92050-071

$8.80
