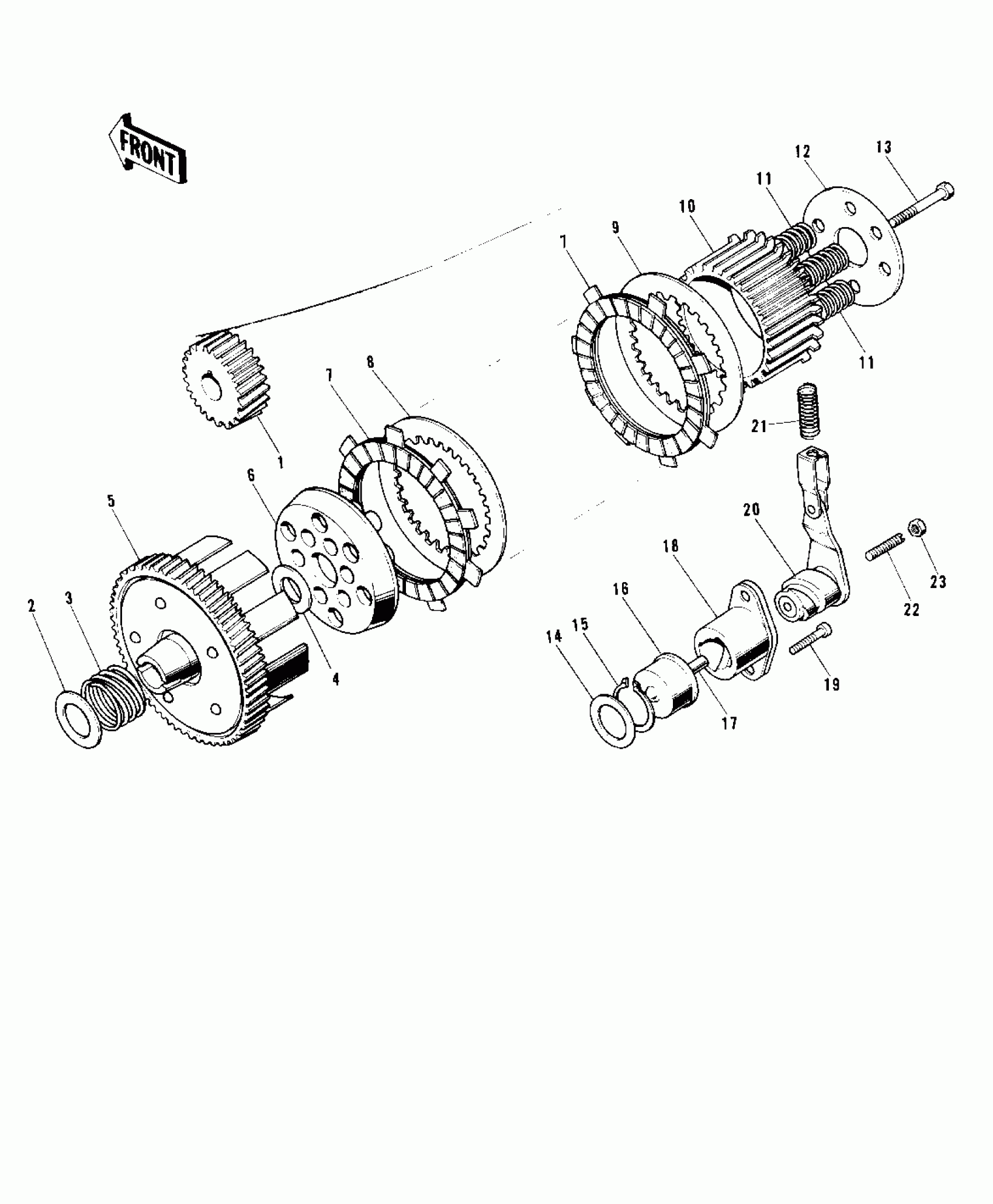

Kawasaki G5-C CLUTCH ('72-'73 G5-A) Diagram

#

Description

Price

1

PINION,PRIMARY

13121-032

Unavailable

2

WASHER,25.5X36X1

92022-057

Unavailable

3

SPRING,CLUTCH DAMPER

92081-015

Unavailable

4

WASHER,16.5X27X1.4

92022-054

Unavailable

5~13

CLUTCH-ASSY

13081-028

Unavailable

5

HOUSING-COMP-CLUTCH

13095-022

Unavailable

6

WHEEL-CLUTCH

13086-1002

Unavailable

7

PLATE-FRICTION

13088-1103

Unavailable

8

PLATE-CLUTCH,STEEL

13089-1009

Unavailable

9

PLATE CLUTCH OUTER

13090-004

Unavailable

10

HUB-CLUTCH

13087-1011

Unavailable

11

SPRING,CLUTCH

92081-012

Unavailable

12

HOLDER,CLUTCH SPRING

13091-1115

Unavailable

13

BOLT-UPSET

112G0516

Unavailable

14

WASHER,THRUST,16.5X21X0.8

92022-053

Unavailable

15

CIRCLIP-TYPE-C,16MM

480J1600

Unavailable

16

PUSHER-COMP-CLUTCH

13113-003

Unavailable

17

PIN DOWEL 7X10

610A0710

Unavailable

18

OUTER CLUTCH RELEASE

13118-001

Unavailable

19

SCREW-PAN-CROS,6X16

220B0616

Unavailable

20

INNER CLUTCH RELEASE

13102-004

Unavailable

21

SPRING,CLUTCH RELEASE

92081-096

Unavailable

22

SCREW SLOTTED 6X28

291Z0628

Unavailable

23

NUT 6MM

311B0600

Unavailable
