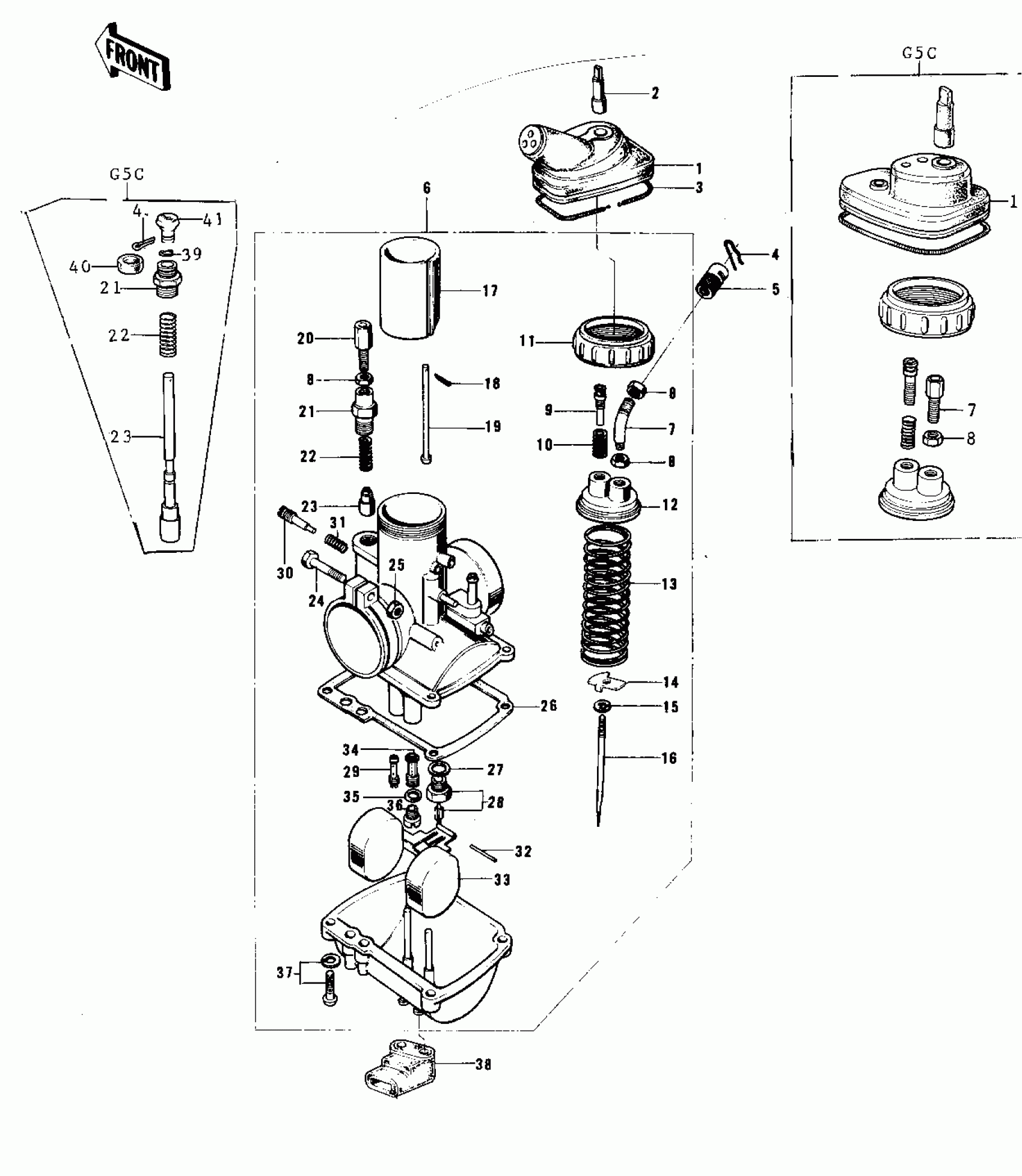

Kawasaki G5-C CARBURETOR ('74-'75 B/C) Diagram
#
1
CAP,CARBURETOR
14038-033
Unavailable
1
BOOT,CARBURETOR
14038-035
Unavailable
2
PLUG,12X40
16147-001
Unavailable
3
SPRING COIL
92081-047
Unavailable
4
RING-SNAP
92036-018
Unavailable
5
CABLE ADJUSTER
16002-007
Unavailable
6
CARBURETOR ASSY
16001-195
Unavailable
6
CARBURETOR ASSY,
16001-230
Unavailable
7
CABLE GUIDE
16077-001
Unavailable
7
CABLE ADJUSTER
16002-002
Unavailable
8
NUT,CABLE ADJUST LOCK
16003-004
Unavailable
8
NUT,CABLE ADJUST LOCK
16003-004
Unavailable
9
SCREW-THROTTLE STOP
16021-002
Unavailable
10
SPRING,THROTTLE STOP SCREW
16022-005
Unavailable
11
CAP-CHAMBER,MIXING
16004-010
Unavailable
12
TOP-CHAMBER,MIXING
16005-005
Unavailable
13
SPRING,THROTTLE VALVE
16006-013
Unavailable
14
SEAT-SPRING,THROTTLE VALVE
16007-020
Unavailable
15
CLAMP,E-TYPE
16008-010
Unavailable
16
NEEDLE-JET,4EJ7
16009-059
Unavailable
17
VALVE-THROTTLE,CA2.0
16025-057
Unavailable
18
PIN COTTER 1.2X10
550D1210
Unavailable
19
ROD,THROTTLE VLV STP
16024-012
Unavailable
20
CABLE ADJUSTER
16002-002
Unavailable
21
CAP STARTER PLUNGER
16012-004
Unavailable
21
CAP-STARTER PLUNGER
16012-021
Unavailable
22
SPRING-PLUNGER
16013-003
Unavailable
22
SPRING,STARTER PLUNGER
16013-010
Unavailable
23
PLUNGER,STARTER
16016-002
Unavailable
23
PLUNGER,STARTER
16016-012
Unavailable
24
SCREW,CLAMP
16010-004
Unavailable
25
NUT 6MM
311B0600
Unavailable
26
GASKET,FLOAT CHAMBER
16019-021
Unavailable
27
GASKET,FLOAT VALVE SEAT
16029-002
Unavailable
28
VALVE-FLOAT,#2.0
16030-001
Unavailable
29
JET-PILOT,#17.5
92064-020
Unavailable
30
SCREW-PILOT AIR
16014-002
Unavailable
31
SPRING,PILOT AIR SCREW
16022-007
Unavailable
31
SPRING,PILOT AIR SCREW
16022-007
Unavailable
32
PIN,FLOAT
16032-003
Unavailable
33
FLOAT
16031-015
Unavailable
34
NEEDLE JET O-Z
16017-068
Unavailable
35
WASHER,MAIN JET
16034-001
Unavailable
36
JET-MAIN,#75R
92063-109
Unavailable
36
MAIN JET,#70R
92063-1012
Unavailable
36
MAIN JET NO 72.5R
92063-108
Unavailable
36
JET-MAIN,#A77.5R
92063-1032
Unavailable
36
JET-MAIN,#A80R
92063-1030
Unavailable
37
SCREW-FLOAT CHAMBER
16033-012
Unavailable
38
GROMMET,OVERFLOW PIPE
16136-007
Unavailable
39
CLAMP
92037-1077
Unavailable
40
BOOT,STARTER PLUNGER
16036-012
Unavailable
41
KNOB,CARBURETOR
92077-022
Unavailable
42
PIN-COTTER,1.6X15
550D1615
Unavailable
