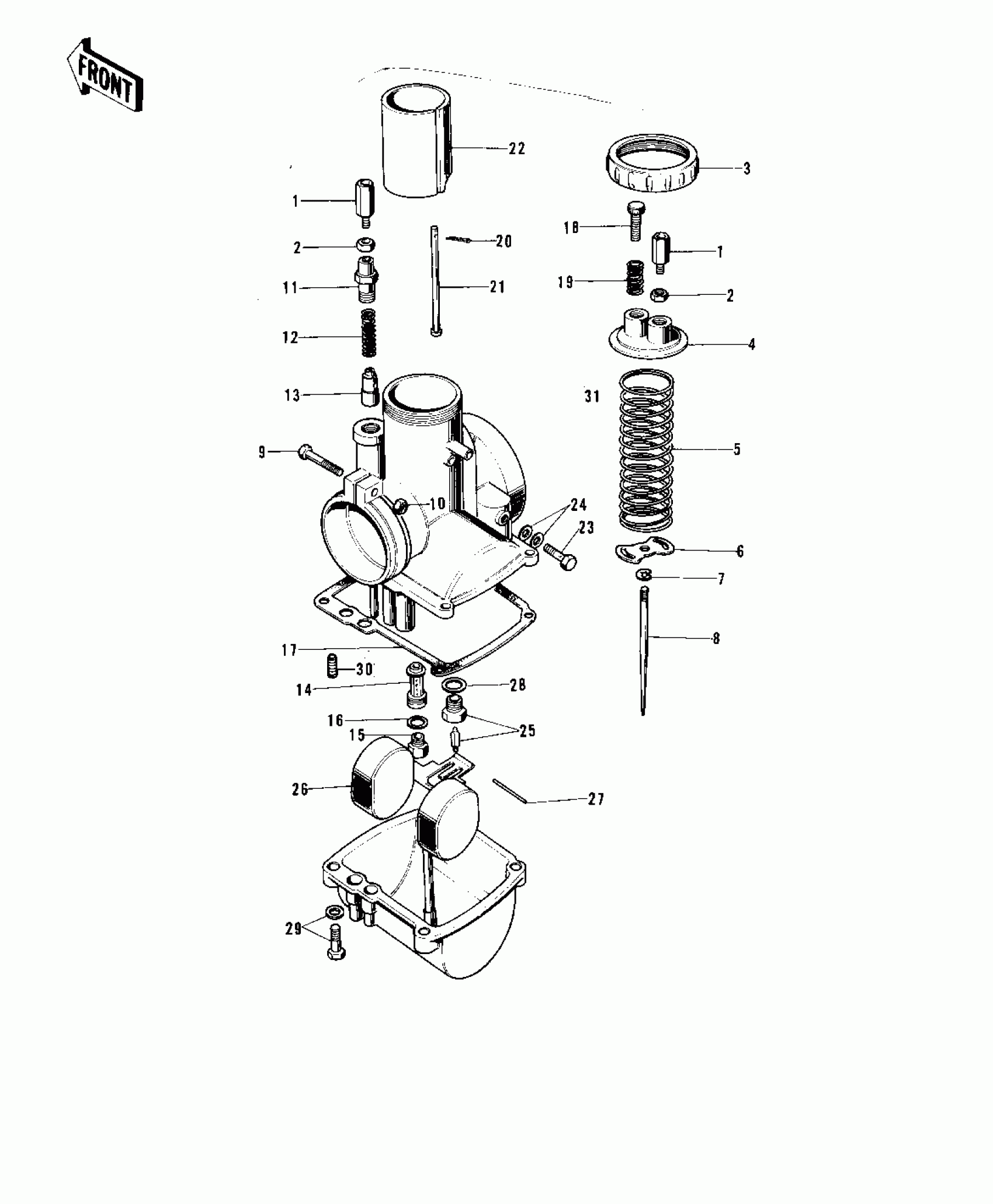

Kawasaki G5-C CARBURETOR ('72-'73 G5-A) Diagram
#
1~29
CARBURETOR ASSY
16001-142
Unavailable
1
CABLE ADJUSTER
16002-002
Unavailable
2
NUT,CABLE ADJUST LOCK
16003-004
Unavailable
3
CAP-CHAMBER,MIXING
16004-010
Unavailable
4
TOP-CHAMBER,MIXING
16005-005
Unavailable
5
SPRING,THROTTLE VALVE
16006-013
Unavailable
6
SPRING SEAT THRTL VL
16007-002
Unavailable
7
CLAMP,E-TYPE
16008-010
Unavailable
8
JET NEEDLE 5J-7
16009-026
Unavailable
9
SCREW,CLAMP
16010-004
Unavailable
10
NUT 6MM
311B0600
Unavailable
11
CAP STARTER PLUNGER
16012-004
Unavailable
12
SPRING-PLUNGER
16013-003
Unavailable
13
PLUNGER,STARTER
16016-002
Unavailable
14
NEEDLE JET E-4
16017-056
Unavailable
15
MAIN JET,#A102.5
92063-1028
Unavailable
15
MAIN JET,#A97.5R
92063-1035
Unavailable
15
MAIN JET,#A100
92063-1033
Unavailable
15
MAIN JET,#A105R
92063-1042
Unavailable
15
JET-MAIN NO 107.5R
92063-073
Unavailable
16
WASHER,MAIN JET
16034-001
Unavailable
17
GASKET FLOAT CHAMBER
16019-012
Unavailable
18
SCREW-THROTTLE STOP
16021-002
Unavailable
19
SPRING,THROTTLE STOP SCREW
16022-005
Unavailable
20
PIN COTTER 1.2X10
550D1210
Unavailable
21
ROD,THROTTLE VLV STP
16024-012
Unavailable
22
VALVE,THROTTLE CA.2.5
16025-054
Unavailable
23
BOLT BANJO
92001-014
Unavailable
24
GASKET 8MM
751P0800
Unavailable
25
VALVE-FLOAT,#2.0
16030-001
Unavailable
26
FLOAT
16031-015
Unavailable
27
PIN,FLOAT
16032-003
Unavailable
28
GASKET,FLOAT VALVE SEAT
16029-002
Unavailable
29
SCREW-FLOAT CHAMBER
16033-012
Unavailable
30
JET-PILOT,#17.5
92064-020
Unavailable
31
CONNECTOR-BANJO
92061-019
Unavailable
